3.
Hardware
Item
Charge Sampler
Conductive Rod
Grounding Port
Introduction

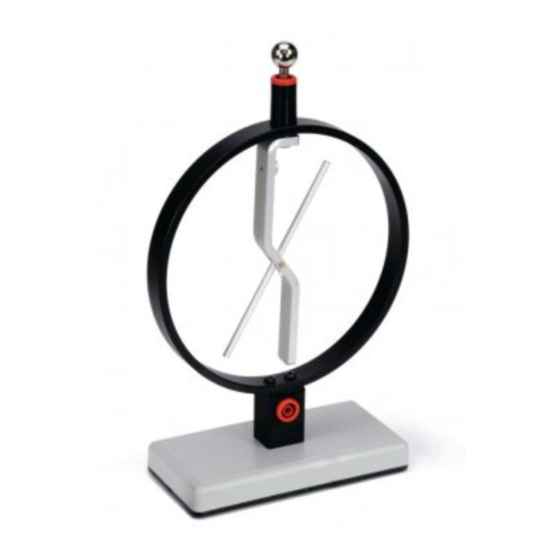

The SF-9069 Electroscope is used for detecting and
demonstrating static electric charge. When the electro-
scope is charged, the lightweight conductive rod rotates to
indicate the magnitude of the charge. The apparatus
includes a Charge Sampler for transferring charge to the
electroscope.
800-772-8700 (US)
www.pasco.com
®
Electroscope
1.
2.
Number
1
2
3
SF-9069
Additional Equipment Recommended
•
Classic Electrostatic Materials Kit SF-9068
•
Banana Plug Patch Cord
1
2. Shrouded Black Patch Cords
•
Shrouded Red Patch Cords EM-9740
•
Shrouded Black Patch Cords EM-9471
Check the PASCO Web page at
Setup and Operation
•
Plug the Charge
Sampler into the top
of the Electroscope.
•
Plug a patch cord
into the Grounding
Port on the base of
the Electroscope.
Connect the patch
cord to something
that is grounded.
I n s t r u c t i o n S h e e t
1. Shrouded Red Patch Cords
www.pasco.com
+1 916 462 8384
support@pasco.com
012-06070B
2
