Summary of Contents for Resol DeltaSol KS

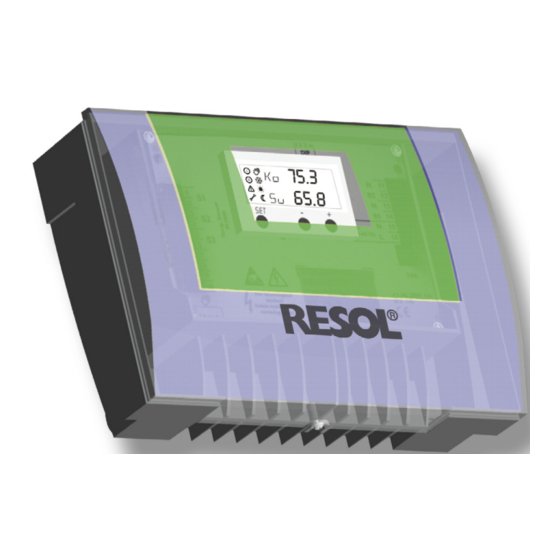

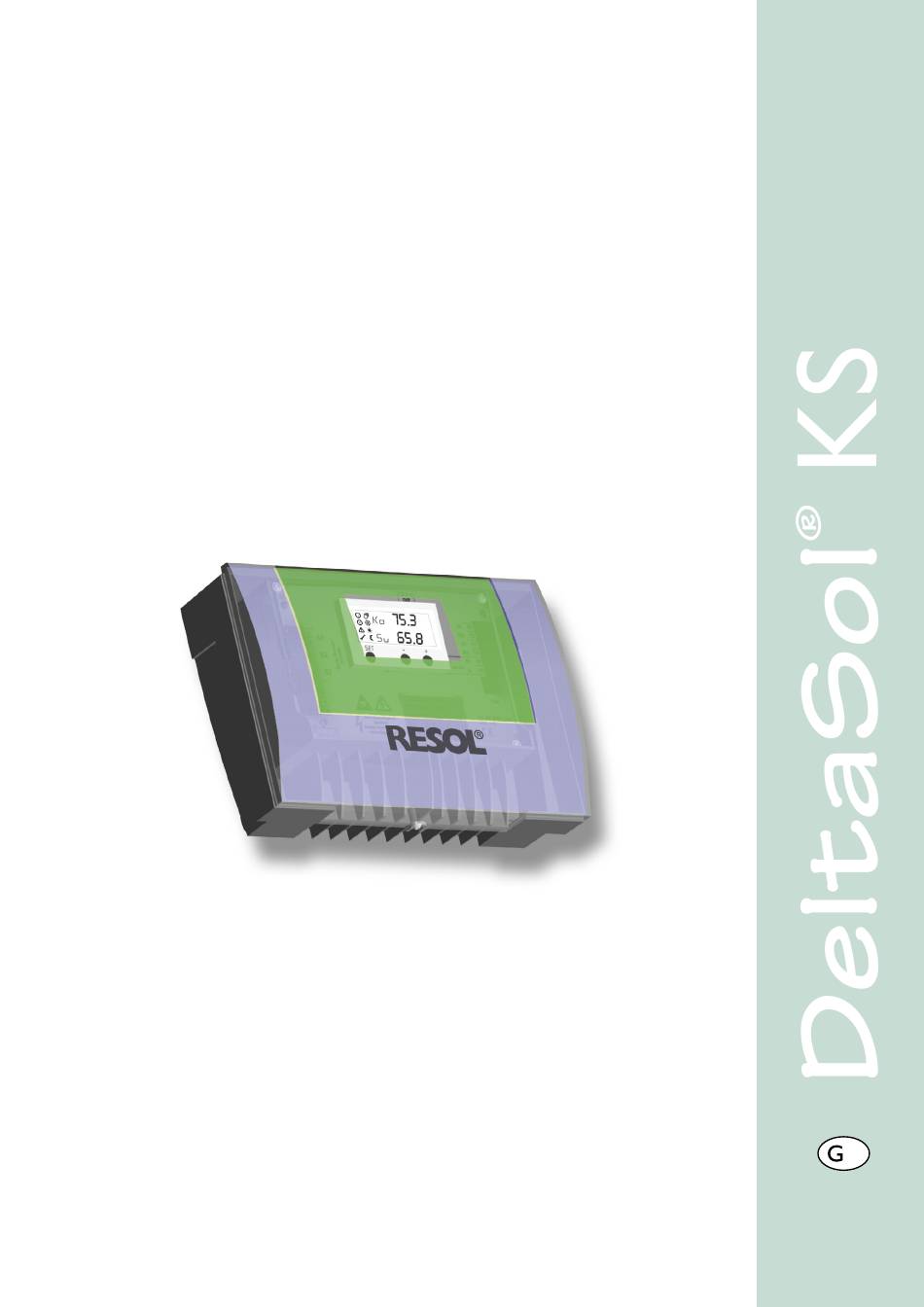

- Page 1 ® RESOL DeltaSol Mounting Connection Operation Fault finding Manual Thank you for buying a RESOL product. Please read this manual carefully in order to put this controller to the best possible use. www.resol.de...
- Page 2 -40 °C...+200°C ideas, print it with a standard colour printer (examples are available on request for free or via internet: www.resol. Temperature limit for the pool Tmax: 10°C ...40°C...
-
Page 3: Safety Regulations
DeltaSol ® Applications of use DeltaSol ® Standard-Solar- Solar-swimming pool system Solar-swimming pool system swimming pool system with valve control with afterheating *Filterpump, external control Safety regulations: Please read the following information carefully before installing and operating the controller.This way damages to the solar system by wrong installation will be avoided. -
Page 4: Electrical Wiring
DeltaSol ® 1.2 Electrical wiring consumer terminals earth terminal block The power supply to the controller must only be effected by an external power supply switch (last step of installation!) and the line voltage must be 210 ... 250 Volt (50...60 Hz). Flexible lines are to be fixed at the housing by enc- losed strain relief supports and screws. -
Page 5: Sensor Types
Please note: In order to avoid damage from overvoltage at the collector (e.g. by lightening), it is highly recommendend to use the FK... : collector sensor FR... : reference sensor (store sensor) RESOL SP1 overvoltage protection. -
Page 6: Equipment Overview
DeltaSol ® 3. Operation 3.1 Equipment overview combined LCD operating control lamp earthed conductor terminal block consumer terminal sensor terminals net terminal operation mode switch fuse cable induction adjustment keys cover plug screw 3.2 Operation mode switch The operation mode switch can be found at the position marked with and enables following adjustments: Relay 1 switched off, symbol... -
Page 7: Function Description
3.5 Function description The RESOL DeltaSol KS controller controlls the tem- ® If the switch-off temperature differential between the feed perature diffence between the absorber and return flow and return flow of the pool is underrun, relay R1 is swit- pool(S1 and S2) temperature and compares this difference ched off.The following switch-on delay (VE) prevents a too... -
Page 8: Start Of Operation
3 0 °C. If the maximum pool temperature is exceeded, symbol is displayed,the operating control lamp flashes green. 3.7 Thermostat function (te, Ta) The RESOL DeltaSol KS controller is equipped with a ® 2nd relay for a thermostat function.The thermostat function s is operated independendently from the solar operation and can be e.g. -
Page 9: Line Break
DeltaSol ® 5. Tips for fault finding Please check the following points if the DeltaSol ® controller does not work faultlessly. 1. Power supply If the operating control lamp is off, please check the power supply of the controller. The controller is protected by one can fuse T4 A which is placed at the base/isolation plate and can be replaced by opening the cover of the housing (spare fuse is enclosed in one of the accessory bags). -
Page 10: Application Examples
DeltaSol ® 6. Application examples 6.1 Standard solar swimming pool system The controller measures the temperature difference bet- ween absorber sensor S1 and return flow pool sensor S2.As soon as the difference is bigger than or equals the set value for the switch-on temperature differential (DE), the pump (R1) will be switched on and by this the swimming pool will be loaded until the switch-off temperature differential (DA) - Page 11 DeltaSol ® 6.2 Solar swimming pool system with afterheating The controller measures the temperature difference bet- ween absorber sensor S1 and return flow pool sensor S2. As soon as the difference is bigger than or equals the set value for the switch-on temperature differential (DE), the pump (R1) will be switched on and by this the swimming pool will be loaded until the switch-off temperature dif- ferential (DA) or the maximum pool temperature (MX) is...
-
Page 12: Your Specialist Dealer
DeltaSol ® RESOL - Elektronische Regelungen GmbH Heiskampstraße 10 D - 45527 Hattingen Tel.: +49 (0) 23 24 / 96 48 - 0 Fax: +49 (0) 23 24 / 96 48 - 55 www.resol.de info@resol.de Your specialist dealer: Notes Design and specifications are subject to change without notice.
