Dacor DO Planning Manual

Document # PG01-008
Product tolerances: ±1/16" (±1.6 mm) unless otherwise stated
L
J
C
MODEL DO230
K
Control panel
front
Chassis Notch
Side View
(F) Utility
Cutout Width
5"
(12.7 cm)

Specifications subject to change without notice.

All manuals and user guides at all-guides.com
Double, Distinctive ™
B
Utility
cutout
A
Top of
E
chassis
M
(A) Overall (B) Chassis
Width
29 3/4"
(75.6 cm) (72.1 cm)
* To top of chassis notch behind control panel
(G) Utility (H) Utility
Cutout Height Cutout Depth
5 ¼"
(13.3 cm) (15.2 cm)
Dedicated Circuit
Requirements
240 Vac 60 Hz.,
4-wire,** 40 Amp.
** Two 120 Vac hot (L1 and L2), one neutral, one ground.
The above specifications are for reference only. See the
appliance data plate for exact specifications.
DO

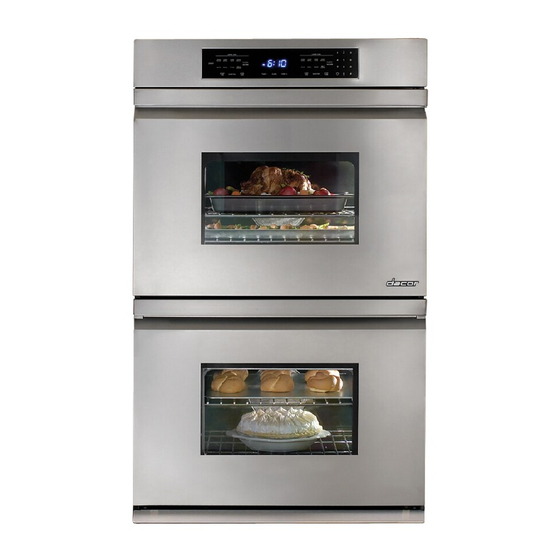

Wall Oven
Top of
• Observe all governing codes and ordinances during planning
chassis
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
F
accompanying installation instructions.
G
H
D
Conduit:
60" (152 cm)
Long
(C) Overall (D)* Chassis
Width Height Height
28 3/8" 49 15/16" 49 1/16"
(126.8 cm) (124.6 cm)
(J) Control (K) Notch
Panel Depth
6" 1"
(2.5 cm)

ELECTRICAL SPECIFICATIONS

Total Connected Load
7.8 kW (33 Amp.)
www.dacor.com
WARNING
(E) Control
Panel
Overlay
15/16"
(2.4 cm)
(L) Chassis
Depth Depth
1 5/8" 24"
(4.1 cm) (61.0 cm)
Revised 10/01/11 Page 1/2
PLANNING
GUIDE
21 1/8"
(53.7 cm)
(M) Notch
Height
1"
(2.5 cm)
1.7
