Installation Instructions

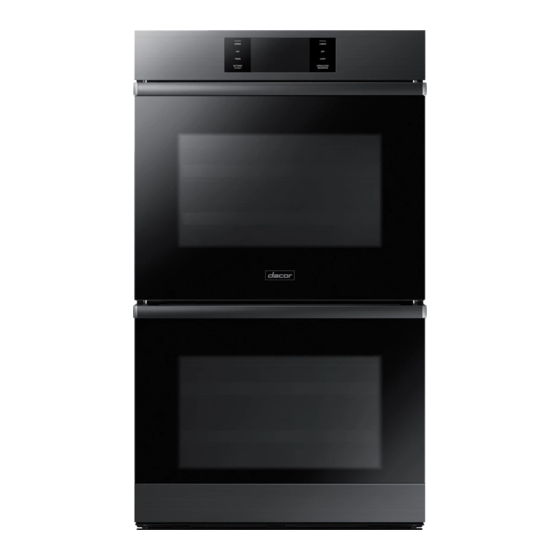

Modernist Built-In Electric Wall Oven
DOB30M977**
Part No. 112174 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOB30M977D series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor DOB30M977D series

Summary of Contents for Dacor DOB30M977D series

  • Page 1 Installation Instructions Modernist Built-In Electric Wall Oven DOB30M977** Part No. 112174 Rev A...

  • Page 2: Table Of Contents

    Contents Before you begin... Important Customer-service information If You Need Help... Important safety instructions Related equipment safety Transport Installation requirements Checklist Prepare to install the oven Location requirements Single ovens Double ovens Installation instructions Prepare built-in oven Remove and replace oven door(s) Electrical connection Install oven Self-diagnosis...

  • Page 3: Before You Begin

    Before you begin... Important Installer • For safety and to minimize problems, read this manual thoroughly before starting the installation. • Leave this manual with the user. • Write the oven’s model/serial numbers in this manual for service/ maintenance reference. User •...

  • Page 4: Customer-Service Information

    Customer-service information If You Need Help... If you have questions or problems with installation, contact your Dacor® dealer or the Dacor Customer-Service team. If your Dacor appliance is under warranty, call Dacor Distinctive Service. Have the appliance’s model/serial numbers available when you call.

  • Page 5: Important Safety Instructions

    Important safety instructions Related equipment safety Remove all tape and packaging before using the appliance. Dispose of the packaging after unpacking the appliance. Never let children play with packaging material. Never modify the oven (e.g., do not remove panels, wire covers, or screws). Transport To avoid damage to the oven vent, use the transport method shown in the picture below.
  • Page 6 Important safety instructions WARNING • The information in this manual should be followed exactly to avoid fire or electrical shock that may cause property damage, personal injury, or death. • Save this manual for local electrical inspector’s use. • Ensure your appliance is properly installed and grounded by a qualified technician. •...
  • Page 7 WARNING Follow the information in this manual exactly; otherwise, fire or electrical shock may result causing property damage, personal injury, or death. IMPORTANT NOTE The installer shall ensure proper installation. Product failure due to improper installation is NOT covered under warranty. WARNING DO NOT put weight on the oven door.

  • Page 8: Installation Requirements

    Installation requirements Checklist Use this checklist to verify that you have completed each step of the installation process Before installing the oven, verify the cabinet dimensions are correct and the required electrical connections are present. See this manual's content regarding Safety, Cabinet Dimensions, Removing Packaging, Electrical Installation, Testing the Installation and Customer Service.

  • Page 9: Prepare To Install The Oven

    Prepare to install the oven Phillips Screwdriver Drill Prepare to install the oven 6 screws (M4 L16) 6 Wood Screws For Mounting (4 needed for installation and 2 extra’s) Materials needed Junction Box Wire Nuts ” Conduit Connector Install Handle (only for double oven) English 9...

  • Page 10: Location Requirements

    Installation requirements Location requirements Observe all governing ordinances IMPORTANT: Specified cabinet-opening dimensions are minimums and must be used. • The cabinet recess must completely enclose all but the face of the oven. • A grounded electrical supply is required. (See Electrical Requirements.) •...

  • Page 11: Single Ovens

    Single ovens Product dimensions DIMENSION ” (73.1 cm) Overall height (Recessed height in Flush installation) ” (72.4 cm) Recessed width 271/5” (69.1 cm) Recessed height 231/8” (58.7 cm) Recessed depth _Standard installation ” (62.0 cm) Recessed depth _Flush installation ” (75.6 cm) Door width ”...
  • Page 12 Installation requirements Standard cabinet dimensions Under counter 01 Gas or Electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of approved cooktop models. 02 Gas and Electrical Connections for Gas Cooktop Must be Located in an Adjacent Accessible Location to the Right.
  • Page 13 Wall Mount 01 Junction Box 02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when door is open. 22” Cabinet DIMENSION 30” (76.2 cm) Min. 1 ” (3.5 cm) Min. 31” (Min 78.7 cm) Min. 28 ”...
  • Page 14 Installation requirements Flush cabinet dimensions Under counter 01 Gas or Electric cooktops may be installed over this oven. See cooktop installation instructions for cutout size. See label on top of approved cooktop models. 02 Gas and Electrical Connections for Gas Cooktop Must be Located in an Adjacent Accessible Location to the Right.
  • Page 15 Cleat dimensions Front view Side view Cabinet DIMENSION Min. 281/2” (Min. 72.4 cm) Distance 29” (73.7 cm) Height Min. 224/5” (Min. 57.9 cm) Distance 4/5” (2 cm) Width ” (1.8 cm) Depth ” (3.3 cm) Distance English 15...
  • Page 16 Installation requirements Wall Mount 01 Junction Box 02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when door is open. 22” Cabinet DIMENSION Min. 30 ” / Max. 30 ” (Min. 76.7 cm / Max. 76.9 cm) Min.
  • Page 17 Cleat dimensions Front view Side view Cabinet DIMENSION Min. 281/2” (Min. 72.4 cm) Distance 29” (73.7 cm) Height Min. 224/5” (Min. 57.9 cm) Distance 4/5” (2 cm) Width 7/10” (1.8 cm) Depth 13/10” (3.3 cm) Distance English 17...

  • Page 18: Double Ovens

    Installation requirements Double ovens Product dimensions DIMENSION 511/2” (130.7 cm) Overall height (Recessed height in Flush installation) ” (72.4 cm) Recessed width 497/8” (126.7 cm) Recessed height 231/8” (58.7 cm) Recessed depth_Standard installation ” (62.0 cm) Recessed depth_Flush installation ” (75.6 cm) Door Width 67”...
  • Page 19 Standard cabinet dimensions 01 Junction Box 02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when door is open. 22” Cabinet DIMENSION 30” (76.2 cm) Min. 1 ” (3.0 cm) 12” (30.5 cm) Min. 28 ”...
  • Page 20 Installation requirements Flush cabinet dimensions 01 Junction Box 02 Allow a minimum of 22” for clearance to adjacent corners, drawers, walls, etc. when door is open. 22” Cabinet DIMENSION Min. 30 ” / Max. 30 ” (Min. 76.7 cm / Max. 76.9 cm) Min.
  • Page 21 Cleat dimensions Front view Side view Cabinet DIMENSION Min. 281/2” (Min. 72.4 cm) Distance 514/5” (131.6 cm) Height Min. 224/5” (Min. 57.9 cm) Distance 4/5” (2 cm) Width 7/10” (1.8 cm) Depth 13/10” (3.3 cm) Distance English 21...
  • Page 22 Installation requirements If codes permit and a separate ground wire is used, a qualified electrician should verify that the ground path and the wire gauge comply with local codes. Check with a qualified electrical installer if you are unsure the oven is properly grounded. This oven must be connected to a grounded, metal permanent wiring system.
  • Page 23 Electrical Connection For proper installation, you must determine the type of electrical connection you will use and follow the directions in this manual. • The oven must be connected to the proper electrical voltage and frequency as given on the model/serial/rating plate, which is on the bottom-left door trim. Model/serial/ rating plate Model/serial/...
  • Page 24 Installation requirements • Flexible conduit from the oven should be connected directly to the junction box and both sides of the line fused. • Do not cut the conduit. The oven should be removable for service without disconnecting the conduit. •...

  • Page 25: Installation Instructions

    Installation instructions Prepare built-in oven WARNING Avoid personal injury and property damage. Use at least two people to move/install the oven. Decide on the oven's installation site. Take care not to drill/cut into house wiring. To avoid flooring damage, set the oven on cardboard prior to installation. Do not lift by the door handle or front frame.

  • Page 26: Remove And Replace Oven Door(S)

    Installation instructions Remove and replace oven door(s) IMPORTANT: Remove the oven door(s) with two hands. Before removing the door, cover a flat surface with a soft blanket (or use the corner posts from your packaging material) on which you will place the door(s). Disconnect the LED wire harness Before removing the door, disconnect this harness.
  • Page 27 Remove oven door(s) Open the oven door. Find the oven door-hinge locks on both sides of the oven door; flip the locks 90° outward to unlock them (B, left). If the lock is not fully out, the door will not remove properly. inge lock in locked position inge lock in unlocked position 3.
  • Page 28 Installation instructions Replace oven door(s) CAUTION The door is very heavy. You may need help lifting the door high enough to slide it into the hinge slots. Do not lift the door by the handle. With two hands, grasp each side of the door below the handle, and face the oven chamber.
  • Page 29 Open the door fully. If the door does not open 90°, repeat Steps 1 – 3. Flip the hinge locks 90° inward to lock them. [See graphic A in Remove oven door(s), Step 1 for the locked position.] Close the oven door. (With the hinges properly installed and the door closed, there is an even gap between the door and the control panel.

  • Page 30: Electrical Connection

    Installation instructions Electrical connection Double Ovens WARNING Electric Shock Hazard Disconnect power before servicing. • Use 8-gauge solid copper wire. • Make sure the oven is grounded. • Failure to follow these directions can result in electric shock, fire, or death. •...
  • Page 31 Electrical Connection Options Chart If your home has: Go to section: 4-wire 4-Wire Cable from Home Power Supply 1/2" ½” (1.3 cm) 1.3 cm 3-wire 3-Wire Cable from Home Power Supply 1/2" ½” (1.3 cm) 1.3 cm Single Ovens WARNING Electrical Shock Hazard Disconnect power before servicing.
  • Page 32 Installation instructions 4-Wire Cable from Home Power Supply Use the home power supply's 4-wire cable in: IMPORTANT: • The US (where local codes do not allow neutral grounding) • New branch circuit installations (1996 NEC) • Mobile homes and recreational vehicles •...
  • Page 33 3-Wire Cable from Home Power Supply - U.S. Only IMPORTANT: Use the 3-wire cable from home power supply where local codes permit a 3-wire connection. Connect the 2 black wires (C) with a UL-listed wire connector. Connect the 2 white wires (D) and the oven's green (bare) ground wire with a UL-listed wire connector.

  • Page 34: Install Oven

    Installation instructions Install oven 1. Hang the install handles on the oven's side hook, and with 2 or more people, lift the oven partway into the cutout 2. Remove the install handles. Install Handle 3. Carefully pushing on its front frame, slide the oven into the cutout until the back of the front frame touches the cabinet face or (for a flush install)
  • Page 35 Center the oven side to side, and remove the tape from the front trim. • Align holes in the trim with holes in the frame, and with the provided screws, fasten the oven to the cabinet (snugly but not over tight.) WARNING Take care not to damage the barrier underneath.

  • Page 36: Self-Diagnosis

    Error code Remark Upper Broil Double/Single Oven Upper Bake Feature Lower Broil Double Oven Only Lower Bake If an error occurs, contact a Samsung service center for further service. NOTE Please contact a Dacor service center. call e.g. 1-800-DACOR (793-0093) English...
  • Page 37 Memo...
  • Page 38 Memo...
  • Page 39 Memo...
  • Page 40 DG68-00923A-00 Dacor ∙ 14425 Clark Avenue, City of Industry, CA 91745 ∙ Phone: (800) 793-0093 ∙ Fax: (626) 403-3130 ∙ www.dacor.com...
