RIOTEC iLS6303ABQ Programming Quick Manual

P r o g r a m m i n g Q u i c k G u i d e
- i L S 6 3 0 3 A B Q / i L S 6 3 0 3 A B M

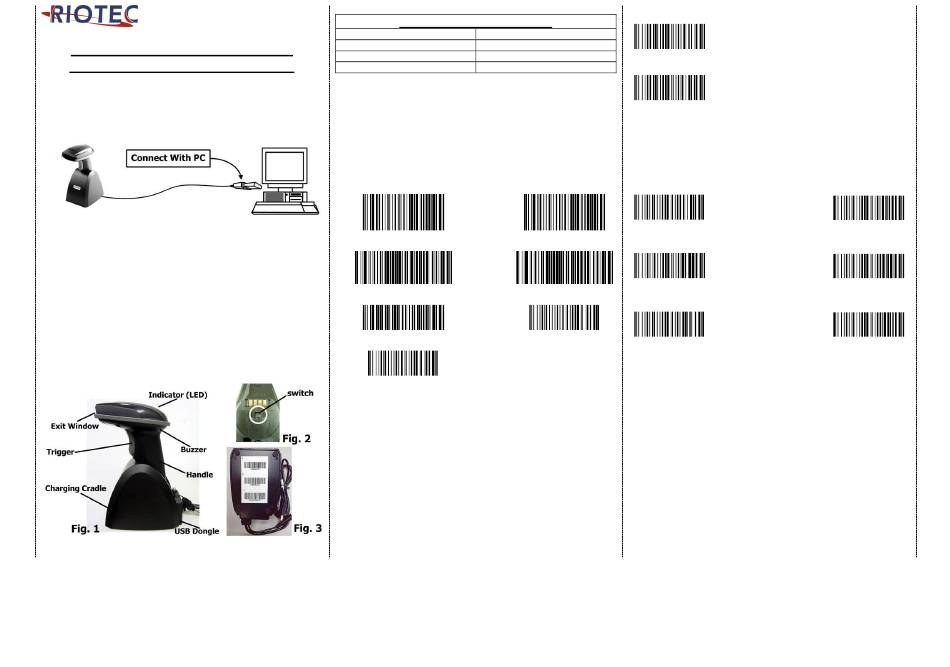

Connecting the Scanner
Be sure that PC is turned OFF, before Connect scanner cable to
the PC USB port on the PC as below described, Ensure that all
connections are ready, and turn on your PC.
1. Please switch ON and charge scanner for 4~5 hours at first time
before use. Scanner switch shown on Fig. 2.
2. After switch ON, the Orange LED will flash following with 3
beep-sounds. The RED LED will be OFF while it links to cradle
within Bluetooth radio range.
3. If RED LED is continual ON, please re-plug USB cable, then, scan
the 3 barcodes on the bottom of cradle sequentially. (Shown on
Fig. 3 From 1 to 3).
4. Charging issue: Cradle works as charger when putting scanner on
it. Even if the scanner's battery is full, the cradle will continue to
supply power to the scanner. We suggest you to remove scanner
from cradle when scanner is charged fully
* Note: Please install PL-2303 driver for iCR6303ABM
LED Indicator Information
Orange LED ON Full charged
Orange LED Flashing Charging / Low battery
Red LED ON Offline / out of service
Green LED ON Good read
Remark:
* When the battery power is too low, the Orange LED will flash and beep once.
Scanner should be charged immediately.
* If scanner shuts down it is recommended to charge it fully before turning it
back on.
* Under power-saving mode, there will not be LED indication when charging.
Reset Configuration to Defaults
(scan from A1 to A4 for iCR6300ABQ or B1 to B3 for iCR6300ABM)
iCR6303ABQ
A1 B1
DEFALT.
A2 B2
A3 B3
A4
* Note: Please install PL-2303 driver for iCR6303ABM
1
Trigger Mode
Transmission Speed
Demo
Transmission speed is dependent on your device. In order not to lose
iCR6303ABM
data, please choose the correct speed. Middle-speed is the Default.
High-speed
%B%T%H
Transmission
Demo Middle-speed
Transmission
(Default)
Slow-speed
%D%F%T
Transmission
Trigger always
(Trigger available at any time)
Trigger standard (Default)
(Trigger available, after data sent to the
device)
Ultra Slow-speed
1 transmission
Ultra Slow-speed
2 transmission
Ultra Slow-speed
3 transmission
