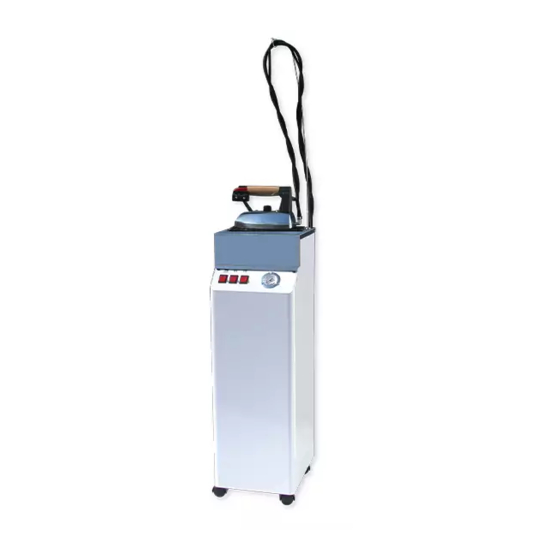

Iron with boiler and automatic water recharging system
Bieffe is promoter of the initiative PERCHÉ BUTTARE?
that encourages reconditioning as alternative to consumption
Bieffe S.r.l. | Via Costa Fagnano 3, 61122 Pesaro (PU), Italy | T +39 0721281857 | F +39 0721281880 | info@bieffeitalia.it | www.bieffeitalia.it
USE AND MAINTENANCE MANUAL
AUTOMATIC VAPOR
COD. BF048
TECHNICAL
ASSISTANCE VIDEOS
VAT IT02078000417 | Reg. AEE IT0805000000 | Cap. Soc. € 84.200,00
®
(Why throwing away?)
BIEFFE
PRODUCTS VIDEOS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bieffe BF048
Summary of Contents for Bieffe BF048
- Page 1 TECHNICAL BIEFFE ASSISTANCE VIDEOS PRODUCTS VIDEOS Bieffe S.r.l. | Via Costa Fagnano 3, 61122 Pesaro (PU), Italy | T +39 0721281857 | F +39 0721281880 | info@bieffeitalia.it | www.bieffeitalia.it VAT IT02078000417 | Reg. AEE IT0805000000 | Cap. Soc. € 84.200,00...
-
Page 3: Table Of Contents
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL INDEX 1. CONTENTS OF THE PACKAGE ................4 1.1 OPTIONS AVAILABLE ........................5 2. OPERATING AND SAFETY INSTRUCTIONS ............6 2.1 DISPOSAL OF THE DEVICE ........................ 7 2.2 PLAQUES AND PICTOGRAMS ......................8 2.3 IDENTIFICATION PLATE (MODEL) ..................... 8 3. -
Page 4: Contents Of The Package
In case of mismatch, you must immediately inform Bieffe srl. For any contact with Bieffe srl, with its service centers or dealers, please refer to the type of machine, serial number (eg Mod AUTOMATIC VAPOR Cod BF048 n.serial ...) applied to the back of the machine. -
Page 5: Options Available
AR115 BF011 “SPEEDY” STEAM BRUSH 500W SLEEVEBOARD AR25 AR252V 1 WAY ROUND STEAM GUN 2 WAYS ROUND STEAM GUN IRON CLEANING STICK SIMPLE TEFLON BASE BIEFFE/ TULIPANO AR8P AR8S BIEFFE ARMORED TEFLON EDGED TEFLON BASE BIEFFE/ BASE TULIPANO AR14 AR29... -
Page 6: Operating And Safety Instructions
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 2. OPERATING AND SAFETY 14. Any type of maintenance and/or cleaning must be performed with the machine off, cooled and INSTRUCTIONS unplugged. 15. Use only original spare parts and accessories. ATTENTION: 16. Installation, maintenance and repairing ope- Before using the machine, please read care- rations must be performed solely by qualified fully all the safety and operating instructions... -
Page 7: Disposal Of The Device
33. Keep the packaging also for the eventual transport to the authorized technical assistance service. BIEFFE IS NOT RESPONSBILE FOR DIRECT OR INDI- RECT DAMAGES TO PEOPLE, THINGS OR ANIMALS FOLLOWING THE DISREGARD OF THE REQUIREN- MENTS INCLUDED IN THIS MANUAL. -
Page 8: Plaques And Pictograms
2.3 IDENTIFICATION PLATE (MODEL) Bieffe Srl Strada Costa Fagnano,3 Loc. VILLA FASTIGGI 61122 PESARO ITALY AUTOMATIC VAPOR MODEL COD BF048 SERIAL NO. POWER SUPPLY 230V 60 Hz BOILER POWER 900W + 900W OPERATING PRESSURE 3 BAR... -
Page 9: Warranty Terms And Conditions
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 3. WARRANTY TERMS AND CONDITIONS 4. TECHNICAL DATA The purchased appliance is covered by a legal war- Power 230V – 50/60 Hz ranty from the day of purchase in matter of lack of Boiler 2,8 Lt automatica conformity present at the moment of delivery. -
Page 10: Machine Description
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 5. MACHINE DESCRIPTION Legenda 1 Safety cap 2 Solenoid valve 3 Steam iron power plug 4 Upper lid 5 Iron switch 6 Switch first heater 7 Switch second heater 8 Pressure gauge 9 Water hose 10 Water tank 11 Power cable 12 Cord holder supporter... -
Page 11: Setting Up
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 6. SETTING UP 8. REGULAR MAINTENANCE: » Screw the safety cap 1, do not overtighten. Be EMPTYING/CLEANING OF THE BOILER sure that the draining tap 15 is closed. ATTENTION: BEFORE DRAINING THE WATER » Connect the steam iron to the solenoid valve 2 FROM THE BOILER, UNPLUG THE MACHINE AND and to the power plug 3. -
Page 12: Troubleshooting
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 9. TROUBLESHOOTING TIPO GUASTO POSSIBILI CAUSE SOLUZIONI The switch is broken. Replace switch. The iron switch does not light up Power cord not properly inserted. Check power cord. when pressed. Lack of power supply. Check power cord. -
Page 13: Automatic Boiler Recharge Diagram
“AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 10. AUTOMATIC BOILER RECHARGE DIAGRAM BOILER PROBE + BOILER MASS – BLACK RELOADING HOSE – BLACK RELOADING HOSE + H PROBE TANK BOILER 13/16... - Page 14 “AUTOMATIC VAPOR” USE AND MAINTENANCE MANUAL 14/16...
- Page 15 Generatore di vapore per lo stiro Steam generator for ironing Générateur de vapeur pour repassage - BF048 AUTOMATIC VAPOR 2,8 lt Rispondono ai requisiti essenziali delle direttive EC: The products complies with the requirements of EC directives: Ils sont correspondant aux qualités essentielles de la réglementation Européenne:...
- Page 16 LEADERS IN STEAM TECHNOLOGY Bieffe S.r.l. Via Costa Fagnano 3, 61122 Pesaro (PU), Italy T +39 0721281857 | F +39 0721281880 info@bieffeitalia.it w w w . b i e f f e i t a l i a . i t...
