IMPACT ACOUSTIC Tensed Division Helios Assembly Instructions

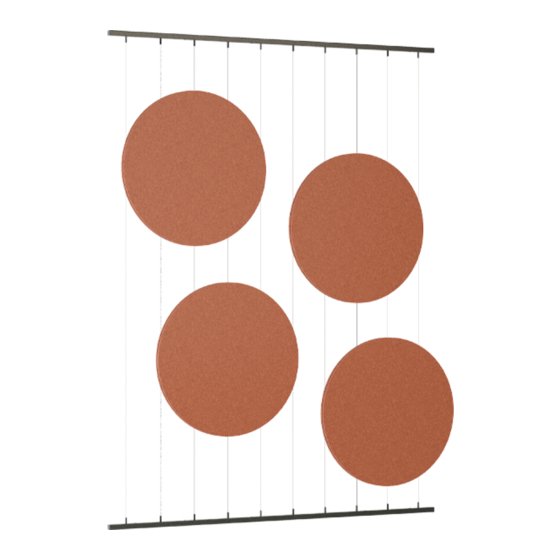

Acoustic room divider

assembly instructions

HELIOS

Acoustic Room Divider

1/3

Table of Contents

Need help?

Do you have a question about the Tensed Division Helios and is the answer not in the manual?

Page 1 assembly instructions HELIOS Acoustic Room Divider...
Page 2 Helios assembly instructions Screw the set screws (B) into the grippers (A). After that, the gripper can be turned into the square tube. Make sure that the two holes are aligned as shown. These screws are not supplied. The holes on Screw the square tubes to the ceiling and to the the wall side have a diameter of 9 mm and floor.
Page 3 Helios assembly instructions Screw the base plates (E) to the panels, the positions are marked. Make sure that the screws are tightened only slightly. Now the magnets (F) are screwed onto the other half of the panels. Make sure that the screws are tightened only slightly. Now the circles with the magnets can be attached to the already mounted circles.
