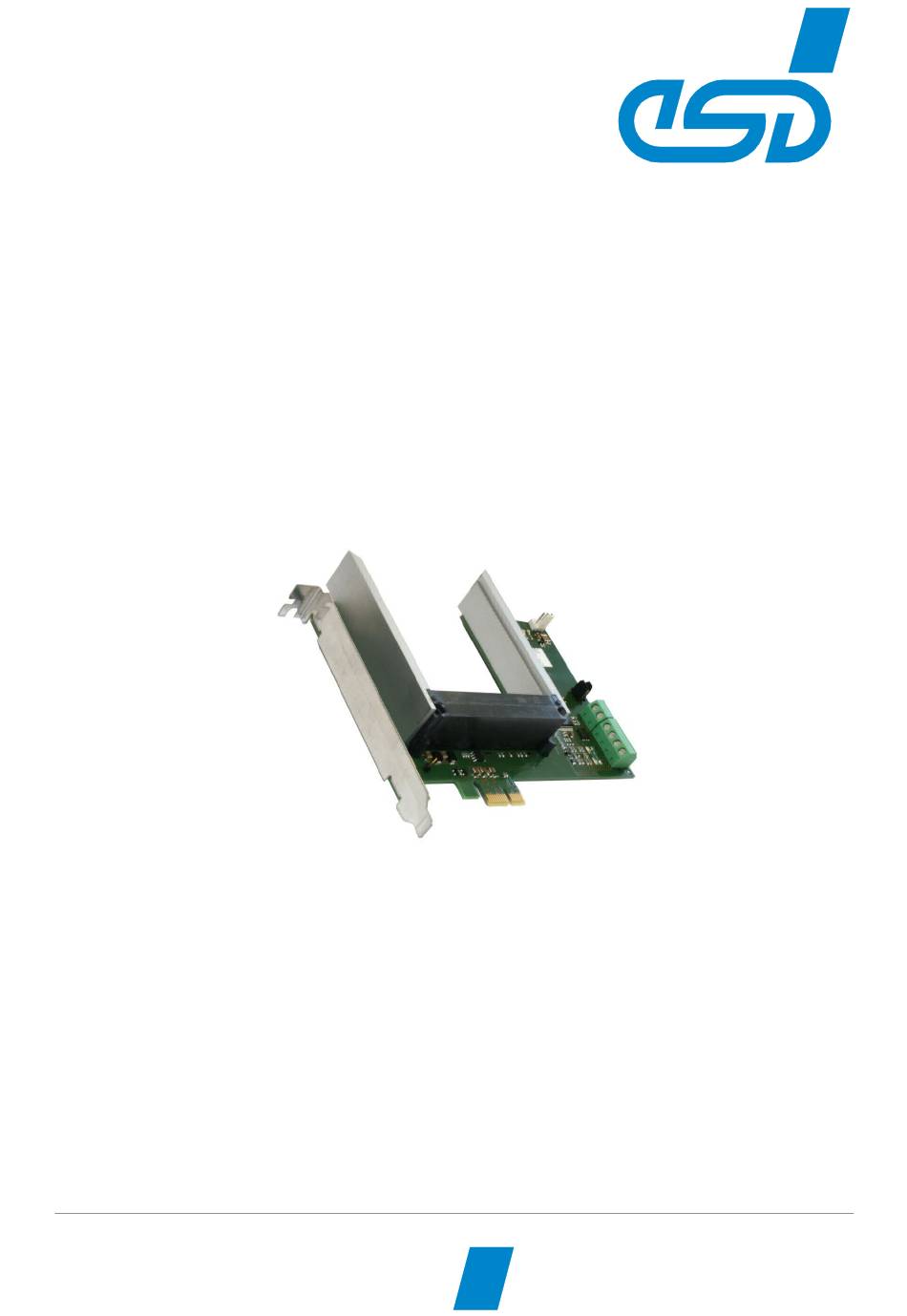

AMC-PCIe-Carrier
PCI Express Adapter Board
for AMC Boards
Hardware Manual
to Product U.1003.01
AMC-PCIe-Carrier
Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1
Page 1 of 16
esd electronic system design gmbh
Vahrenwalder Str. 207 • 30165 Hannover • Germany
http://www.esd.eu
Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68
Advertisement
Table of Contents
Related Manuals for ESD AMC-PCIe-Carrier
Summary of Contents for ESD AMC-PCIe-Carrier
- Page 1 AMC-PCIe-Carrier Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 Page 1 of 16 esd electronic system design gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
- Page 2 The information in this document has been carefully checked and is believed to be entirely reliable. esd makes no warranty of any kind with regard to the material in this document, and assumes no responsibility for any errors that may appear in this document. In particular descriptions and technical data specified in this document may not be constituted to be guaranteed product features in any legal sense.
- Page 3 Date of print: 2013-01-24 Document type DOC0800 number: Hardware version: AMC-PCIe-Carrier Rev.1.0 Document History The changes in the document listed below affect changes in the hardware as well as changes in the description of the facts, only. Revision Chapter Changes versus previous version...
- Page 4 ! The AMC-PCIe-Carrier may become warm during normal use. Always allow adequate ventilation around the AMC- PCIe-Carrier and use care when handling. ! Do not operate the AMC-PCIe-Carrier adjacent to heat sources and do not expose it to unnecessary thermal radiation. Ensure an ambient temperature as specified in the technical data.
-
Page 5: Table Of Contents
3.3 V and 12 V External Power Supply Voltage (X3)............14 3.3 V and 12 V AMC Power Supply Voltage (X5) ..............14 FAN connector (X4)......................15 SMBus connector (X6)......................15 Order Information........................16 AMC-PCIe-Carrier Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 Page 5 of 16... -
Page 6: Overview
Coloured LEDs on the board indicate the status of the power supply and of the Hot-Swap controller. For cooling of the inserted AMC boards an optional fan can be mounted at the AMC-PCIe-Carrier. All µTCA-connector signals are protected by transient voltage suppressors. -
Page 7: Operating Modes
1.1.1 Stand-Alone Operation without PCIe Bus The power supply voltage is fed by an external power supply unit, which is connected via connector X3. The AMC-PCIe-Carrier switches the power supply voltage through to the AMC board and ensures the corresponding Power-Sequencing. -
Page 8: Pcb View With Connectors And Leds
PCB View with Connectors and LEDs 2. PCB View with Connectors and LEDs Figure 2: PCB top view See also page 14 for signal assignment of the connectors. Page 8 of 16 Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 AMC-PCIe-Carrier... -
Page 9: Led Indication
See also PCB top view on page 8 for the position of the jumper. Note! Select the operating mode before you install the AMC-PCIe-Carrier in your computer. AMC-PCIe-Carrier Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1... -
Page 10: Hardware Installation
Electrostatic discharges may cause damage to electronic components. To avoid this, please discharge the static electricity from your body by touching the metal case of your PC before you touch the AMC-PCIe-Carrier and the AMC board. Procedure: Switch off your computer and all connected peripheral devices (monitor, printer, etc.). - Page 11 10. Set the interface properties in your operating system. Refer to the documentation of the operating system. Note! Due to the integrated Hot-Swap controller the AMC-PCIe-Carrier supports 'Hot-Insert' and 'Hot-Remove' of the AMC boards. Please note that common PCs do not support the 'Hot-Insert' and 'Hot-Remove' capability.
-
Page 12: Technical Data
HPM.1 R1.0 Slot designed for single-width (73.5 mm x 180 mm) AMC boards Connector 170-pin AMC socket connector AMC B/B+ compatible (MicroTCA Table 4: MicroTCA standards Page 12 of 16 Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 AMC-PCIe-Carrier... -
Page 13: Pci Express Interface
Voltage measurement 12 V Resolution: 10-bit Accuracy: 150 mV Table 7: Voltage measurement 4.6 Software Support Software drivers/library for the Hot-Swap controller are available for Linux®. AMC-PCIe-Carrier Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 Page 13 of 16... -
Page 14: Connector Assignments
AMC_3.3 V ── ── AMC_12 V Signal description: AMC_3.3 V ... 3.3 V AMC power supply voltage AMC_12 V ... 12 V AMC power supply voltage Page 14 of 16 Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 AMC-PCIe-Carrier... -
Page 15: Fan Connector (X4)
Device connector: DUBOX, 3-pin Pin Position: Pin Assignment: Signal SMCLK SMDAT Signal Description: SMCLK... Serial clock signal line SMDAT... Serial data signal line GND... Reference potential AMC-PCIe-Carrier Hardware Manual • Doc. No.: U.1003.21 / Rev. 1.1 Page 15 of 16... -
Page 16: Order Information
Table 8: Order information PDF Manuals Manuals are available in English and usually in German as well. For availability of manuals see table below. Please download the manuals as PDF documents from our esd website www.esd.eu for free. Manual Order No.
