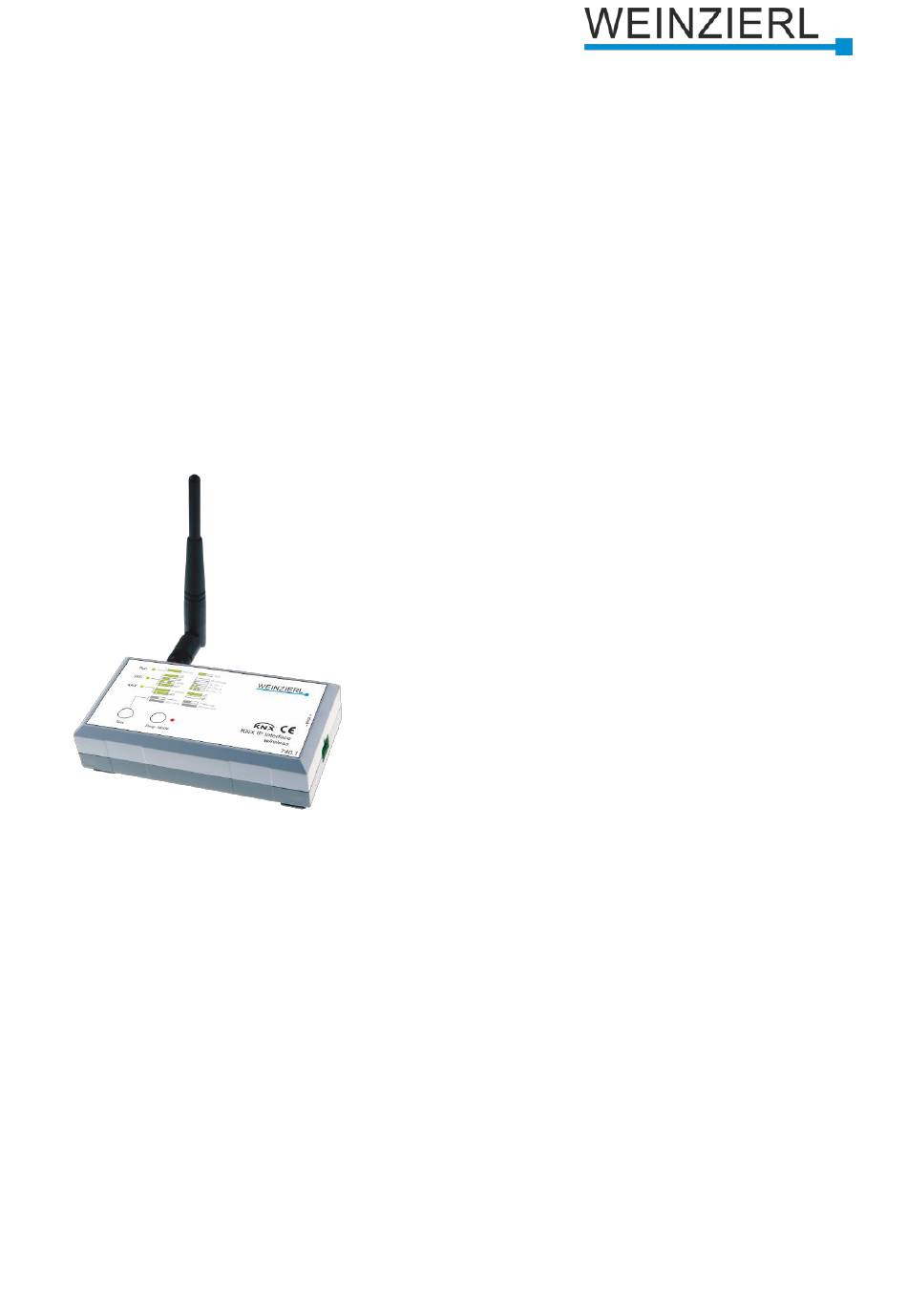

Wireless KNX IP interface
KNX IP Interface 740.1 wireless
Operation and installation manual
(Art. # 5419)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2021 WEINZIERL ENGINEERING GmbH
Seite 1/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weinzierl KNX IP Interface 740.1 wireless
Summary of Contents for Weinzierl KNX IP Interface 740.1 wireless
- Page 1 Wireless KNX IP interface KNX IP Interface 740.1 wireless Operation and installation manual (Art. # 5419) WEINZIERL ENGINEERING GmbH Achatz 3-4 84508 Burgkirchen an der Alz GERMANY +49 8677 / 916 36 – 0 Tel.: E-Mail: info@weinzierl.de Web: www.weinzierl.de © 2021 WEINZIERL ENGINEERING GmbH...
-
Page 2: Table Of Contents
Setting up a Wi-Fi connection ................... 7 KNX IP Interface 740.1 wireless is “Access point” ..............7 KNX IP Interface 740.1 wireless is “Station / Client Mode” ........... 9 Interface settings in the ETS ..................... 9 ETS 5 ........................... 9 ETS 6 .......................... -
Page 3: Application
1 Application The KNX IP Interface 740.1 wireless serves as a wireless interface to the KNX bus based on Wi-Fi. The device can be used as a programming interface for the ETS® and is a wireless alternative to USB or wired IP interfaces. The bus access via Wi-Fi allows the installer to move freely in the building with his laptop to a large extent. -
Page 4: Knx Programming Mode
LED lights green The device is connected via Wi-Fi. LED flashes green (slowly) The device is not connected via Wi-Fi. LED flashes green (fast) WPS is in progress. LED flickers green Telegram traffic via Wi-Fi. © 2021 WEINZIERL ENGINEERING GmbH Seite 4/20... -
Page 5: Reset To Factory Default Settings
▪ ❻ Keep the button Prog. Mode pressed for at least another 6 seconds. ▪ A short flashing of all LEDs (❷❸❹❼) visualizes the successful reset of the device to factory default settings. © 2021 WEINZIERL ENGINEERING GmbH Seite 5/20... -
Page 6: Factory Default Settings
4 Wiring scheme 4.1 Pluggable screw terminal The screw terminal is used to connect the KNX bus. 4.2 Pin assignment Connection Symbol Description Positive connection for KNX bus Ground connection for KNX bus © 2021 WEINZIERL ENGINEERING GmbH Seite 6/20... -
Page 7: Setting Up A Wi-Fi Connection
“Network” icon in the notification area at the edge of the screen. Since the KNX IP Interface 740.1 wireless has an integrated DHCP server, the IP address of the PC should be set automatically (DHCP). This is the default setting for most laptops. - Page 8 “Properties” button. In the following dialog “Obtain an IP address automatically” should be active. After setting up the Wi-Fi connection, the KNX IP Interface 740.1 wireless can be used as an interface to the KNX bus.
-
Page 9: Knx Ip Interface 740.1 Wireless Is "Station / Client Mode
(LED Run lights up green). After the Wi-Fi connection has been established, the KNX IP Interface 740.1 wireless can be used as an interface to the KNX bus. This applies to all PCs and laptops in this network. -
Page 10: Ets 6
All available connections are listed here. By clicking on a connection, this is selected as the desired interface. By clicking the gear next to the desired connection, the connection specific information and options appear. © 2021 WEINZIERL ENGINEERING GmbH Seite 10/20... -
Page 11: Common
See section “ETS database – Additional individual addresses”. Like all programmable KNX devices, the KNX IP Interface 740.1 wireless has a individual address with which the device can be addressed. This is used, for example, by the ETS when downloading the interface via the KNX bus. -
Page 12: Programming
7 Programming The KNX IP Interface 740.1 wireless can be programmed by the ETS in various ways. 7.1 Via the KNX bus For this, the device must only be connected to the KNX bus. The ETS requires an additional interface (e.g. USB) to the KNX bus. This way, both the individual address and the entire application including IP configuration can be programmed. -
Page 13: Ets Database
8 ETS database The ETS5 database (for ETS 5.7 or newer) can be downloaded from the product website of the KNX IP Interface 740.1 wireless (www.weinzierl.de) or from the ETS online catalogue. 8.1 Additional individual addresses The additional individual addresses appear in the topology view. -
Page 14: Ip Settings
8.2 IP settings By marking the KNX IP Interface 740.1 wireless in the tree structure of the topology view of the ETS project, the overview “Properties” appears on the right side of the ETS window. 8.2.1 Device name (SSID) Under Properties menu item “Settings”, the device name (SSID) of the KNX IP Interface 740.1 wireless can be changed. - Page 15 (static IP address), the IP address, subnet mask and standard gateway can be freely selected. IP Address The IP address of the KNX IP Interface 740.1 wireless must be entered here. This is used to address the device via the IP network (Wi-Fi). The IP addressing should be coordinated with the administrator of the network.
-
Page 16: Description
Subnet mask of PC: 255.255.255.0 The KNX IP Interface 740.1 wireless is located in the same local network, i.e. it uses the same subnet. The assignment of the IP address is restricted by the subnet, i.e. in this example the IP address of the IP interface must be 192.168.1.xx, xx can be a number from 1 to 254 (with the... -
Page 17: General Settings
The operating mode of the device is configured here. The following options are available: ▪ Access point Device is an access point to which a Wi-Fi client (PC) can connect. ▪ Station / Client-Mode Device is a client that connects to an access point. © 2021 WEINZIERL ENGINEERING GmbH Seite 17/20... -
Page 18: Operating Mode "Access Point
To ensure a high level of security, the key should be at least 10 characters long. Also it should contain upper and lower case letters as well as special characters and numbers. Device name (SSID): KNX IP Interface 740.1 Authentification: WPA2-PSK Key: iEn49*s/kP © 2021 WEINZIERL ENGINEERING GmbH Seite 18/20... -
Page 19: Operating Mode "Station / Client-Mode
This configures whether the device can connect to the remote access point using WPS (Wi-Fi protected setup). The choices are: ▪ Disabled ▪ Temporary ▪ Permanent (save access data in device) The WPS function overwrites the authentification settings. © 2021 WEINZIERL ENGINEERING GmbH Seite 19/20... - Page 20 WEINZIERL ENGINEERING GmbH www.weinzierl.de/en/products/740.1/ets5 Achatz 3-4 84508 Burgkirchen an der Alz Data sheet GERMANY www.weinzierl.de/en/products/740.1/datasheet Tel.: +49 8677 / 916 36 – 0 CE Declaration E-Mail: info@weinzierl.de www.weinzierl.de/en/products/740.1/ce-declaration Web: www.weinzierl.de Tender text www.weinzierl.de/en/products/740.1/tender-text 2021-11-18 © 2021 WEINZIERL ENGINEERING GmbH Seite 20/20...
