Router Set-up Guide - ZYXEL VMG1312 for FTTC
Connections

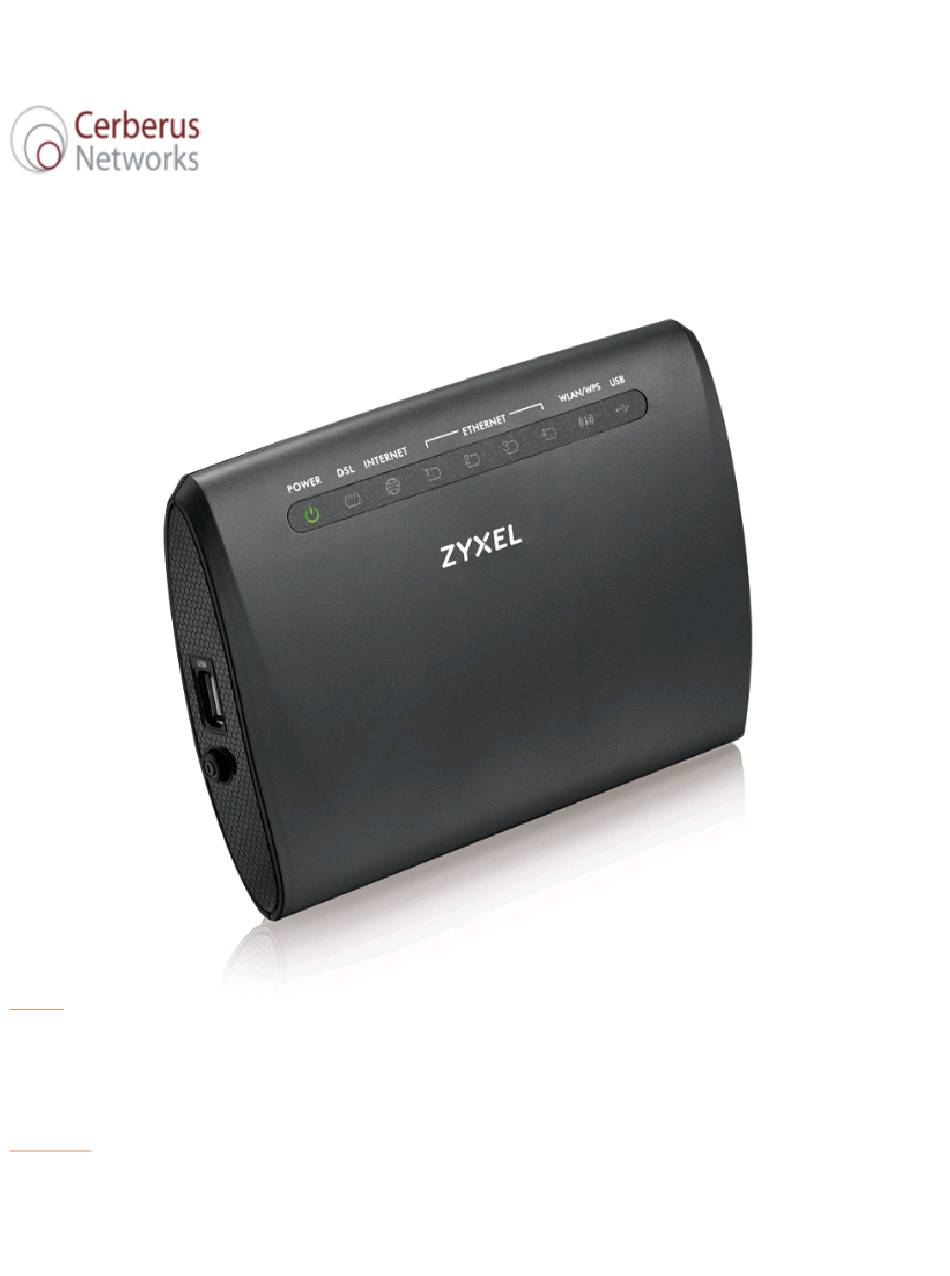

ZYXEL VMG1312-B10D
Router Setup for FTTC Connections
Contents
Router Logon ........................................................................................................................ 3
Configure Connection ........................................................................................................... 5
LAN/DHCP Setup...............................................................................................................................9
Wi-Fi .....................................................................................................................................11
Firmware Upgrade .............................................................................................................. 12
Remote Management ......................................................................................................... 14
SNMP ................................................................................................................................... 16
Support Contact Details ....................................................................................................... 18
Router Logon
1.
Open a web browser on your PC or laptop and enter the following address:
http://192.168.1.1
This will bring up the login screen for the router as seen below:
Note
- it is recommended to connect DSL cable to DSL port behind the router first before starting the configuration of the router.
Advertisement
Related Manuals for ZyXEL Communications VMG1312
Summary of Contents for ZyXEL Communications VMG1312
-
Page 1: Table Of Contents
Router Set-up Guide - ZYXEL VMG1312 for FTTC Connections ZYXEL VMG1312-B10D Router Setup for FTTC Connections Contents Router Logon ........................3 Configure Connection ......................5 LAN/DHCP Setup……………………………………………………………………………………………………………….9 Wi-Fi .............................11 Firmware Upgrade ......................12 Remote Management ......................14 SNMP ........................... 16 Support Contact Details ....................... - Page 2 Enter the login credentials as follows: Username: admin Password: default (1234) Note -If the router has retained its original configuration as shipped by Cerberus Networks, the password would have been changed. The latest password can be found in your Cerberus documentation. If the router was in a factory default state, it will now prompt you to change the password.
-
Page 3: Configure Connection
Please click on the ' Skip' option at the bottom of the screen. Closing the Wizard will bring up the main dashboard of the router as seen in the next section – Configure Connection. Configure Connection On the main dashboard of the router, click on the menu button at the top-right corner of the screen in order to display more options: Click on Network Settings 3) Select... - Page 4 4) Click on the edit option for VDSL at the end of row 2 (marked in Red): Make the following changes under General: Set Mode to Routing Set Encapsulation to PPPoE Change IPv4/IPv6 Mode to IPv4 only Make the following changes under PPP Information:...
- Page 5 Enter the PPP Username. This can be found in your Cerberus documentation. Enter the PPP password. This is also in your Cerberus documentation. Make sure to change VLAN option to 101 & Change the MTU to 1492 as per below snapshot. Ensure IP Address and DNS Server options are set to automatic: Ensure the following Routing Features are enabled: IGMP Proxy...
-
Page 6: Lan/Dhcp Setup
Click on ' Apply' at the bottom of the screen to save your settings. Your internet connection should now be online. LAN/DHCP Setup On the main dashboard of the router, click on the menu button at the top-right corner of the screen in order to display more options: Select Network Settings 3) Click... -
Page 7: Wi-Fi
4) DHCP Server state is ticked as Enabled by default as mentioned in below snapshot. Customer can disable it if they don't wish to use Router as a DHCP Server. 5) Also please make sure IPv6 Active option deactivate (Blue to Grey) in case customer doesn't want to use IPv6 option by default. Click on Apply to save changes. -
Page 8: Firmware Upgrade
Visit the following URL for the latest firmware: ftp://ftp.zyxel.com/VMG1312-B10D/firmware/ 2) Download the latest zip file, for e.g. VMG1312-B10D_V513AAXA10C0.zip. 3) Open the zip file and extract the folder within it to a location on your PC or laptop. 4) On the main dashboard of the router, click on the menu button at the top-right corner of the screen in order to display more options:... -
Page 9: Remote Management
6) Select Firmware Upgrade 7) Click on Choose File and then navigate to the location of your saved folder as seen in Step 3. Select the file ending .bin, for example, V513AAXA10C0. bin: 8) Once you have selected the firmware file, click on Upload to begin the upgrade. - Page 10 1. Click on Maintenance: 3) Select Remote Management 4) In the remote management table, all options under WAN are unticked by default. Please tick the following options: HTTPS PING (this is required if you want Cerberus to allow ping of router WAN IP over the Internet) SNMP (this is only required if you wish to enable SNMP for bandwidth monitoring, as shown in the next section)
-
Page 11: Snmp
5) Click on ' Apply' to save your changes. SNMP SNMP is an optional feature used to facilitate bandwidth monitoring of your internet connection. Prior to enabling SNMP, please ensure the SNMP option has been selected as shown in the previous section (Remote Management). Once this has been verified, please proceed with the following steps: Click on the menu icon on the top-right corner of the router dashboard. -
Page 12: Support Contact Details
1. Perform the following steps under the main SNMP window: • Click on the SNMP Agent sliding button. The button should change from grey to blue to activate SNMP. • ' Get Community' effectively works as a password . Please choose a random string of characters. •...
