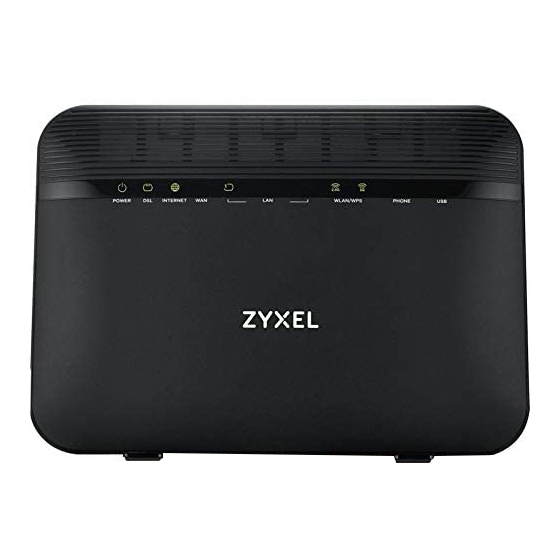

ZyXEL Communications VMG8924-B10A Quick Start Manual

ZyXEL Communications VMG8924-B10A Quick Start Manual

Dual band wireless ac/n vdsl2 voip combo wan gigabit iad
Hide thumbs Also See for VMG8924-B10A:

Advertisement

Quick Links

Quick Start Guide

Hardware Connections

1
Connect gateway modem (1-a) using an
Ethernet cable.
OR
Connect DSL splitter (1-b) using the gray
telephone cable.
2
Connect computer using the yellow Ethernet
cable.
3
Connect phone.
4
Connect power and press the
power button.
5
Make sure LEDs are on (5-a)
and check LEDs (5-b).

Internet Setup

1/2
Dual Band Wireless AC/N VDSL2 VoIP
1
1-a
1-b
5-b
INTERNET
Internet is ready. Go to Wireless Setup.
ON
INTERNET
Internet is not ready. Go to Internet Setup.
OFF
IP Address: 192.168.1.1
VMG8924-B10A / VMG8924-B30A
Combo WAN Gigabit IAD
DSL
WAN
LAN
2
3
2.4G
5G
Username: admin
Password: 1234
Copyright © 2013 ZyXEL Communications Corp. All Rights Reserved
5-a
Please Check...
PHONE1
4
PHONE1
VoIP registration is complete.
ON
PHONE1
VoIP registration is not complete. Go to the Web
Configurator and configure VoIP settings.
OFF
Quick Start
