- Page 1 GDVR-3080 GDVR-3080 FULL HD 1080P DVR FULL HD 1080P DVR DVR Quick Start Guide DVR Quick Start Guide...
-
Page 2: What's In The Box
What’s in the box Front Camera Front Camera Rear Camera Rear Camera Cradle Cradle INSTRUCTION MANUAL Instruction Manual Power Cable Rear Camera Connection Cable... -
Page 3: Overview Of The Unit

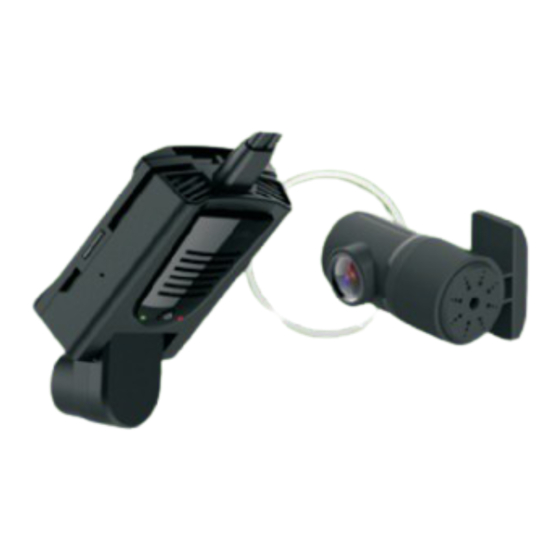

Overview Of The Unit Front Camera Rear Camera Rear Rear Camera Camera Cable Cable Power Cable Detachable Cradle Detachable Cradle Power On/Off Button Adjustable Rear Camera Cradle Green LED for Recording Blinks when recording Camera Lens Stops blinking when in standby mode Power On Blue LED Power On Red LED microSD Card Slot... -
Page 4: Wiring Diagram
Wiring Diagram REAR CAMERA POWER CABLE DVR IN DVR IN REAR FRONT VIDEO CAMERA VIDEO REAR CAMERA... -
Page 5: Installation
Installation Place the Rear Camera on the rear windshield and Place the Front Camera on the windshield behind the adjust the appropriate lens angle by checking it on the rearview mirror and adjust the appropriate Lens angle Car Audio. by checking it on the Car Audio. Power Cable Rear Camera Front Camera... -
Page 6: Getting Started
Getting Started Head Unit Initial Set Up DVR Operation Description to access System Menu and set [Camera In] to [Rear DVR]. Radio AV-IN BT Audio Access into the System Settings to select the Video to access this device camera screen. Resolution: Full HD 30fps or HD 30fps Recording Video status / Photo Take status Take Photo... -
Page 7: Major Settings
Major Settings Video Duration Sound Record The duration for each recording: Microphone records sound from surroundings and you 1Minute-the duration for each recording is 1 minute can hear the recorded sound when playing the video. 2Minutes- the duration for each recording is 2 minutes 3Minutes- the duration for each recording is 3 minutes Sound Record Movie Mode... - Page 8 Major Settings Collision Sensitivity During collision or sudden brake this device will start up the Gravity Sensor, video recorded are saved separately in special folder called EVENT Axis X 800 3000 Reset Axis X direction: means turning left and right. The smaller the value in the X direction, the easier it is to activate gravity sensing when turning.
- Page 9 Managing video File On PC Normal Event Parking Photo Normal Video Folder Videos recorded under normal circumstances are saved in this folder. The device allocates 69% of its storage capacity for this folder alone.Old videos will be automatically deleted and replaced Normal by the new ones when the allocated storage is full.
-
Page 10: Product Specification
Product Specification Working Voltage DC 9-16V 350mA Working Current <2mA Stand by urrent Working Temperature 0°C~70°C 6 crystal glass Lens Camera Lens Camera Aperture F2.0 Safety Fuse Horizontal 109° Front Camera View Angle 58° Vertical Diagonal 140° 109° Rear Camera View Horizontal Angle 58°... -
Page 11: Troubleshooting
Troubleshooting Troubles Causes Solutions The device microSD Card maybe Check if the m icroSD Card is damaged and replace makes beep it with a new one defective sound continuously Blurred video Device lens is dusty Clean the lens Windshield of vehicle is Clean the windshield dusty Environmental impact...
