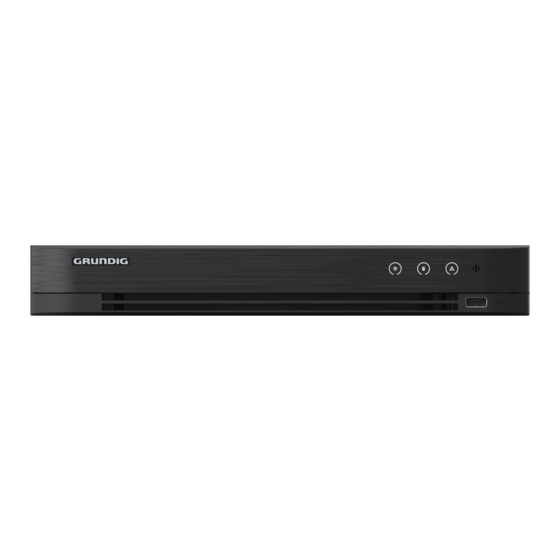

Summary of Contents for Grundig GD-RT-BC30004N
- Page 2 Please find the latest version at WWW.GRUNDIG-SECURITY.COM Limitation of Liability / Legal Disclaimer Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s...
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open- source software licenses. For detailed information about the...
- Page 4 You may obtain the complete corresponding open-source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instruction...
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 Special Installation Instructions for Recorders (NVRs and DVRs) Make sure that the last actual firmware is installed on the IP Device. You may get the actual firmware from www.grundig-security.com website or from tech-support@grundig-security.com. Make sure that the product is secured after installation and locate the recorder in safe places where children are not able to reach it.
- Page 7 Power down the unit before connecting and disconnecting accessories and peripherals. Only use an HDD for this device that is recommended by GRUNDIG. The USB flash drive can only be connected to the USB-port of the device. Use the device in conjunction with an UPS if possible.
-
Page 8: Table Of Contents
Table of content 1 Rear Panel Interfaces Description ..........9 2 Installation and Connections ............10 DVR Installation ..............10 HDD Installation ..............10 Bracket Installation ..........10 Fix-on-Bottom Installation ......... 11 RS-485 and Camera Connection ........12 3 Menu Operation ................13 3.1 Startup ................ - Page 9 Add IP Cameras ..............20 Connect PoC Cameras ............21 Live View ................. 22 Recording Settings ............23 Playback ................23 4 Accessing by Web Browser ............24...
-
Page 10: Rear Panel Interfaces Description
1 Rear Panel Interfaces Description The rear panel interfaces vary with different models. Refer to Table 1-1 for the common interface description of rear panels. Common Interfaces Description of Rear Panels Item Description Item Description BNC interface for Turbo HD VIDEO BNC connector VIDEO IN... -
Page 11: Installation And Connections
2 Installation and Connections DVR Installation During installation of the DVR: Use brackets for rack mounting. Ensure ample room for audio and video cables. When routing cables, ensure the bend radius of the cables are no less than five times of its diameter. ... -
Page 12: Fix-On-Bottom Installation
Note Please uninstall the upper layer bracket first before installing HDD on the lower layer bracket. Connect the data cable and power cable. Refer to Figure 2-3. Note You can repeat the steps above to install other HDDs. Reinstall the device cover and fasten screws. Remove Fix HDD Connect... -
Page 13: Rs-485 And Camera Connection
Remove Connect Fix HDD Cover Cable RS-485 and Camera Connection Use RS- 485 interface to connect a PTZ-camera with DVR. Before you start Ensure both camera and DVR are grounded. Pull out the pluggable block at the RS-485 terminal block. Press and hold the orange part of the pluggable block, insert signal cables into slots. -
Page 14: Menu Operation
PTZ Connection 3 Menu Operation 3.1 Startup Proper startup is crucial to expand the life of DVR. It is HIGHLY recommended to use an uninterruptible Power Supply (UPS) with the device. Plug power supply into an electrical outlet. Press the power button (certain models may have power button on the front or rear panel). - Page 15 STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
-
Page 16: Set Unlock Pattern
Set Admin Password next steps: When you have enabled Reserved E-mail Settings, continue to set the reserved email for the future password resetting. When you have enabled Export GUID, continue to export the GUID file to the USB flash drive for the future password resetting. -
Page 17: User Login
Note The pattern shall have 4 dots at least. Each dot can be connected for once only. Draw the same pattern again to confirm it. Draw the Unlock Pattern User Login You have to log in to the device before operating the menu and other functions. -
Page 18: User Logout, Shutdown And Reboot
User Logout, Shutdown and Reboot You can log out of the system, shut down, or reboot the device. Click on the menu bar. Click Logout, Shutdown, or Reboot as your desire. Configure Signal Input For certain models, you can configure the analog and IP signal input types and enable 5 MP long distance transmission. -
Page 19: Network Settings
Click Check the channel(s) to enable 5 MP long distance transmission. Click OK. 5 MP Long Distance Transmission Settings Click Apply to save the settings. Network Settings Configure General Settings You shall properly configure the network settings before you operate DVR over network. - Page 20 Network Settings SCMS SCMS provides mobile phone application and platform service to access and manage your connected devices, which enables you to get a convenient remote access to the surveillance system. Go to System > Network > Advanced > Platform Access. Check Enable to activate the function.
-
Page 21: Add Ip Cameras
Note SCMS is disabled by default. The verification code is empty by default. It must contain 6 to 12 letters or numbers, and it is case sensitive. (Optional) Check Custom to enter the server address as your desire. (Optional) Check Enable Stream Encryption, verification code is required for remote access and live view. -
Page 22: Connect Poc Cameras
Add IP Camera Connect PoC Cameras The models GD-RT-AP5004P, -AP5008P & -AP5016P support PoC (Power over Coaxitron) cameras connection. DVR will detect the connected PoC cameras automatically, manage the power consumption via the coaxial communication, and provide power to the cameras via coaxitron. Before you start Connect the PoC camera to the DVR. -
Page 23: Live View
Please turn off the PoC function if the camera does not support PoC, or the camera is not produced by Grundig. Otherwise, it may result in permanent damage to the camera or DVR. Live View Enter the live view mode ... -
Page 24: Recording Settings
on/off, digital zoom, live view strategy, show information and start/stop recording. Recording Settings Before you start Make sure that the disk has already been installed. If not, please install a disk and initialize it. You may refer to the user manual for detailed information. -
Page 25: Accessing By Web Browser
4 Accessing by Web Browser You can get access to the device via web browser. The following web browsers are supported: Internet Explorer 6.0, 7.0, 8.0, 9.0 & 10.0, Apple Safari, Mozilla Firefox, and Google Chrome. The supported resolutions include 1024*768 and above. Note The use of the product with Internet access might be under network security risks. - Page 26 If the device is already activated, enter the user name and password to log in. Activate the Device Follow the installation prompts to install the plug-in before viewing the live video and managing the device. Note You may have to close the web browser to finish the installation of the plug-in.
