Replacing the Fuse
ELECTRIC SHOCK HAZARD: Prior to starting the process of removing and replacing a fuse, remove the AC Power by unplugging the power
cord from the rear of the unit.
IMPORTANT: The orientation of the cartridge within the unit and location of the fuse within the cartridge are crucial to proper operation.
Make note of the orientation of the cartridge and the fuse location within the cartridge before removing.
1. Verify the power cord is unplugged from either the wall outlet or
the rear of the unit.
2. With a small flat blade screwdriver or similar, pry open and pivot
down the fuse holder cover.
3. Using that same screwdriver, gently loosen and pull the fuse
cartridge slowly out from the unit. Make note of the orientation
of the fuse cartridge as it is removed. When re-Installing, it is
important that it be positioned the same way as it came out to

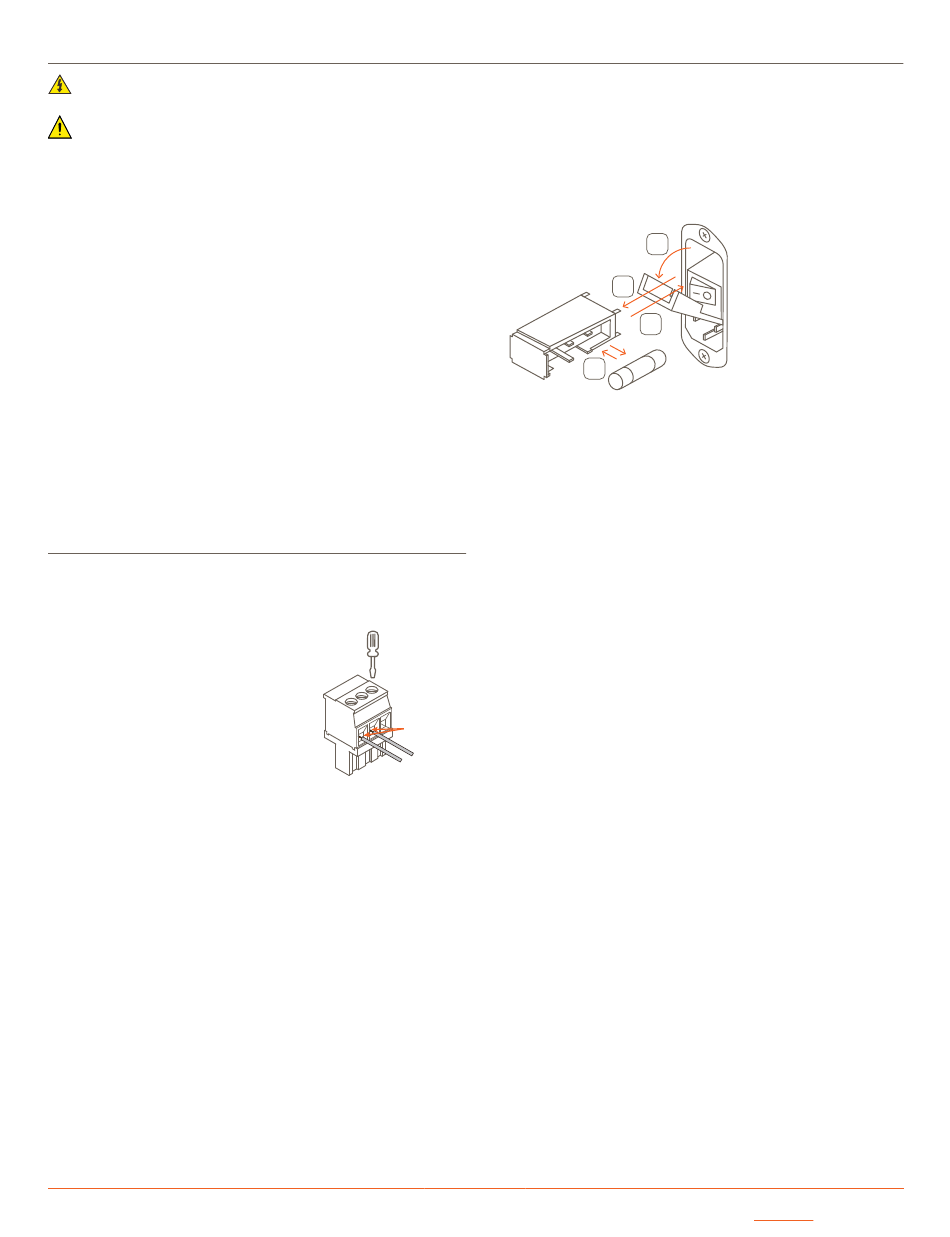

ensure proper operation. Refer to diagram below
TIP: Mark the chassis and fuse holder to ease the re-installation
process.
4. Remove the old fuse from the cartridge and discard. Place the new
fuse into the cartridge.
5. Place the cartridge part way into the receptacle being careful to
align it as defined in the diagram. Gently push the fuse cartridge
until it seats with the terminals at the rear of the slot. If resistance
is encountered, DO NOT apply more pressure. Stop pushing on the
cartridge, remove it, verify the orientation is correct, and repeat
step 5 until cartridge is seated.
3-Pin Screw Down Connections
When making connections, follow the guidelines set below to ensure a
safe and secure connection.
1. With a small slotted screwdriver,
turn the screws on the connector
counterclockwise (CCW) until the
silver crimps open enough to slide a
wire into the square slots.
2. Strip back insulation on each wire to
1/4
inch and insert the stripped wire
into the proper connection.
3. Turn the screw clockwise (CW) until
the crimps tighten around each wire.
Gently tug on each wire a bit to
verify they are secure.
Savant Video Input IP Transmitter QRG | 009-1604-03
Copyright 2021 Savant Systems, Inc. | 210416
< 1/8 inch of
bare wire
exposed
3 of 2
2
3
5
4
