NXT

Hydro Tractors

Mfg. No. Description

2690920

NXT 23 Gross HP Hydro Tractor

2690921

NXT 27 Gross HP Hydro Tractor

Operator's Manual

Riding Mowers

Mower Decks

Mfg. No. Description

1695928

1695929

46" Mower Deck

52" Mower Deck

1750813

Revision A

Table of Contents

Need help?

Do you have a question about the NXT 23 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victa NXT 23

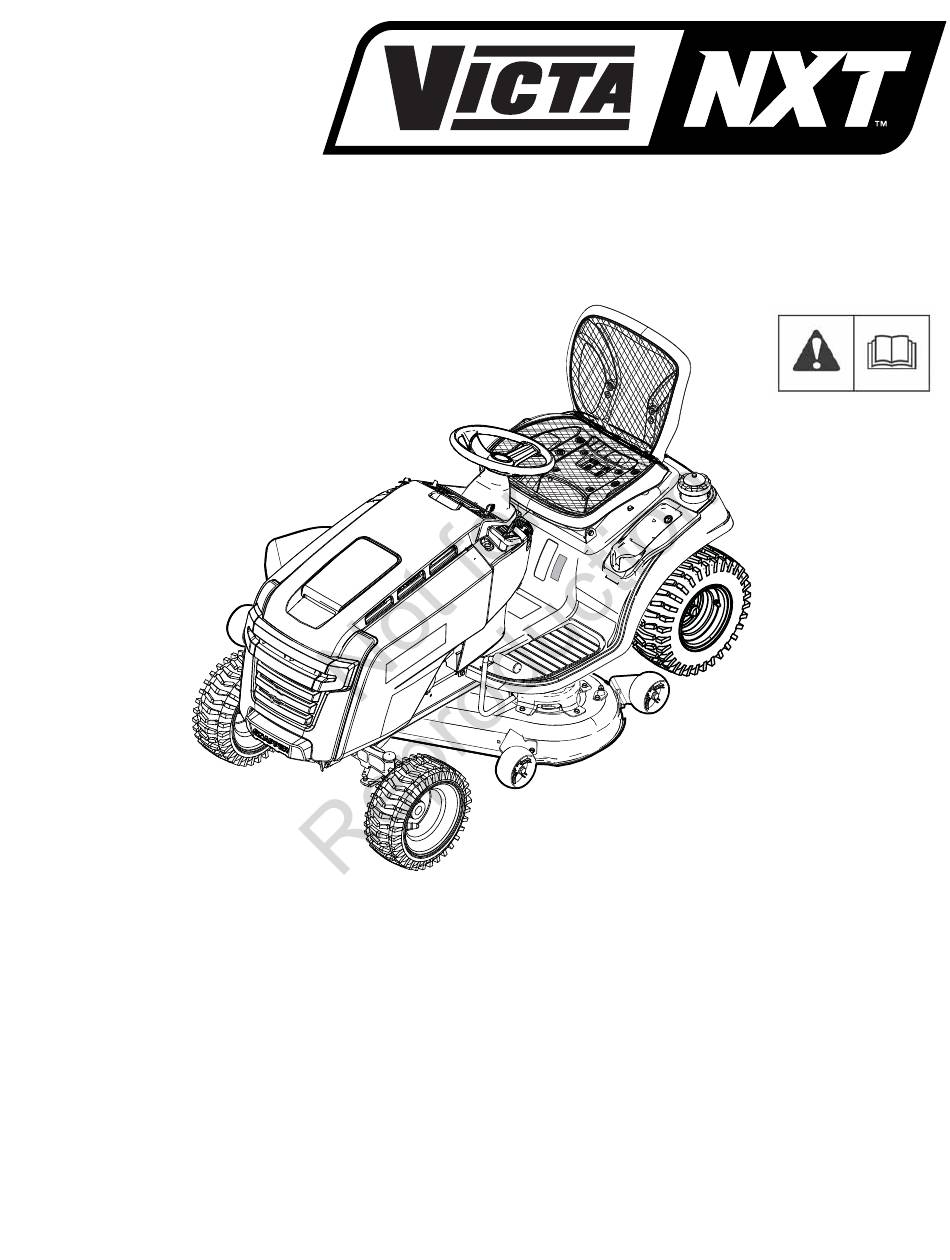

Page 1 Operator's Manual Riding Mowers Hydro Tractors Mower Decks Mfg. No. Description Mfg. No. Description 2690920 NXT 23 Gross HP Hydro Tractor 1695928 46” Mower Deck 2690921 NXT 27 Gross HP Hydro Tractor 1695929 52" Mower Deck 1750813 Revision A...
Page 2: Table Of Contents
Warranties ......................30 General Information Thank you for purchasing this quality-built VICTA riding mower. We’re pleased that you’ve placed your confidence in the VICTA brand. When operated and maintained according to the instructions in this manual, your VICTA product will provide many years of dependable service.
Page 3: Operator Safety
Operator Safety Important Safety Instructions DANGER indicates a hazard which, if not avoided, will result in death or serious injury. SAVE THESE INSTRUCTIONS - This manual contains important instructions that should be followed during the initial set-up, the operation, and the maintenance of the WARNING indicates a hazard which, if not avoided, equipment.
Page 4 Contact the origincal equipment manufacturer, re- other appliances that have pilot lights or other ignition tailer, or dealer to obtain a spark arrester designed sources because they can ignite fuel vapors. for the exhaust system installed on this engine. www.victa.com.au...
Page 5 Safe Operation Practices Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects.
Page 6 3. Never allow children or others in or on towed equipment. 4. On slopes, the weight of the towed equipment may cause loss of traction and loss of control. 5. Travel slowly and allow extra distance to stop. 6. Do not shift to neutral and coast down hill. www.victa.com.au...
Page 7 SERVICE AND MAINTENANCE 12. Do not use gasoline containing METHANOL, gasohol Safe Handling of Gasoline containing more than 10% ETHANOL, gasoline 1. Extinguish all cigarettes, cigars, pipes, and other additives, or white gas because engine/fuel system sources of ignition. damage could result. 2.
Page 8 Safety Decals Starter Insert Part No. 1739028 1730202 Transmission Release Part No. 1730202 DANGER Main Panel Part No. 1734879 DANGER Amputation Hazard Part No. 7101665 Figure 1 www.victa.com.au...
Page 9 This page intentionally left blank.
Page 10: Features And Controls
Features and Controls STOP STOP Figure 2 www.victa.com.au...
Page 11 Tractor Controls Reverse Mowing Option (RMO) Brake Pedal This allows the operator to mow (or use other Depressing the brake pedal applies the tractor PTO driven attachments) while traveling in brake. reverse. To activate, turn the RMO key after the PTO is engaged.
Page 12 2. Press RESET for greater than 3 seconds to reset the Trip > 3 sec Hours to 0. 3. Press MODE for less than 1 second to display the Clock (see Set the Clock section). 4. Press MODE for less than 1 second to return to Total Hours. www.victa.com.au...
Page 13 Set the Clock 1. Press MODE for greater than 3 seconds. 2. Press SCROLL to adjust the hours. MODE 3. Press RESET to adjust the minutes. SCROLL > 3 sec 4. Press MODE for less than 1 second to save the setting. hours RESET minutes...
Page 14: Operation
** Above 80° F (27° C) the use of 10W30 may cause presence of children. Never activate the RMO if children increased oil consumption. Check oil level more are present. Children are often attracted to the unit and the frequently. mowing activity. www.victa.com.au...
Page 15 Check and Add Engine Oil 1. Place the tractor on a level surface (see Figure 5). Figure 5 2. Stop the engine and remove starter insert. 3. Clean the oil ﬁll area of any debris and remove. 4. Remove the dipstick and wipe with a clean cloth (see Figure 6).
Page 16 NOTE: In the event of an emergency, the tractor/engine can be immediately stopped by pressing the start/stop push button or pulling out the starter insert. For normal shut down, see Stopping the Tractor and Engine section. www.victa.com.au...
Page 17 Driving the Tractor Reverse Mowing Option (RMO 1. Sit in the seat and adjust the seat so that you can WARNING comfortably reach all the controls and see the dashboard Mowing in reverse can be hazardous to bystanders. display (see Features and Controls). Tragic accidents can occur if the operator is not alert to the 2.
Page 18 The cruise will lock in one of its ﬁve locking will stop immediately by pressing the on/oﬀ push button or positions. pulling out the starter insert. TO DISENGAGE: 1. Depress the brake pedal. 2. Depress the forward ground speed pedal. www.victa.com.au...
Page 19: Maintenance
Maintenance Maintenance Chart TRACTOR AND MOWER ENGINE Every 8 Hours or Daily First 5 Hours Check safety interlock system Change engine oil Clean debris off tractor and mower deck Every 8 Hours or Daily Clean debris from engine compartment Check engine oil level Every 25 Hours or Annually * Every 25 Hours or Annually * Check tire pressure...
Page 20 To charge the battery, follow the instructions provided by the battery charger manufacturer as well as all warnings included in the Operator Safety section of this manual. Charge the battery until fully charged. Do not charge at a rate higher than 10 amps. www.victa.com.au...
Page 21 Changing the Engine Oil WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Changing Oil • If you drain the oil from the top oil fill tube, the fuel tank must be empty or fuel can leak out and result in a fire or explosion.
Page 22 (see Figure 13). Figure 12 Pre-Cleaner Cleaning 1. Wash in soapy water with liquid detergent. 2. Squeeze dry in clean cloth. Cartridge Cleaning Tap gently on ﬂat surface to remove light debris. Do not attempt to clean cartridge. www.victa.com.au...
Page 23 Check Spark Plug Gap Use a spark plug feeler gauge to check the gap between the two electrodes. When the gap is correct, the gauge will drag slightly as you pull it through the gap. If necessary, use the spark plug gauge to adjust the gap by gently bending the curved electrode without touching the center electrode or the porcelain.
Page 24 3. Run water to remove grass and debris from underside of mower deck. 4. Turn the mower on and place in the highest cutting position. Cut Height 5. Turn the mower oﬀ. 6. Remove the garden hose and quick disconnect from the washout port when completed. Figure 15 www.victa.com.au...
Page 25 Lubrication We recommend that all moving parts should be lubricated where contact is made with other parts (see Figure 16). Keep oil and grease oﬀ belts and pulleys. Wipe surfaces clean before and after lubrication. (8x) (1x) Figure 16...
Page 26 If gasoline in the tank has not been treated with a fuel stabilizer, it must be drained into an approved container. Run the engine until it stops from lack of fuel. The use of a fuel stabilizer in the storage container is recommended to maintain freshness. www.victa.com.au...
Page 27: Troubleshooting
Troubleshooting Troubleshooting the Tractor PROBLEM LOOK FOR REMEDY Brake pedal not depressed. Fully depress brake pedal. PTO (electric clutch) switch is in Place in OFF position. ON position. Cruise control engaged. Move knob to NEUTRAL/OFF position. Out of fuel. If engine is hot, allow it to cool, then refill the fuel tank. Fuse is blown.
Page 28 Start the mower in a cleared area. Excessive mower vibration. Mower has other problem. See authorized dealer. PTO not engaged. Engage the PTO. Engine runs and tractor drives, but mower will not Mower has other problem. See authorized dealer. drive. www.victa.com.au...
Page 29: Specifications
Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine. Parts and Accessories Accessories Replacement Parts For a list of the available accessories, see an authorized Victa We recommend that you see an authorized Victa Dealer for all Dealer. maintenance and service of the tractor/engine and parts.
Page 30: Warranties
Damage caused by stale fuel (carburetor leaks, clogged fuel tubes, sticking valves, etc) is not covered by warranty. * Applies to Briggs and Stratton engines only. Warranty coverage of non-Briggs and Stratton engines is provided by the engine manufacturer. www.victa.com.au...
Page 32 Briggs & Stratton Power Products Group, LLC P.O. Box 702 Milwaukee, WI USA 1-800-837-6836 www.BRIGGSandSTRATTON.com www.victa.com.au...
