Victa Enviromower ENV369B Instruction Manual

Victa Enviromower ENV369B Instruction Manual

Cordless, rechargeable, battery powered mower
Hide thumbs

Advertisement

Table of Contents

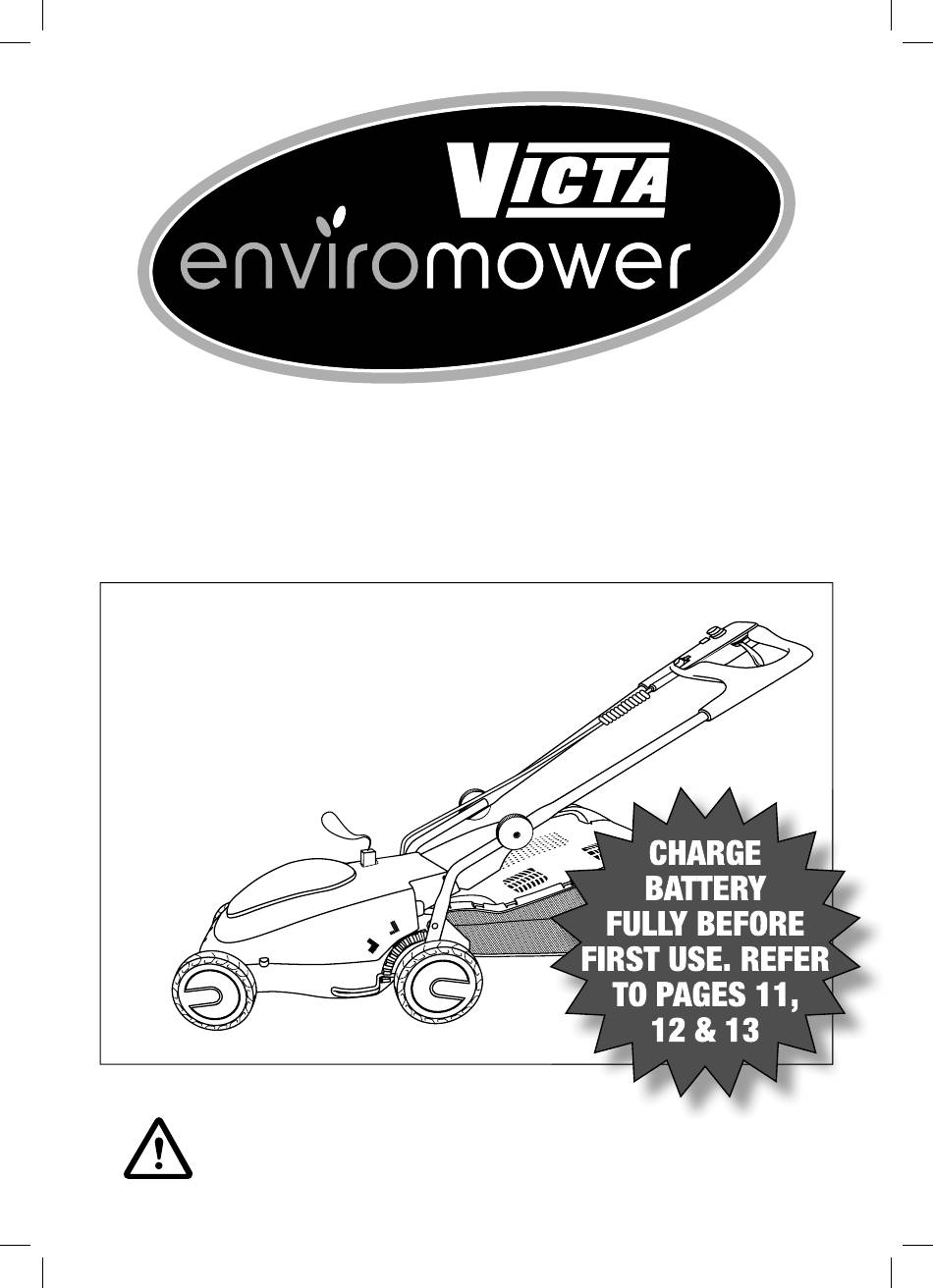

Cordless, Rechargeable,
Battery Powered Mower
Instruction Manual
Model ENV369B
Model ENV369S
Read and follow the operating instructions and safety information
before using for the first time.
Specifications subject to change without notice.
5183 LR00830A Enviromower V3 A2_9.indd 1
5183 LR00830A Enviromower V3 A2_9.indd 1
&
d
f t i f
ti
25/2/09 12:05:00 PM
25/2/09 12:05:00 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enviromower ENV369B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Victa Enviromower ENV369B

Summary of Contents for Victa Enviromower ENV369B

  • Page 1 Cordless, Rechargeable, Battery Powered Mower Instruction Manual Model ENV369B & Model ENV369S Read and follow the operating instructions and safety information f t i f before using for the first time. Specifications subject to change without notice. 5183 LR00830A Enviromower V3 A2_9.indd 1 5183 LR00830A Enviromower V3 A2_9.indd 1 25/2/09 12:05:00 PM 25/2/09 12:05:00 PM...
  • Page 2 ...On your purchase of an environmentally friendly, cordless, rechargeable, battery powered lawnmower. At Victa we have done our very best to ensure that the Victa EnvirOmower will be one of the most trouble-free and satisfying pieces of equipment you have ever owned. The...

  • Page 3: Table Of Contents

    Table of Contents Safety & Handling Rules for Safe Operation Assembly Procedures Mower Components Assembly Maintenance & Care Battery Care and Charging Storage of Batteries Controls and Features Operating Instructions Getting Started Preparing Mower for Operation Grass Catcher Deflector (where supplied) Mulching Starting the Mower Cleaning...
  • Page 4 HANDLING Rules for Safe Operation VICTA ENVIROMOWER ENV369B & ENV369S CORDLESS ELECTRIC MOWER SAFETY & OPERATING INSTRUCTIONS WARNING: FOLLOW ALL SAFETY PRECAUTIONS!! AS WITH ANY ELECTRIC TOOL, SAFETY PRECAUTIONS SHOULD BE FOLLOWED TO REDUCE THE RISK OF ELECTRIC SHOCK, PERSONAL INJURY AND FIRE WHEN USING YOUR BATTERY ELECTRIC LAWN MOWER.
  • Page 5 HANDLING 13. Dress properly when operating the mower. Do not wear loose clothing and jewellery such as bracelets or necklaces which may get caught in the handle etc. Always wear solid shoes with non-skid rubber soles. Never operate the mower when barefoot or when wearing sandals.
  • Page 6 The Fine Print Victa reserves the right to discontinue, change and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at time of printing.

  • Page 7: Assemblyprocedures

    ASSEMBLYPROCEDURES Mower Components Figure 1 Mulch Plug Handlebar Lower Handlebars Connections Mower with Upper Handlebar Safety Key and 36mm Wrench Cutting & Mulching Blade Battery Charger Battery Pack Grass Catcher Components BATTERY MUST BE RECHARGED AFTER EACH USE! A battery will last longer if charged as soon as it is used. DO NOT DISCHARGE COMPLETELY AS THIS WILL DAMAGE THE BATTERY! 5183 LR00830A Enviromower V3 A2_9.indd 7 5183 LR00830A Enviromower V3 A2_9.indd 7...
  • Page 8 ASSEMBLYPROCEDURES Before beginning the assembly Please check that you have all of the components listed on Page 7, Figure 1. Note: Everything else in the box is for packing & shipping purposes only and can be discarded. Step 1. Attach the Lower Handlebar Figure 2 Note: For easier access, set the cutting height to the highest adjustment...
  • Page 9 ASSEMBLYPROCEDURES Figure 4 Step 3. Plug in Connecter Cable Fit the cable end into the connection at the handle, taking note there is a location notch for the correct placement. Screw the cable end into the handle (Figure 4) Step 4. Recharge the Mower Before First Use You must recharge the battery pack before the first use of the machine, or...
  • Page 10 ASSEMBLYPROCEDURES Figure 7 Figure 7 Clip Bottom of Bag as Shown onto Steel Frame Figure 8 Figure 8 Clip the sides of the Bag to the Steel Frame Figure 9 Figure 9 Clip Edge of Bag onto Plastic Top as Shown, Working along right around the Plastic Top Figure 10 Figure 10 Complete Catcher...
  • Page 11 Do not operate your mower until you have read and understood all instructions and the battery pack has been fully charged. Battery Pack Victa Enviromower The battery pack in your Cordless Rechargeable, Battery Powered Mower is composed of two completely sealed 12V lead acid batteries inside a pack connected serially to a 24V motor.
  • Page 12 Under normal conditions the battery should run for approximately 30 to 50 minutes per use. The length of time depends on the length, density and dampness of the grass. If you generally intend to use your mower and trimmer for a long duration Victa recommends that you purchase an extra battery.
  • Page 13 Figure 11a Figure 11b Storage of Batteries • Do not store the batteries close to a source of heat, sparks, or open flames. • The ambient temperature must be within -20° C to +40° C temperature range. The lower the storage temperature is (within this range) the better it is. •...
  • Page 14 Controls & Features Make yourself, and all other operators, familiar with the controls, parts and operation of the Cordless Electric Mower before using it. Figure 12 Operator Presence Start Button Light Control Lever Discharge Guard Handlebar Securing Fixtures Mower/Auxiliary Battery Cover Switch Optional Attachment...
  • Page 15 OPERATINGINSTRUCTIONS Getting Started Safety Key Figure 13 The safety key must be inserted to run the motor, as it has a built-in circuit to protect the motor. When the built-in circuit breaker is tripped, the white button on top of the safety key will pop up.

  • Page 16: Preparing Mower For Operation

    OPERATINGINSTRUCTIONS Preparing Mower for Operation Cutting Height Adjustment Lever. REMINDER: The safety key, with its built-in circuit breaker, should never be inserted during assembly, adjustments, cleaning, blade replacement, or when the mower is not in use. Removing the safety key will prevent accidental starting and help avoid serious personal injury.

  • Page 17: Grass Catcher

    OPERATINGINSTRUCTIONS Grass Catcher NOTE: The grass catcher is shipped unassembled. See ASSEMBLE THE GRASS CATCHER on Page 9. TO ATTACH THE GRASS CATCHER: (Remove the safety key first) 1. Raise the hinged discharge guard on the rear of the mower. 2.

  • Page 18: Mulching

    OPERATINGINSTRUCTIONS Mulching Figure 16 Mulching (Remove the safety key first) 1. Remove the grass catcher from the mower (if fitted) 2. Install the mulching plug as shown in Fig 16. (Be sure to push the plug all the way in until the notch in its bottom is engaged.) 3.

  • Page 19: Starting The Mower

    OPERATINGINSTRUCTIONS Starting the Mower ENV369B model Warning! Starting, stopping and restarting the electric motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. Note: Be sure to check the Mower/Auxiliary Switch is on the Mower Setting. 1.

  • Page 20: Cleaning

    OPERATINGINSTRUCTIONS Starting the Mower ENV369S model Warning! Starting, stopping and restarting the electric motor repeatedly within a few seconds can generate a great deal of heat and damage the motor. Note: Be sure to check the Mower/Auxiliary Control Switch is on the Mower Setting. ENV369S 1 Lock Switch 2 Presence Control Bar...

  • Page 21: Removing And Attaching Blade

    OPERATINGINSTRUCTIONS Removing and Attaching Blade Always check the blade for sharpness, damage, and tightness before and after each use. Replace the blade promptly if it has been bent or damaged. To Remove Blade: 1. Remove safety key and take out the battery pack. 2.

  • Page 22: Blade Sharpening

    OPERATINGINSTRUCTIONS Blade Sharpening Keep mower blade sharp for best performance. A dull blade will not only cut the grass unevenly but it will also cause the battery to discharge more quickly. Two ways to sharpen a blade: 1. Sharpen the blade on the mower with a fine tooth file or a sharpening stone. 2.

  • Page 23: Blade Balancing

    OPERATINGINSTRUCTIONS Blade Balancing A lawn mower blade must be balanced or it will cause vibration when the motor is running. Excessive vibration will cause damage to the mower, especially the motor, and it is also a safety hazard. New blades are balanced at the factory. When sharpening a used blade, care must be taken to keep it balanced.
  • Page 24 Troubleshooting Problem: Mower does not start when the safety key is inserted, switch button and operator or presence control lever are depressed Possible Causes • Check to make sure the safety key has been inserted properly • Remove safety key, turn mower over on the side and check the blade is not obstructed •...
  • Page 25 Troubleshooting Problem: Mower is hard to push Possible Causes • Mower is trying to cut too much grass. Raise cutting height • Remove safety key, turn mower over and check if all wheels rotate freely and check them for damage Problem: Motor will not stop when operator presence control lever is released Possible Causes...
  • Page 26 Victa Lawncare Pty Ltd shall not be liable under any circumstances for any incidental or consequential damages or expenses of any kind, including, but not limited to, cost of equipment rentals, or cost of hiring services to perform tasks normally performed by the Victa Enviromower Cordless, Rechargeable, Battery Powered Mower.
  • Page 27 NOTES 5183 LR00830A Enviromower V3 A2_9.indd 27 5183 LR00830A Enviromower V3 A2_9.indd 27 25/2/09 12:05:52 PM 25/2/09 12:05:52 PM...
  • Page 28 Victa Lawncare Pty Limited ACN 008 627 110 ABN 22 008 627 110 Australian Head Office New Zealand Office International Locked Bag 4096 P.O. 12463 Please visit Milperra BC NSW 1891 Penrose, Auckland www.victa.com P: 1800 356 632 P: 09 912 0747...
