AXIOMTEK AX93A21 Quick Installation Manual

Applications

The CN10/CN11 are PoE-PSE (Power Over Ethernet-Power Sourcing
Equipment) ports which is compliant with IEEE802.3at standard, providing
both data connection and electrical power to PoE-PD (Power Over
Ethernet-Powered Devices).

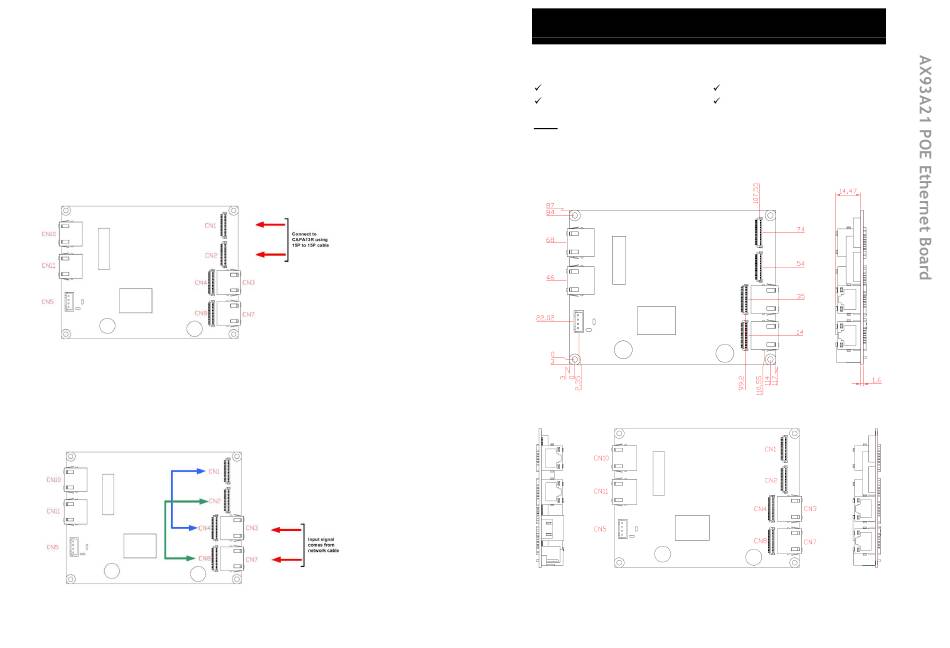

Connection - 1

(1). Connect CN5 to DC 12V power source.
(2). Network signal comes from CPU board. The AX93A21 is connected to
CPU board (i.e. CAPA13R) through CN1/CN2 using 15P-to-15P cable,
see image below.
(3). After (1) and (2), the CN10/CN11 are available to connect the PoE-PD.

Connection - 2

(1). Connect CN5 to DC 12V power source.
(2). Input signal comes through CN3/CN7 from network cable. Connector
CN4 is connected to CN1, CN8 to CN2 by using 15P-to-15P cable.
Please be warned this connection as the below is not allowed to
change.
(3). After (1) and (2), the CN10/CN11 are available to connect the PoE-
PD.
4 94193A21000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 January 2020
Printed in Taiwan
AX93A21 Quick Installation Guide

Checklist

PoE Board x1 or PoE Box x1
Heatsink x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

Dimension and Fixing Holes

Board Layout

94193A21000E
©
Copyright 2020 Axiomtek Co., Ltd.
Version A1 January 2020
Printed in Taiwan
Quick Installation Guide x1
15P-to-15P cable x2
1
