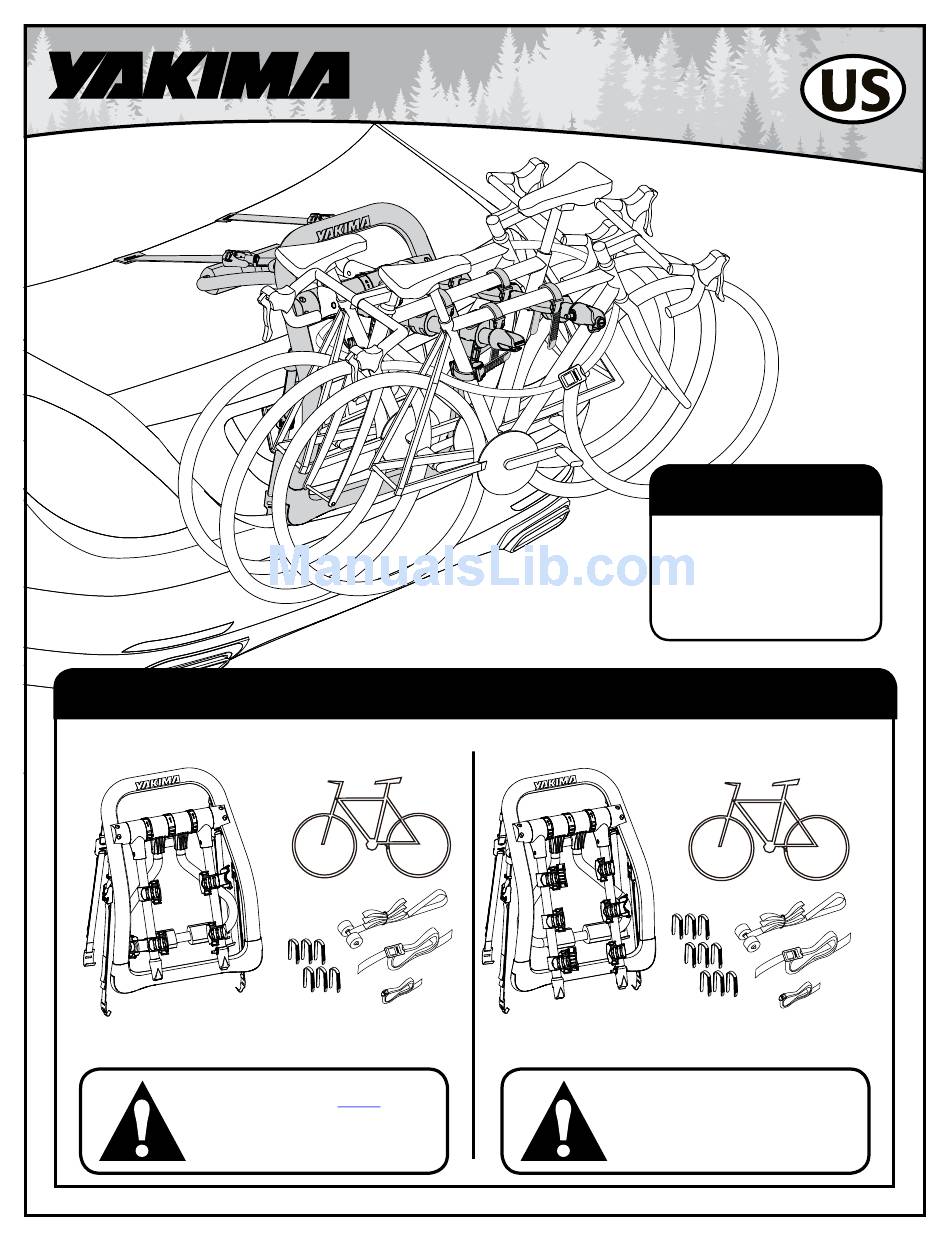

CONTENTS
2X
3X
1X
1X
1X
1X
1X
1X
1X
6X
9X
1X
FullBack (2 Bike)
FullBack (3 Bike)
30 lbs / 13.6 kg max per bike.
35 lbs / 15.9 kg max per bike.
70 lbs / 31.75 kg total.
90 lbs / 40.8 kg total.
1035059C-1/42
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yakima FullBack
Summary of Contents for Yakima FullBack
- Page 1 Required for bikes with step- through/Ladies frames or bikes with slanted top tubes. Part #8002531 CONTENTS FullBack (2 Bike) FullBack (3 Bike) 30 lbs / 13.6 kg max per bike. 35 lbs / 15.9 kg max per bike. 70 lbs / 31.75 kg total.
- Page 2 INSTALLATION Clean the vehicle HUB SETTING FIT NOTES Set the hub HUB SETTING • Rotate the center dial toward the unlock icon and raise the upper frame arm. • Set its position to the HUB SETTING determined in step 1. •...
- Page 3 TO USE ANCHORS FOR PROCEED TO STEP 5. THE TOP HOOkS? • Using your body to help support the FullBack Attach top hooks attach both top strap hooks around the top edge of the trunk lid, hatch lid or rear door.
- Page 4 TOP HOOkS: Anchor installation instructions Confirmed your vehicle does not require Anchors? Skip this page. Make sure the anchor is free from contact between hatch door and vehicle’s frame WARNING: DO NOT REST THE ANCHORS AGAINST GLASS. 1035059C-4/42...
- Page 5 Anchor installation instructions on page 6. • DO NOT ATTACH THE BOTTOM HOOKS TO GLASS. Use the Glass Hatch Hooks (sold separately - (Yakima Product Number 8002612). • REMOVE HOOkS BEFORE OPENING THE HATCH OR TRUNk! Opening the hatch or trunk with hooks installed could cause damage to the vehicle.
- Page 6 BOTTOM HOOkS: Anchor installation instructions BOTTOM HOOKS: Anchor installation instructions Confirmed your vehicle does not Confirmed your vehicle does not require require Anchors? Skip this page. Anchors? Skip this page. REMOVE THE CARRIER FROM THE CAR. BEFORE CLOSING THE TRUNk: Be sure the pads are free from contact between trunk door...
- Page 7 Fully Tighten top straps Do not pull upper • Using ample force pull both top straps toward the straps sideways! front of the vehicle to fully tighten the top straps. • Store the extra straps using the rubber strap storage bands. Fully Tighten bottom straps •...
- Page 8 Test installation Grasp the FullBack and test that it’s securely fastened to the vehicle by trying to move it in all directions. FULLBACk SHOULD NOT MOVE! Any Contact with a spoiler is unacceptable. LOADING Raise the support arms • Rotate the left and right dials toward the unlock icon and raise the support arms.
- Page 9 Alternate bike directions to avoid interference. A Yakima TubeTop (see cover page) may be required to carry your bike safely. Failure to load bikes properly can result in property damage, personal injury, or death.
- Page 10 FullBack frame. • Secure loose strap end. Lock bikes Now that you’ve installed your Yakima FullBack take a moment to enjoy the beverage of your choice. Use the built in bottle openers to crack open a cold one! 1035059C-10/42...
- Page 11 UNLOADING Remove the Remove the ZipStrips safety strap. Unload the bikes. Rotate the left and right dials toward the unlock icon and carefully lower the support arms. 1035059C-11/42...
- Page 12 Press the button on the buckle and release some tension from the straps • Unhook the bottom hooks. • While using your body to support the FullBack remove the top hooks. Carefully remove the FullBack from the vehicle. Rotate the center...
- Page 13 FULLBACk WEiGHT Be sure to read all the 2 Bike Rack = 21 lbs (9.5kg) warnings and warranty information contained in 3 Bike Rack= 23 lbs (10.5kg)
- Page 14 Do not allow straps to materials. contact spoiler. RECoMMEnDED ACCESSoRiES (SoLD SEPARATELY) YAkIMA 9ft Security caBle TRUNk SECURITY STRAP (YAkIMA PART NUMBER 8007233) (YAkIMA PART NUMBER 8002623) Secures your bikes to your carrier. Secures your carrier to your vehicle.
