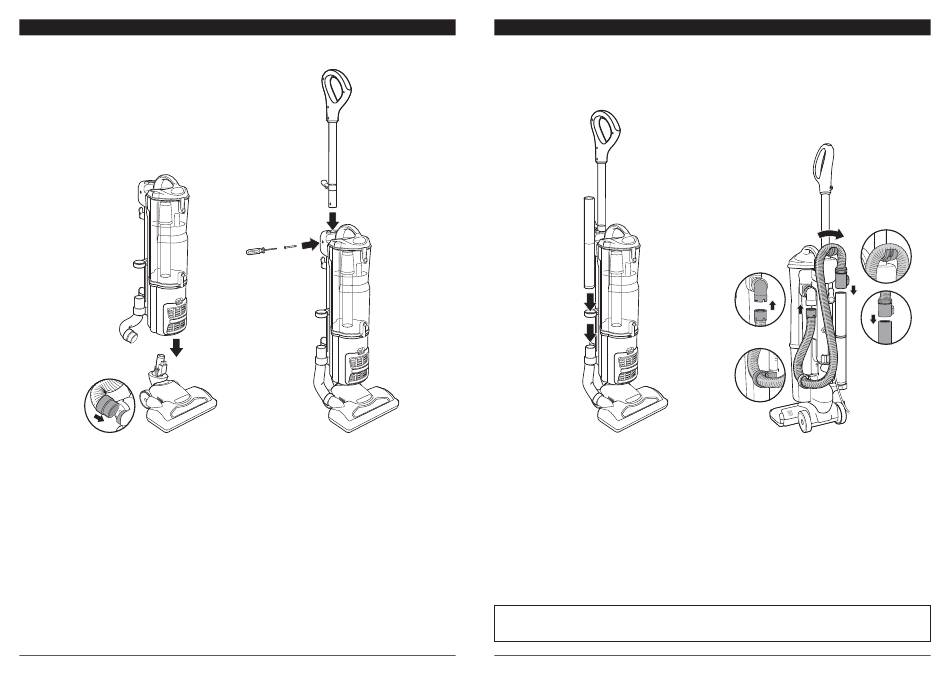

1. Place Vacuum Pod onto Floor Nozzle Post until it clicks into place. With vacuum in
the upright position, connect the Nozzle Hose from the pod to the Floor Nozzle.
Push with a slight turning motion to create a snug fit.
2. Slide Handle into the top of the pod. Align the hose holder on the handle with
the cord hooks on the back of the pod. Secure handle assembly in place with
included bolt.
s h a r kc l e a n . c o m
ASSEMBLY
2
1
3
3. Insert the Extension Wand through the ring and into the top of the nozzle hose.
4. Attach Flexible Hose:
a. Insert hose into Swivel Connector until it clicks into place.
b. Route hose through anti-tip hook to prevent vacuum from tipping.
c. Run hose over upper holder.
d. Insert hose securely into top of extension wand.
5. You can store cleaning tools on the Accessory Post on the back of the pod.
For proper operation, ensure all parts are firmly clicked into place.
NOTE: The hose must be securely attached to the wand to enable suction to reach the floor nozzle.
NOTE: Not all accessories come with all units. For a list of the accessories included with this model, see the top inside
flap of the box. To order additional accessories, visit sharkaccessories.com.
ASSEMBLY
4
a
b
s h a r kc l e a n . c o m
c
d
