Electrical Wire Diagram - Pit Boss PLATINUM LAREDO 1000 Manual

The Digital Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical
shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
PB – ELECTRIC REQUIREMENTS
110-120V, 60HZ, 275W, 3-PRONG GROUNDED PLUG
NOTE: Electrical components, passed by product safety testing and certification services, comply
with a testing tolerance of ± 5-10 percent.
j
GROUNDED
FUEL INPUT RATING:
POWER CORD
2.0 KG/H (4.4 LB/H)
VW-1, 105°C/221°F,
18-3 STANDARD CSA
IGNITOR ASSEMBLY /
INDEX
HD CARTRIDGE HEATER
200W, 120V, 2.6 AMP
K : BLACK
0.375" X 5.000"
W : WHITE
R : RED
Y : YELLOW
P : PURPLE
O : ORANGE
G : GREEN

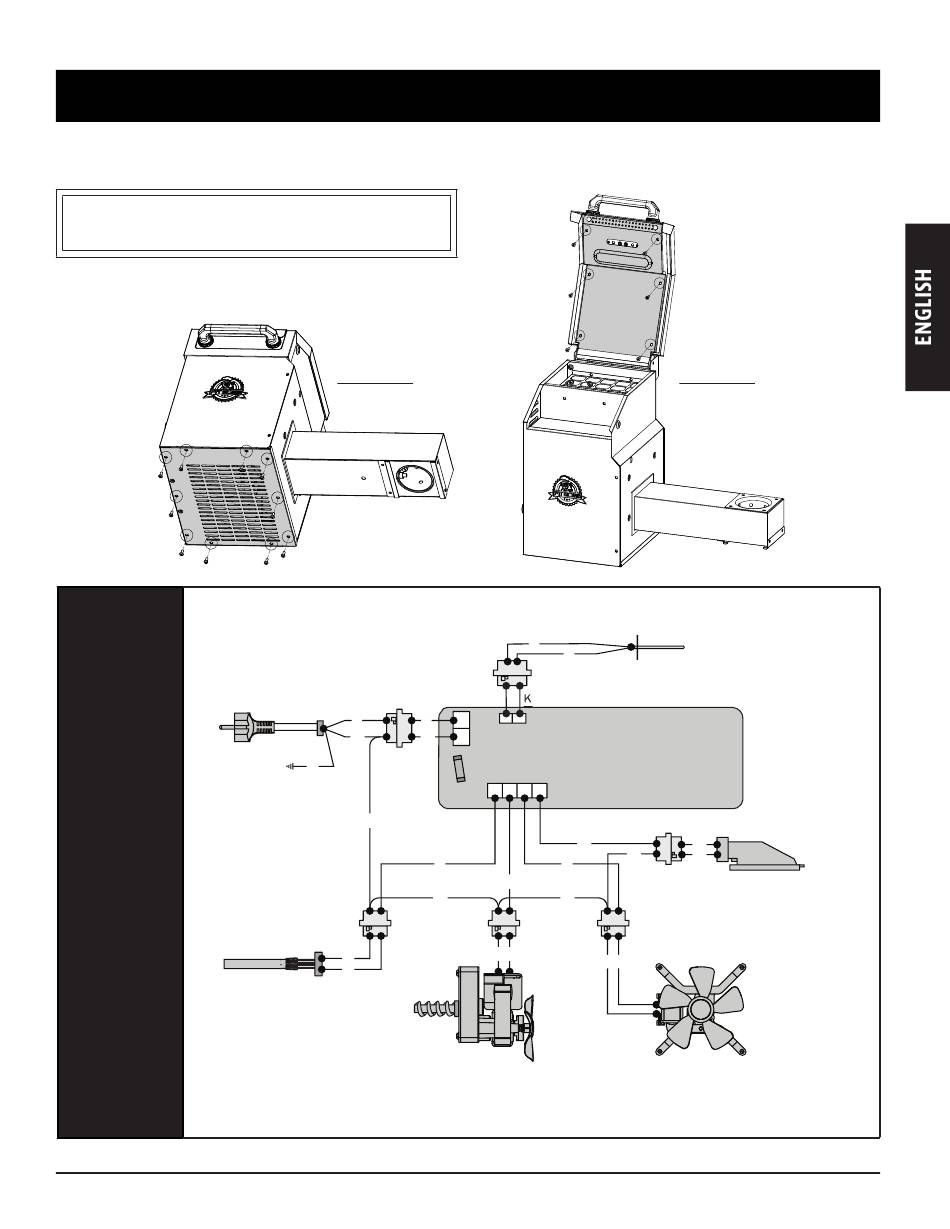

ELECTRICAL WIRE DIAGRAM

Locate and remove
the ten screws of
access panel on
underside of unit.
K K
W W
G
GROUND
W
P
W
W
W
AUGER MOTOR
& FEED SYSTEM
120V, 50/60HZ,
0.22 AMP, 2 RPM MOTOR
k
GRILL PROBE
W
W
R
O
W
Y
R
W
R R
Y Y
DRAFT FAN
120V, 50/60HZ,
0.1 AMP, 1 PHASE
Locate and remove
the six screws of
access panel on
underside of
hopper lid.
CONTROL
BOARD
W
W
LIGHT
120V, 25W
