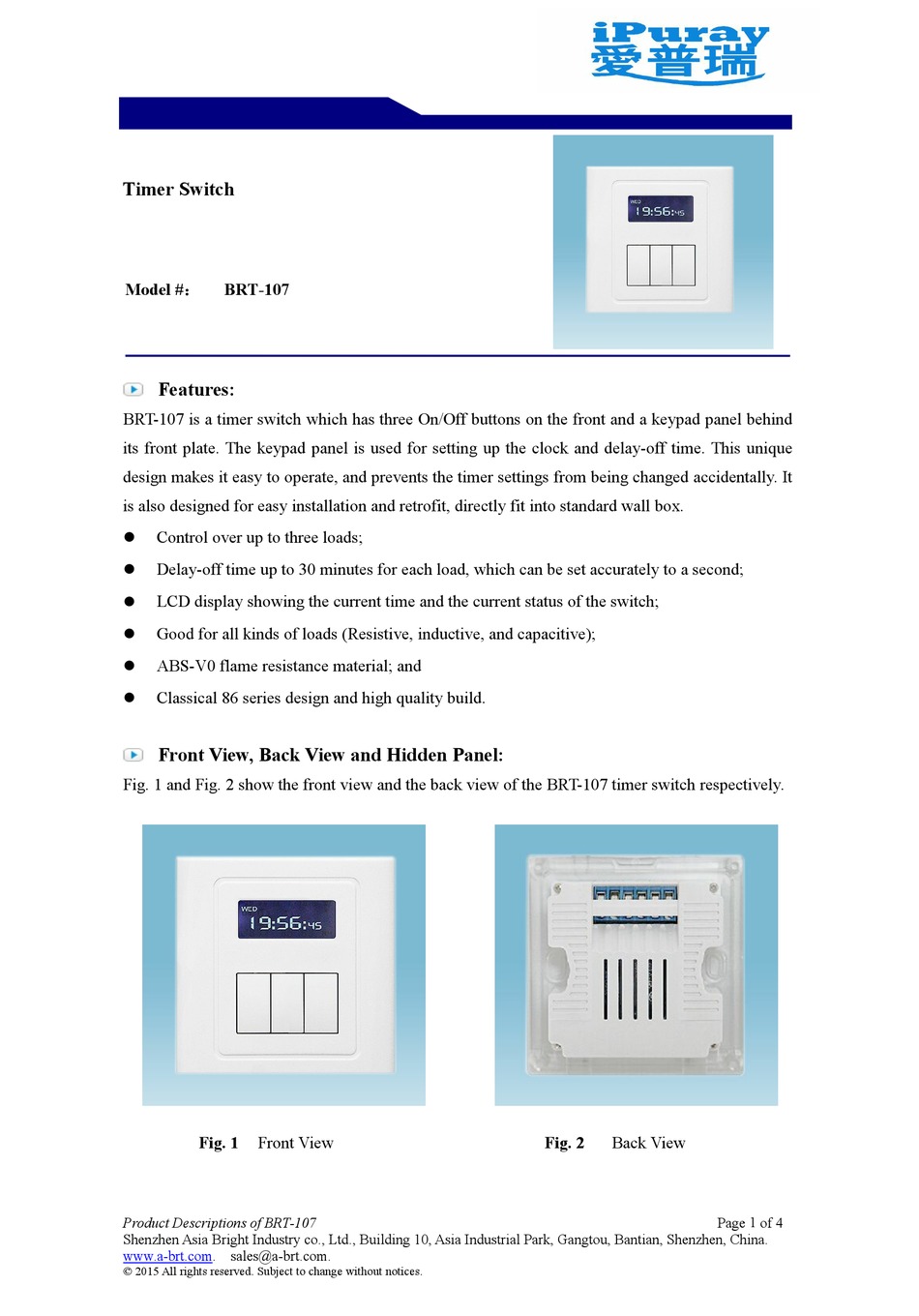

iPuray BRT-107 Manual

Timer Switch
Model #： BRT-107

Features:

BRT-107 is a timer switch which has three On/Off buttons on the front and a keypad panel behind
its front plate. The keypad panel is used for setting up the clock and delay-off time. This unique
design makes it easy to operate, and prevents the timer settings from being changed accidentally. It
is also designed for easy installation and retrofit, directly fit into standard wall box.
 Control over up to three loads;
 Delay-off time up to 30 minutes for each load, which can be set accurately to a second;
 LCD display showing the current time and the current status of the switch;
 Good for all kinds of loads (Resistive, inductive, and capacitive);
 ABS-V0 flame resistance material; and
 Classical 86 series design and high quality build.

Front View, Back View and Hidden Panel:

Fig. 1 and Fig. 2 show the front view and the back view of the BRT-107 timer switch respectively.
Fig. 1 Front View
Product Descriptions of BRT-107
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Back View
