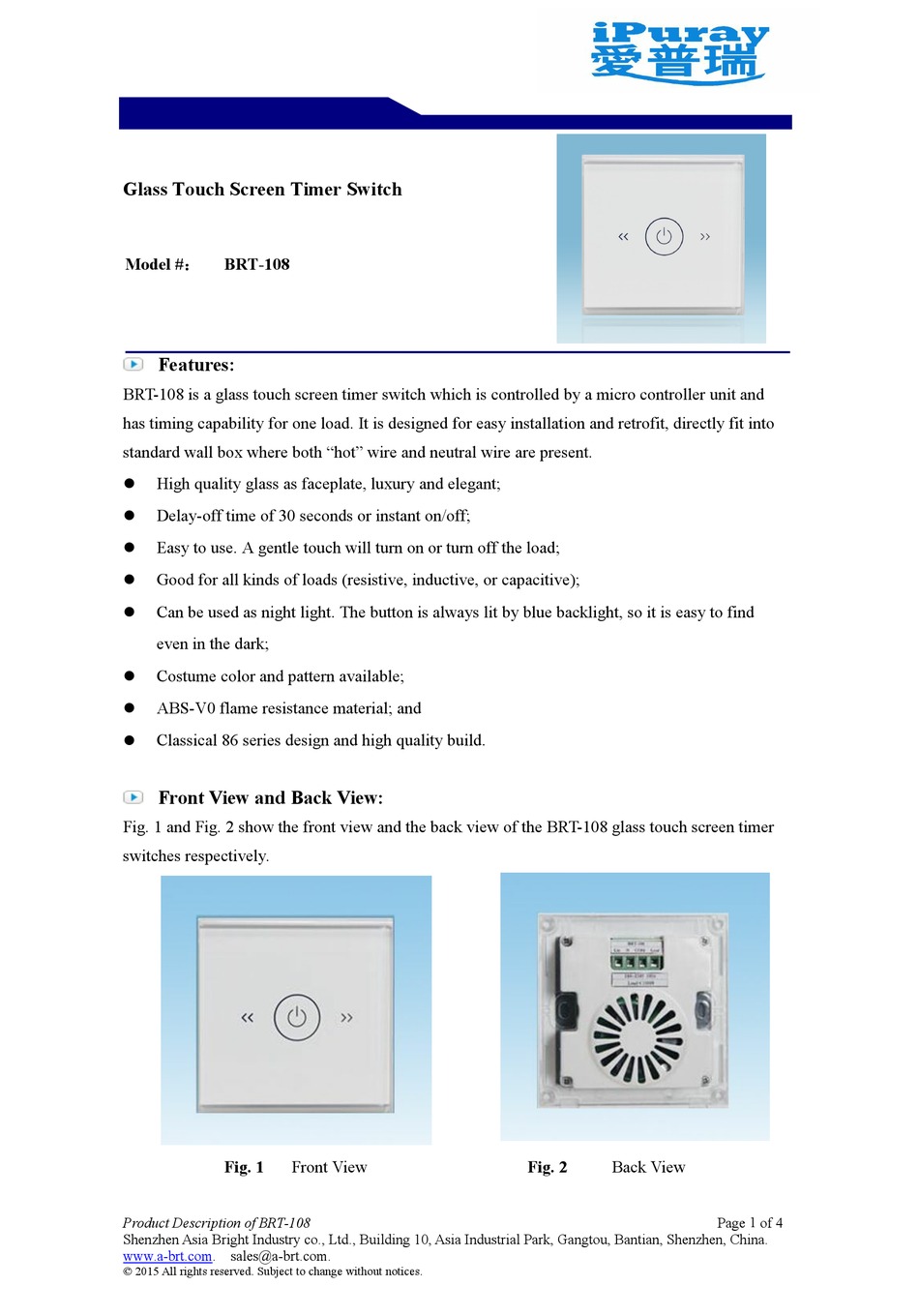

Glass Touch Screen Timer Switch
Model #:
BRT-108

Features:

BRT-108 is a glass touch screen timer switch which is controlled by a micro controller unit and
has timing capability for one load. It is designed for easy installation and retrofit, directly fit into
standard wall box where both "hot" wire and neutral wire are present.
High quality glass as faceplate, luxury and elegant;
Delay-off time of 30 seconds or instant on/off;
Easy to use. A gentle touch will turn on or turn off the load;
Good for all kinds of loads (resistive, inductive, or capacitive);
Can be used as night light. The button is always lit by blue backlight, so it is easy to find
even in the dark;
Costume color and pattern available;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Front View and Back View:
Fig. 1 and Fig. 2 show the front view and the back view of the BRT-108 glass touch screen timer
switches respectively.

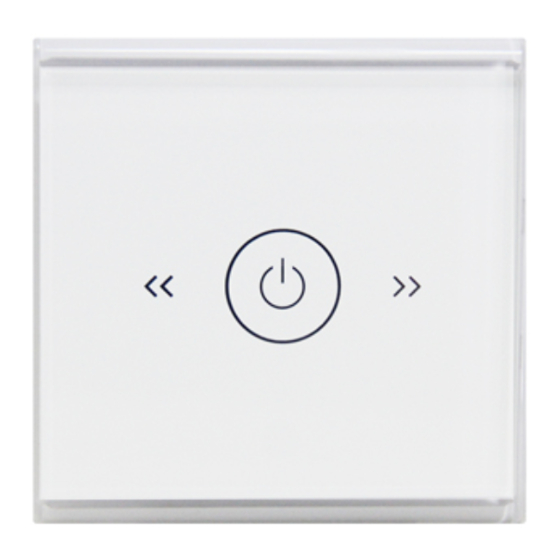

Fig. 1
Front View
Product Description of BRT-108
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2
Back View
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRT-108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iPuray BRT-108

  • Page 1  Classical 86 series design and high quality build. Front View and Back View: Fig. 1 and Fig. 2 show the front view and the back view of the BRT-108 glass touch screen timer switches respectively. Fig. 1 Front View Fig.
  • Page 2 86mm x 86mm x 36mm Weight 140g Wiring Diagram and Installation Guide: BRT-108 glass touch screen timer switch requires both hot wire and neutral wire for installation: Hot wire (ACL): Coming from the power line with 220V; Neutral wire (ACN): Usually coming with the hot wire;...
  • Page 3 BRT-108 Operation Guide:  Switch on/off the load: After BRT-108 is powered on, touching the button will turn on or turn off the load respectively (If delay off function is activated, the load will be turned off after 30 seconds).
  • Page 4 Applications: BRT-108 glass touch screen timer switch can be used for automatically turning on and/or turning off various loads, especially for high power loads such as fans, lights, appliances, or other kinds of electrical equipment. They are perfect for saving energy and bringing convenience and safety to our daily life and work.
