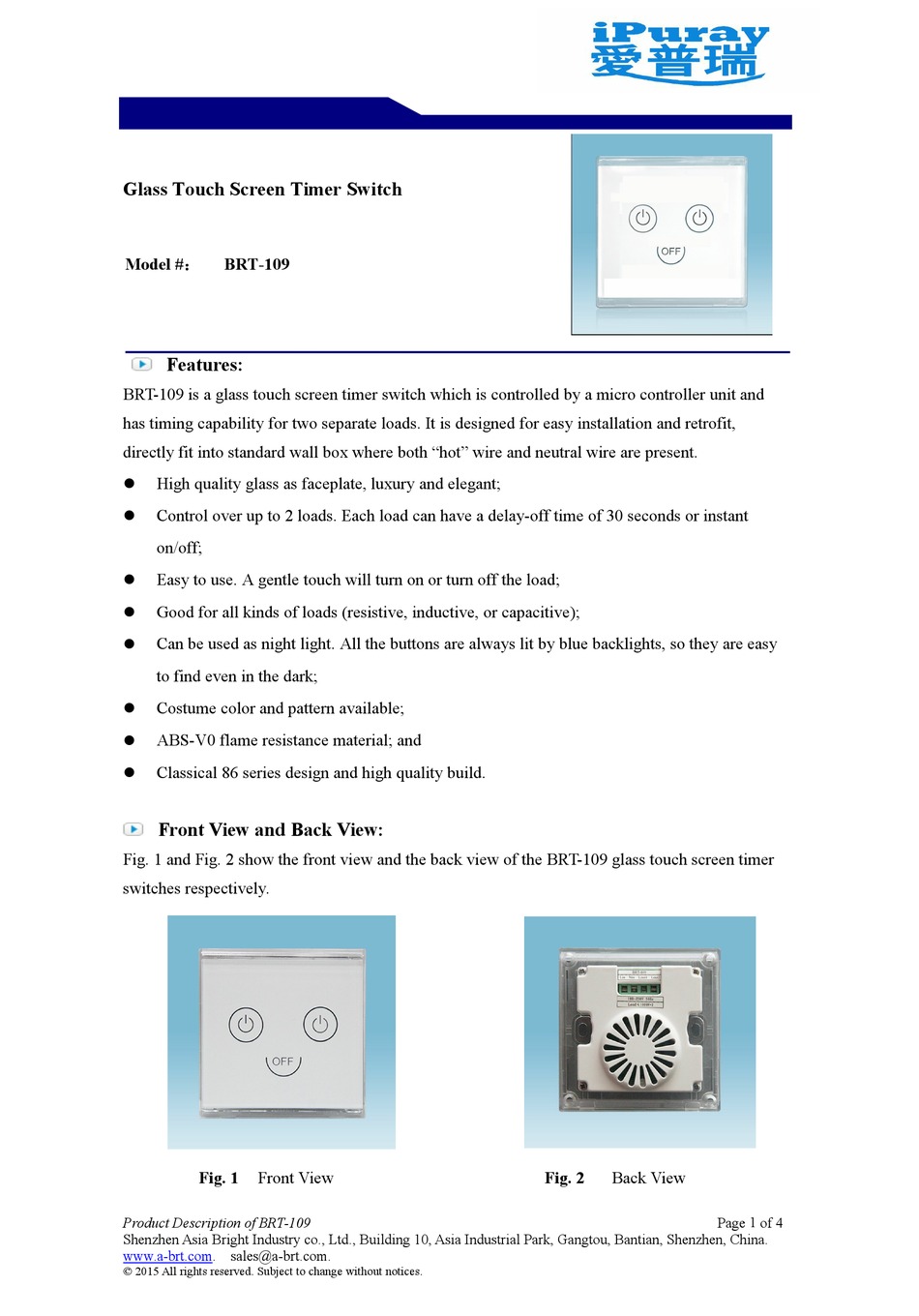

iPuray BRT-109 Quick Start Manual

Glass Touch Screen Timer Switch
Model #： BRT-109

Features:

BRT-109 is a glass touch screen timer switch which is controlled by a micro controller unit and
has timing capability for two separate loads. It is designed for easy installation and retrofit,
directly fit into standard wall box where both "hot" wire and neutral wire are present.
 High quality glass as faceplate, luxury and elegant;
 Control over up to 2 loads. Each load can have a delay-off time of 30 seconds or instant
on/off;
 Easy to use. A gentle touch will turn on or turn off the load;
 Good for all kinds of loads (resistive, inductive, or capacitive);
Can be used as night light. All the buttons are always lit by blue backlights, so they are easy

to find even in the dark;
 Costume color and pattern available;
 ABS-V0 flame resistance material; and

Classical 86 series design and high quality build.

Front View and Back View:

Fig. 1 and Fig. 2 show the front view and the back view of the BRT-109 glass touch screen timer
switches respectively.
Fig. 1 Front View
Product Description of BRT-109
Shenzhen Asia Bright Industry co., Ltd., Building 10, Asia Industrial Park, Gangtou, Bantian, Shenzhen, China.
www.a-brt.com. sales@a-brt.com.
© 2015 All rights reserved. Subject to change without notices.
Fig. 2 Back View
