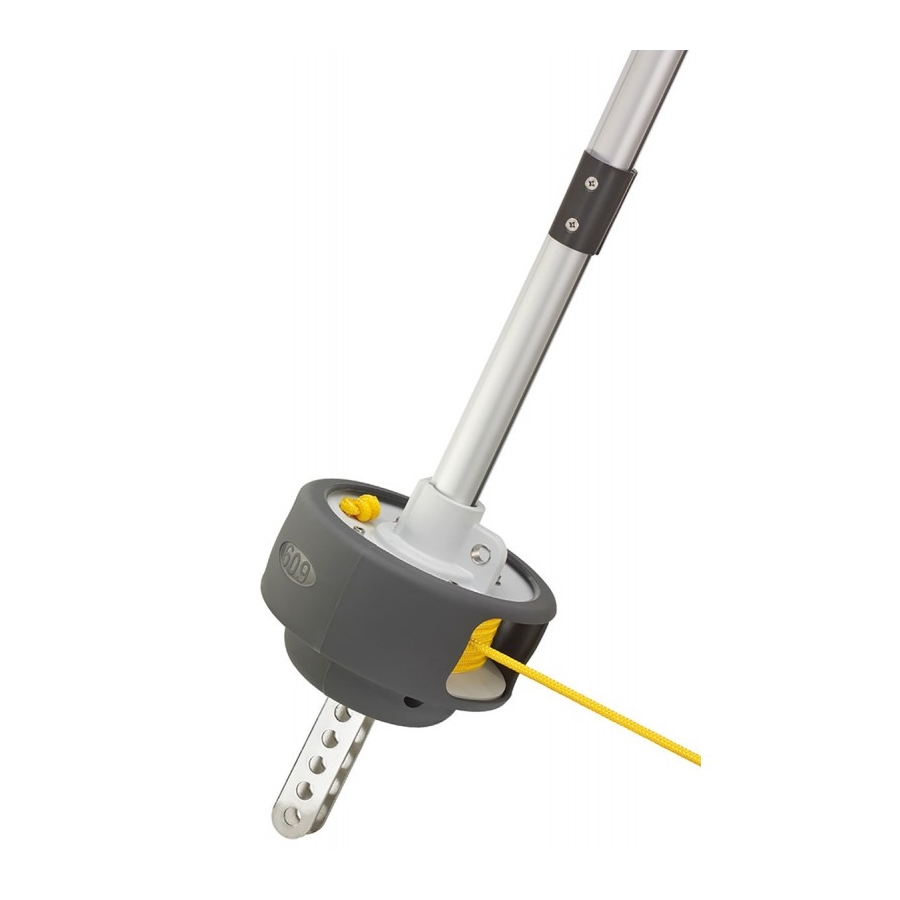

Plastimo 406-S Owner's Manual
  1. Manuals
  2. Brands
  3. Plastimo Manuals
  4. Boating Equipment
  5. 406-S
  6. Owner's manual

Plastimo 406-S Owner's Manual

Jib reefing
Hide thumbs Also See for 406-S:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
406-S
609-S
811-S
JIB REEFING - OWNER'S MANUAL
GB
ENROULEUR DE FOC - NOTICE D'UTILISATION
F
ROLLREFFANLAGE - AUFBLASBARE RETTUNGSWESTEN
D
ROLREEFSYSTEEM - GEBRUIKERSHANDLEIDING
NL
ENROLLADOR - GUIA DE UTILIZACION
E
RULLFOCKSYSTEM - INSTRUKTIONER OCH HANDHAVANDE
S
AVVOLGITORE - MANUALE D'USO
I
Plastimo - 15, rue Ingénieur Verrière - 56100 Lorient - FRANCE

Advertisement

loading
Need help?

Need help?

Do you have a question about the 406-S and is the answer not in the manual?

Questions and answers

Related Manuals for Plastimo 406-S

Summary of Contents for Plastimo 406-S

  • Page 1 JIB REEFING - OWNER'S MANUAL ENROULEUR DE FOC - NOTICE D'UTILISATION ROLLREFFANLAGE - AUFBLASBARE RETTUNGSWESTEN ROLREEFSYSTEEM - GEBRUIKERSHANDLEIDING ENROLLADOR - GUIA DE UTILIZACION RULLFOCKSYSTEM - INSTRUKTIONER OCH HANDHAVANDE AVVOLGITORE - MANUALE D'USO Plastimo - 15, rue Ingénieur Verrière - 56100 Lorient - FRANCE...
  • Page 2 All manuals and user guides at all-guides.com...
  • Page 3 All manuals and user guides at all-guides.com ØB ØA Ø31 Ø200 Ø190 Ø145 ØH ØH ØH 406-S 609-S 811-S Terminal- Stagspanner- stevenplaa- spanschroe- tensor chainplate turnbuckle latte ridoir placas Landre Arridatoi tuitvoering fuitvoering montage montage 406-S 25722 25723 25722 25723...
  • Page 4 All manuals and user guides at all-guides.com 406-S 1 Trumma med 1 drum unit 1 ensemble tambour 1 Trommel 1 roltrommel 1 conjunto tambor 1 insieme tamburo revlinematare 1 halyard swivel 1 émerillon 1 Fallwirbel 1 valwartel 1 giratorio 1 Fallsvirvel...
  • Page 5 All manuals and user guides at all-guides.com 609-S 1 drum unit 1 ensemble tambour 1 Trommel 1 roltrommel 1 conjunto tambor 1 Trumma 1 insieme tamburo 1 halyard swivel 1 émerillon 1 Fallwirbel 1 valwartel 1 giratorio 1 Fallsvirvel 1 mulinello 1 boltrope prefeeder 1 guide ralingue 1 Liekeinführung...
  • Page 6 All manuals and user guides at all-guides.com 811-S 1 insieme tamburo 1 conjunto tambor 1 Trumma 1 drum unit 1 ensemble tambour 1 Trommel 1 roltrommel 1 giratorio 1 halyard swivel 1 émerillon 1 Fallwirbel 1 valwartel 1 Fallsvirvel 1 mulinello 1 boltrope prefeeder 1 guide ralingue 1 Liekeinführung...
  • Page 7 All manuals and user guides at all-guides.com ASSEMBLY INSTRUCTIONS FOR S-SERIES 406-S 609-S 811-S I N D E X 1/ TECHNICAL SPECIFICATIONS 406-S, 609-S, 811-S 2/ DESCRIPTION OF SPECIFIC PARTS FOR EACH MODEL 2.1 - 406-S 2.2 - 609-S 2.3 - 811-S...
  • Page 8 All manuals and user guides at all-guides.com 4.1 - Dismanting the forestay 4.1.1 - Lower part - Slacken the backstay - Secure the mast forward with 1 or 2 halyards - Tigthen the halyards to relieve the strain on the forestay slackened - Dismantle the lower part of the forestay (this usually consists of removing a removing a backstay...
  • Page 9 All manuals and user guides at all-guides.com - Slide the base spar into the drum unit until the two holes are in line, insert the M5x12 screw (after putting some silicone filler in the hole in order to reduce the stainless steel / aluminium electrolytic couple) and tighten. - Install the boltrope prefeeder;...
  • Page 10 All manuals and user guides at all-guides.com 4.4 Installing the top end stop - Slot the second bearing into the top end stop - Slide the top end stop over the aluminium spar - Drill a hole (with a Ø4 mm drill). IMPORTANT: refer to diagram for the positioning of the top end stop - Before putting the screw into position, do not forget to slide the halyard swivel into place (ensure that the conical end of the halyard swivel faces downwards) - Put the top end stop back into position...

  • Page 11: Assembling The Top End Stop

    All manuals and user guides at all-guides.com 5.2 - CUTTING THE LAST SPAR - Stretch out flat the piece of rope used to measure the length of the forestay - Lay the aluminium spars parallel to the piece of rope (take note of base spar, see page 7) - Mark the spar level with the mark on the piece of rope - Cut the spar 3 cm (safety margin) below the mark 5.3 - ASSEMBLING THE TOP END STOP...
  • Page 12 All manuals and user guides at all-guides.com - Refasten the forestay - Attach a halyard to the halyard swivel in order to support the spars as they are assembled - Insert a coupling sleeve - Put some silicone filler into the holes before tightening the screws (in order to reduce the electrolytic couple between the stainless steel screw and the aluminium) - Insert an M5 x 8 screw - Wipe away any excess silicone with a cloth...

  • Page 13: Assembling The Drum Unit

    5.9 - ADJUSTING THE REEFING LINE FEEDERS 5.9.1 - 406-S model - The reefing line feeder on the 406-S model is assembled either on the right or left hand side of the drum unit, depending on which direction you prefer to reef.

  • Page 14: Maintenance

    All manuals and user guides at all-guides.com 6/ Recommandations Reefing line feeders The angle of all the reefing line feeders may be adjusted. IMPORTANT: they should be positioned in a way that best suits the direction of pull on the line Reefing line The reefing line is wound around the drum.
  • Page 15 All manuals and user guides at all-guides.com PROBLEM ENCOUNTERED CAUSES SOLUTIONS Halyard turns with the halyard swivel - Forestay not taut enough - tighten the backstay - Genoa halyard too slack - tauten the genoa halyard - Genoa too short, halyard swivel too low - Use a strop - Genoa halyard too close to the forestay - Fasten a halyard feeder to the mast or a...
