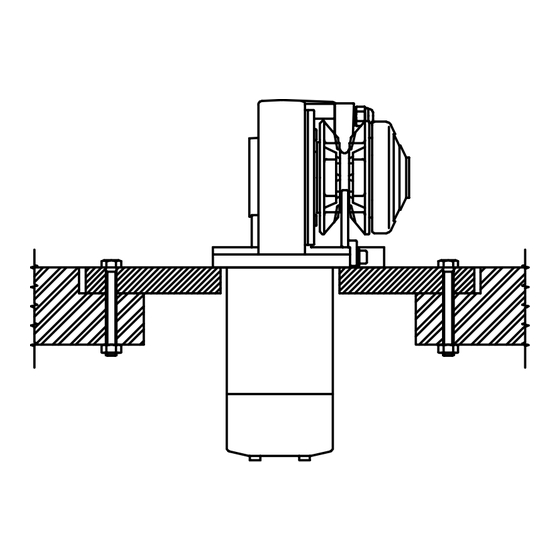

Plastimo PWH 500 – PWH 500F
MOUNTING , OPERATION AND MAINTENANCE INSTRUCTIONS

Important safety informations

Warranty

Model classification

Electric plant

IMPORTANT ADDITIONAL INFORMATION CONCERNING SAFETY ASPECTS OF YOUR ANCHOR WINDLASS
This product is not designed as a strong point to fasten your anchor rode. Fasten the anchor rode to a strong point such as a mooring cleat or similar.
We recommend to use teh vessel's engine to raise the anchor quickly.
Install always the properly rated circuit breaker to protect the electric plant and the motor from overheating and damages.
Always turn off the main switch, when the product is not in use, to prevent accidental engagement of the product.
Always keep hands and feet away from an operating windlass.If a jam occurs, turn the windlass off at the main switch before clearing the anchor rode.
Do not use the windlass for different purposes it was designed for.
WARRANTY
Plastimo warrants this product for a period of 2 years subjected to the conditions listed below :
1. The product must be registered. The registration must be done within 30 days from the date of purchase by one of these options : online going
to the web site www.plastimo.com
completed registration card attached to the instruction manual.
2. This warranty starts from the date of purchase of the product from the original purchaser. If the product is first equipment of a new boat the
warranty starts from the date of purchase of the boat.
3. This warranty covers original defects in material and workmanship.
4. This warranty is limited to the repair and/or the replacement of the original detective part.
5. The claim of warranty must be promptly notified in writing and sent by fax or e-mail to Plastimo providing the serial number of the product and
the registration warranty number. Plastimo reserves the right to require the proof of purchase of the product to accept the claim of warranty.
6. The defective part/product must be returned to Plastimo. List of authorised distributors is available on the web site www.plastimo.com.
7. This warranty does not cover failures due to : use of the product in applications for which they are not intended , corrosion , normal wear and
tear , discolouration , unauthorised alteration of the product , improper installation , incorrect use or maintenance of the product , conditions that
exceed the product's performance specifications.
8. This warranty does not cover any loss or damages to the original purchaser due to a proven non conformity of the product with the exception of
the cases ruled by the French law.
9. Plastimo reserves the right to disclaim the warranty in case the product be controlled by improper electric devices and/or in case of non
Installation of a proper circuit breaker on the electric power line.
The consumer statutory rights are not affected by this warranty according to the national legislation, disciplining the sale of goods. This warranty is ruled by
the French law. For every controversy the Court of Lorient is competent exclusively.
MODEL CLASSIFICATION
FOR YOUR OWN SAFETY PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING OR USING YOUR WINDLASS.
Fill in this form to obtain a complete classification of the installed model.
MODEL 42979
MOTOR 500 Watt 12 Volt
CHAIN
∅6 Iso – Din 766
ROPE
∅12 mm – ½"
ELECTRIC PLANT
Check that the motor tension corresponds to the electric plant on board. The following schedule shows the suggest minimum battery feeding of the
windlass , the minimum suggested cable section and the proper circuit breaker to install on the power line.
MOTOR
500 Watt 12 V
When the windlass is fed by an inferior battery , the performances will be minimum and the battery will rapidly be subject to wear and tear. We recommend
to use excellent quality cables , insulated and heat resistant. The cable sections have to be increased by 30% - 50% approx. when the extended cable ,
positive and negative , is longer than 10 mts. or 29' . The cables connected to the electric controls , shown on the wiring diagram by a thin line , should
have a section of 1.5 mm² or 16 AWG approx. These values refer only to PLASTIMO circuit breakers.
The circuit breaker protects from very dangerous short circuits , protects the windlass motor , avoiding damages due to anomalous absorption and interrupts
the tension to windlass , when desired. The circuit breaker must be installed in a dry , accessible and visible place. For your safety, we recommend that the
windlass and remote are isolated during navigation and reactivated during anchoring. Install the Control Box preferably in a dry place on board. We
recommend to install at least two remote controls to drive the windlass in case one of them gets damaged.
For the protection of electric remote controls, it will be necessary to install a circuit breaker of 5 Ampere.
pg.1 Installation
pg.1 Operations
pg.1 Maintenance
pg.1 Ordering Spare Parts
under the page "Product Registration"and following the instructions or by faxing to +33-(0)2 97 87 36 16 the
42980
500 Watt 12 Volt
∅8 Iso – Din 766
∅14 mm – 9/16"
BATTERY CABLES SECTION
60 Ah 16 mm²
pg.2 Wiring diagram
pg.2 Exploded drawing PWH 500
pg.3 Exploded drawing PWH 500F
pg.3
42981 42982
500 Watt 12 Volt 500 Watt 12 Volt
∅6 Iso – Din 766 ∅8 Iso – Din 766
∅14 mm – 9/16" ∅14 mm – 9/16"
Free fall option Free fall option
CIRCUIT BREAKER
4 AWG 35 Amps
GB
pg.16
pg.17
pg.18
