6. Remove the Motor
present, following the reverse of the installation
procedure described in GEH-6281.
7. While holding the charge interlock rod of the
breaker down against the midcover, move the
Remote Close under the spring frame until it
rests against the side frame
mechanism, as illustrated in Figure 3. Slide the
Remote Close under the breaker's torque
until the Remote Close engages the closing lever
projecting through the breaker side frame.
8. Align the two captive Philips-head
screws with the threaded holes in the mecha­
nism side frame. Tighten to 32 in-lb.
9.
Attach the wire connector to the mating color­
coded (brown and yellow) wires,
Figure 4. The mating wires are secured to the
breaker frame at the factory with a wire tie. The
wire tie may have to be remoYed to allow the
wires to connect.
10.
Route and tie the wires as shown in Figure 4.
Use two ties and ensure that the wires
interfere with any
mechanism. Check that the wires are not in a
position to be pinched by or interfere with the
reinstallation of the breaker top cover
ll. Reinstall the Motor Operator
present.
12.
Reinstall the secondary terminal block onto the
breaker midcover
ridge and fasten
removed.
13.
Test the Remote Close electrically according
1.
Table
14. Reinstall the breaker top cover and tighten the
four #10-32 screws to 15 in-lb.
15. Replace the trim plate and tighten the four #8-32
screws to 20 in-lb.
16. Affix the accessory rating label to the side of the
breaker. Affix the ELECTRICALLY OPERATED
label to the top cover above the ON-OFF indicator.
Operator Mechanism,
of the breaker
tube
mounting
as shown
do not
moving parts in
Mechanism,
terminal block mounting
with the screw previously
if
i n

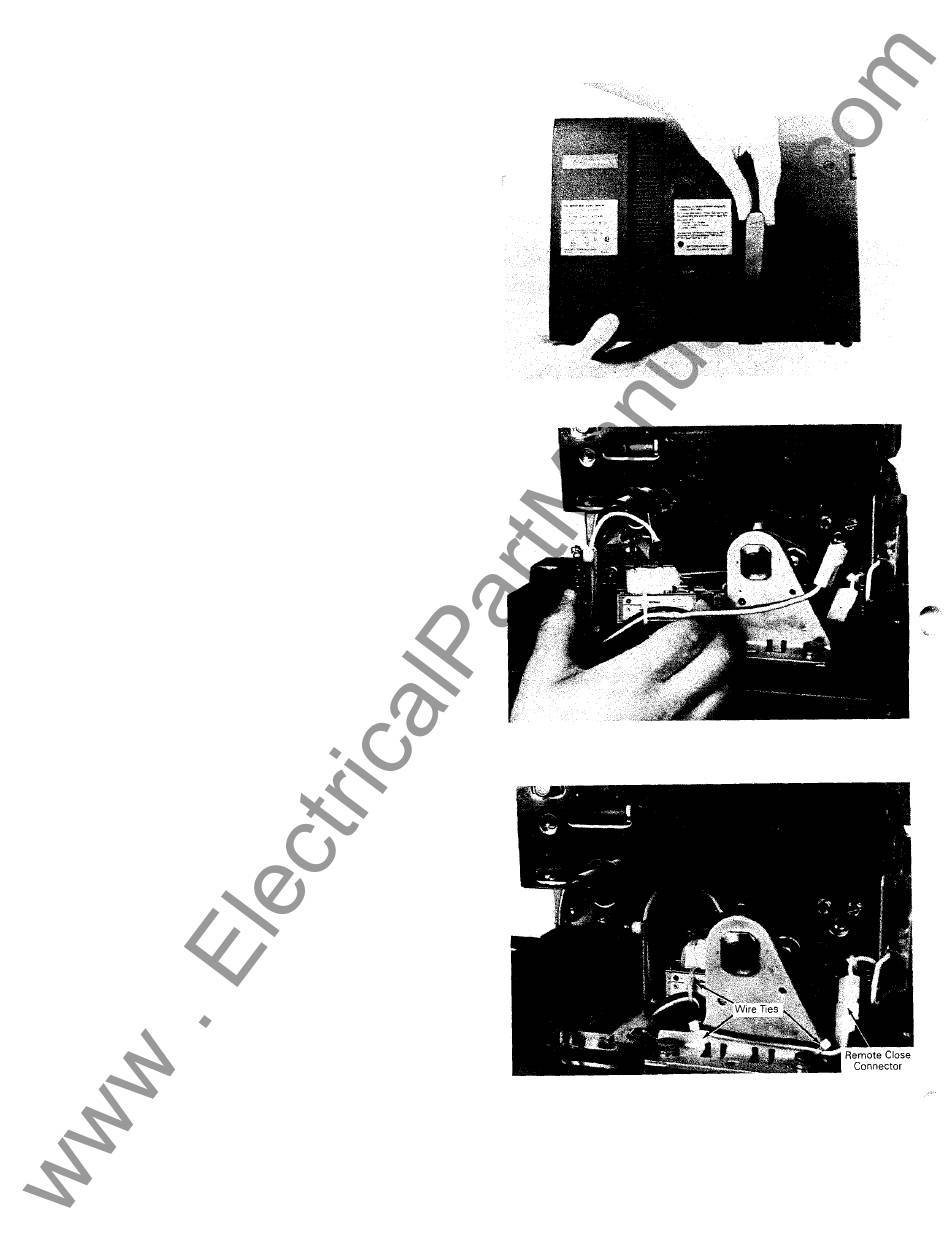

Figure Removal of the breaker top cover.
2
the
if
to
Figure 3. Installation of the Remote Close under the breaker spnng
Figure 4. Routing of the Remote Close wiring and the locations of the
frame.
wire ties.
