Summary of Contents for Judo i-soft TGA 2

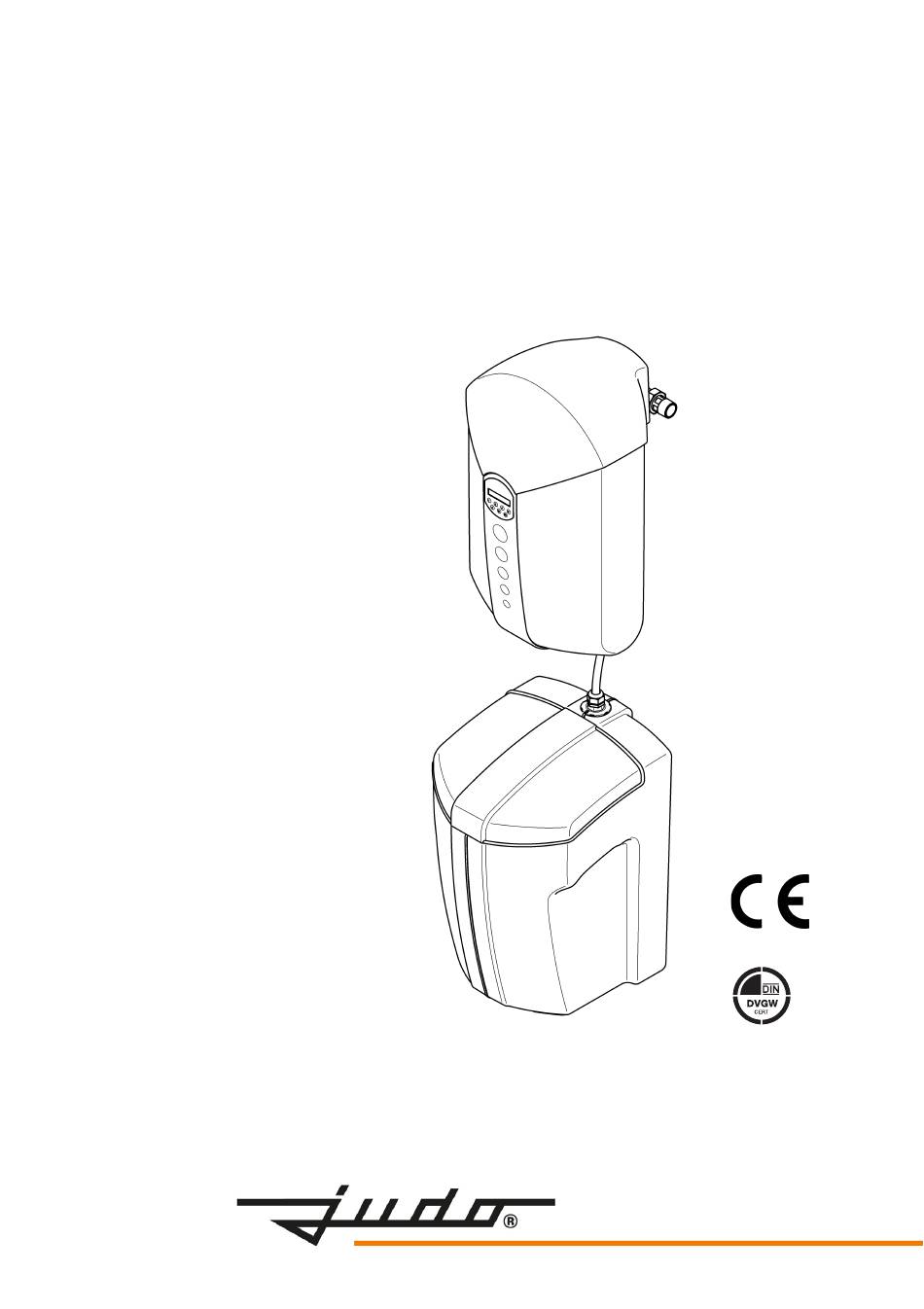

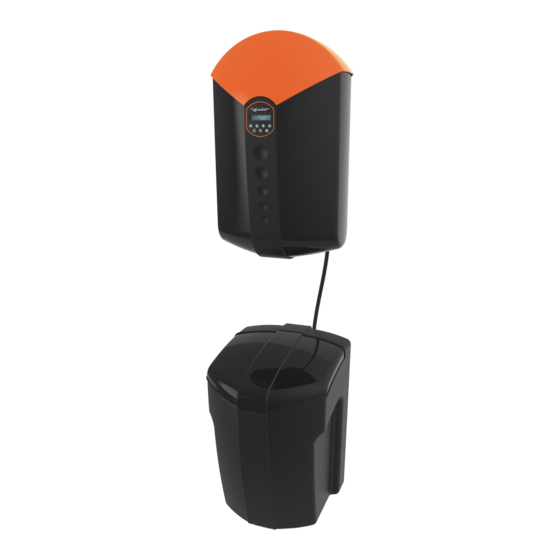

- Page 1 Installation and operating instructions JUDO i-soft TGA 2 Fully automatic water softening system Valid for: EU countries and Switzerland Language: English Read before use and store!
- Page 2 71364 Winnenden tion at the place of installation of Germany the i-soft TGA 2. The JU Control App is available for iOS- and Android. Every device has been carefully checked prior to supply. Nevertheless, if difficul-...
- Page 3 JUDO i-soft TGA 2...
-
Page 4: Table Of Contents
5.2 Menu functions ......16 5.3 Start of operation ....... 17 5.4 Menu structure......21 5.5 Function description ....22 5.6 Filling with salt ......22 5.7 Leakage alarm......23 5.8 Potential-free signal relay ..26 JUDO i-soft TGA 2... -
Page 5: About These Operating Instructions
Fig. 1: Rotary flange fitting Therefore, these operating instructions must be read by the installer and the responsible technical personnel/operators prior to instal- lation, commissioning and maintenance. JUDO i-soft TGA 2... -
Page 6: Safety Instructions And Dangers Due To Non-Observation
= 0.1 N/mm² ≈ 14.5 psi Temper- ˚F ˚F = ˚C · 1.8 + 32 ature Water °e 1 ˚e = 0.142 mmol/l hard- Alkaline earth ions ness (hardness producing ions) = 14.2 ppm CaCO JUDO i-soft TGA 2... -
Page 7: Intended Use
ATTENTION (see chapter 1.2 “Safety instructions and dangers due to non-observation”) JUDO i-soft TGA 2... -
Page 8: Indication Of Particular Dangers
If the electrical devic- es/installations are connected to the power supply, it is also possible that a short-circuit could occur. Should this occur there is a risk JUDO i-soft TGA 2... -
Page 9: Product Information
Materials used maintenance work can be properly per- formed. The materials used are resistant to the phys- ical, chemical and corrosive loads expected to be encountered in drinking water and fulfil JUDO i-soft TGA 2... -
Page 10: Installation Of The Rotary Flange Fitting
It is suitable both for horizontal and vertical pipes. The installation height depends on the pipe course. The minimum installation height measured from the ground to the middle of the pipe is 52 cm. JUDO i-soft TGA 2... -
Page 11: Installing The Wall Support Components
Installation of the water sof- – First flush the pipe with the newly in- tening system without a by- stalled rotary flange fitting JQE. The ro- pass valve tary flange fitting is still sealed by the black mounting cover. JUDO i-soft TGA 2... -
Page 12: Installation Of The Bypass Valve (Accessory)
– Swivel the water softening system back approximately 30° in a clockwise direc- – Connect the bypass valve with the rotary tion. flange fitting, by engaging the bayonet, on the flange side with the cast-in letter “R” (R=Rohr [pipe]) (see fig. 8). JUDO i-soft TGA 2... -
Page 13: Water Softening System Installation At The Already Installed Bypass Valve
This protective cap is secured using four hexagon socket head screws M6×130. ATTENTION After removing the white protective cap do not reach into the device connection flange (risk of crushing)! JUDO i-soft TGA 2... -
Page 14: Connection Of The Water Softener With The Salt Reservoir
2. To lock, turn the lance through 90° in the clockwise direction (up to the stop). Note the marking arrow: The arrow must now point to the front side of the salt reservoir (see fig. 9)! JUDO i-soft TGA 2... -
Page 15: Waste Water Connection And Safety Overflow Hose
If, for on-site reasons, a steady slope to the water trap can not be realized, then a pump- ing equipment, which is resistant to saltwa- ter, must be installed to pump up the regen- eration waste water. JUDO i-soft TGA 2... -
Page 16: Operation
5.7.1.) without saving – Start sleep mode Direct access to the information menu (see section “• Info” in chapter 5.2) Direct access to residual hardness setting (see chapter 5.3.3 “De- sired water hardness setting”) JUDO i-soft TGA 2... -
Page 17: Start Of Operation
For safety reasons, the water softening sys- tem must be flushed and regenerated for – To shorten commissioning, fill approxi- venting immediately after water supply is mately 5 litres of water into the salt res- opened. JUDO i-soft TGA 2... - Page 18 Press the <OK> key. The display shows the water flow (one tap fully open). During draw- following: ing, no large volume of water should be drawn at another point. Regeneration start JUDO i-soft TGA 2...
- Page 19 The electronics do not take into account the sodium content of the raw water. If the limit value of the drink- ing water ordinance is exceeded, the follow- ing messages appear on the display: Attention! Sodium limit val JUDO i-soft TGA 2...
- Page 20 5.14 “Resetting to factory setting”). quality. If, for example, the water hardness is set at 8 °e, but the residual hardness measured is 10 °e, the water hardness can be adapted as follows: JUDO i-soft TGA 2...
-
Page 21: Menu Structure
Operation Menu structure Fig. 14: Menu structure JUDO i-soft TGA 2... -
Page 22: Function Description
The regenerating salt must as a minimum The small quantity of chlorine required for comply with the requirements of DIN EN 973 and be of food-grade. JUDO i-soft TGA 2... -
Page 23: Leakage Alarm
In the 'Salt Reserve' menu the set salt re- serve can be corrected if necessary. This If any of these limits are exceeded, this will be signalled on the display and via the float- ing relay. In addition, an audible warning will sound. JUDO i-soft TGA 2... - Page 24 Press key 1x and then key 1x. The display shows the following: Main menu • Leakage alarm JUDO i-soft TGA 2...
- Page 25 If under the normal consumption habits a limit value is regularly exceeded without a leak being pre- sent, the corresponding limit value can be reset to a larger value. Typical adjustment values for a private household JUDO i-soft TGA 2...
-
Page 26: Potential-Free Signal Relay
Main menu of the water softening system is possible. • Settings Press key <OK> 1x and then key as often as necessary, until the display indicates the following: Setting • Fault relay JUDO i-soft TGA 2... -
Page 27: Conversions / Changes / Spare Parts
– Once the water softening system is fitted and started again, it must be flushed and – Fault indication relay: NOC function regenerated (see chapter 5.3 “Start of – Lighting 80 %, contrast 50 % operation”). JUDO i-soft TGA 2... -
Page 28: 5.15 Overview Of Display Messages
Leakage alarm The message appears if sleep see chapter 5.7.2 1...10 hours off mode is enabled. “Sleep mode” JUDO i-soft TGA 2... -
Page 29: Fault
(methylated spirits). vice number and order number avail- These substances can chemically attack the able (see fig. 12). plastic parts resulting in embrittlement and even breakage. Therefore do not use these types of cleaner! JUDO i-soft TGA 2... -
Page 30: Warranty And Service
(see fig. 9, pos. 6) in the operat- al solutions, salt or wear parts, etc. is per- ing position. formed by the JUDO factory customer ser- vice team or by an approved technical – Soft water hardness. service provider. -
Page 31: Data Sheet
Data sheet Operating weight with full approx. salt charge 75 kg Type Shipping weight approx. JUDO i-soft TGA 2 28 kg Fully automatic water softening system Order no.: 8203043 Rated flow 1.8 m³/h Technical data Flow pressure at min. rated... -
Page 32: Graphs
10 °e depending on the volumetric flow rate. Fig. 15: Pressure loss in normal operating position Waste water quantity related to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Fig. 16: Wastewater quantity JUDO i-soft TGA 2... - Page 33 Data sheet Salt consumption related to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Fig. 17: Salt consumption JUDO i-soft TGA 2...
-
Page 34: Installation Dimensions
Our recommendation: Installation depth up to the pipe E1 450 middle with JQX Installation of a JUDO JULIA dosing pump in the mixing water pipe downstream of the 370 Height of the overflow connection water softening system, so that the water... - Page 35 Data sheet Fig. 19: Electronic control unit with fault message relay JUDO i-soft TGA 2...
-
Page 36: Spare Parts
Spare parts Spare parts QR code Fig. 20: Spare parts JUDO i-soft TGA 2 JUDO i-soft TGA 2... -
Page 37: Disposal
Disposal Spare parts list i-soft TGA 2 Designation (recommended average replacement Item Art. no. AU interval for wear part [*]) Wear part set “Conductivity sensor and intake strainer” 2201382 Wear part set “Pressure regulator” **** 2200582 Spare part set “Injector”... - Page 38 Notes JUDO i-soft TGA 2...
- Page 39 Notes JUDO i-soft TGA 2...
-
Page 40: Customer Service
Tel. +41 (0)61 906 40 50 • Fax +41 (0)61 906 40 59 e-mail: info@judo-online.ch • judo-online.ch JUDO Wasseraufbereitung GmbH • Filiaal - Filiale BeNeLux Laarbeeklaan - Av. du Laerbeek, 72 A1 • B-1090 Brussel - Bruxelles Tel./Tél. +32 (0)24 60 12 88 • Fax +32 (0)24 61 18 85 e-mail: info.benelux@judo.eu •...
