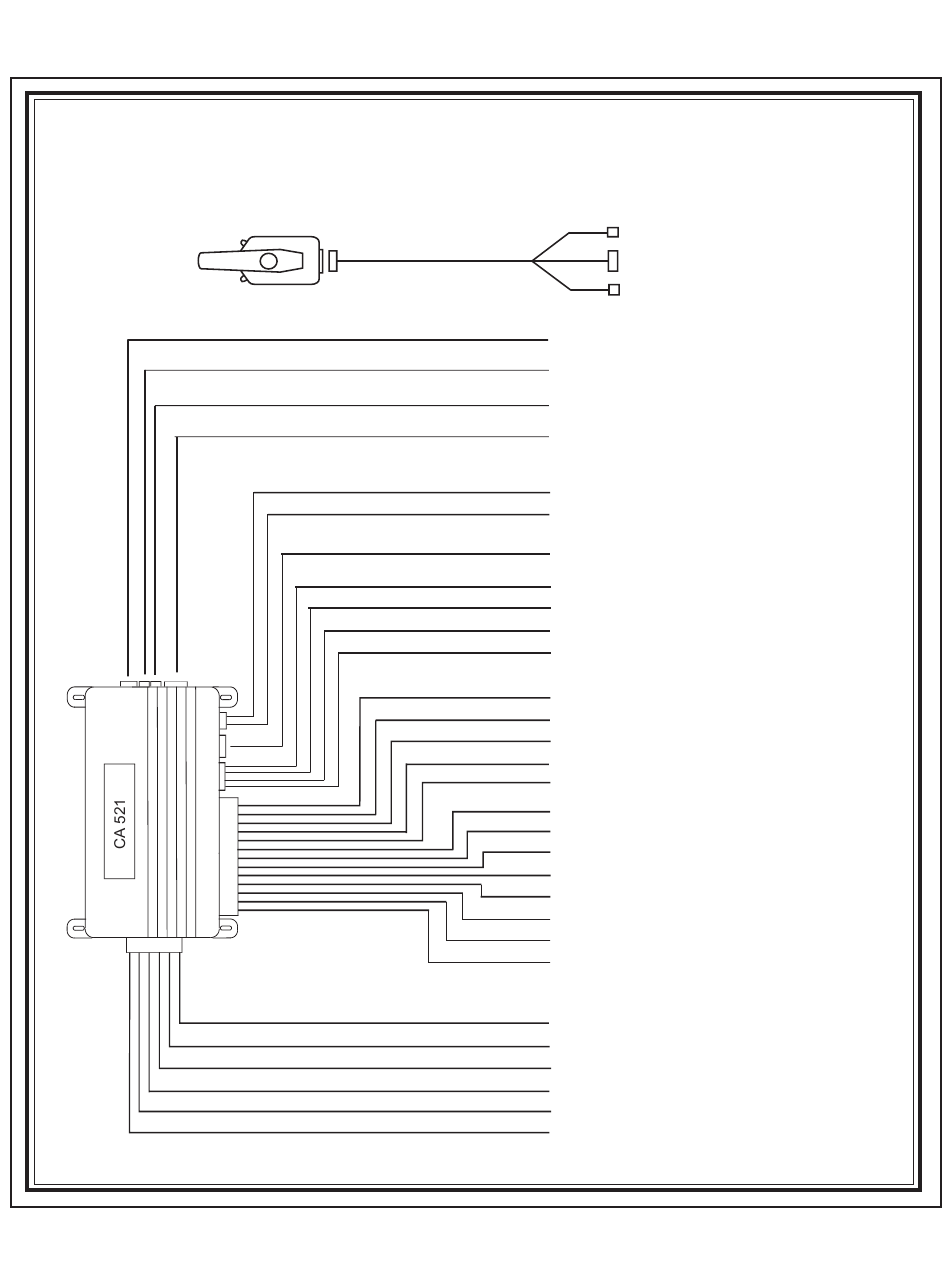

CA 521 SYSTEM LAYOUT
Black/White neutral safety wire might be missing
L.E.D PORT
ANTENNA PORT
PROGRAM BUTTON PORT
ANTENNA PORT
PROGRAMMING BUTTON PORT
L.E.D. PORT
TRACKING PORT
BLUE --------------------- (-) UNLOCK
GREEN ------------------ (-) LOCK
DATA INTERFACE PORT
BLACK/YELLOW ------ PULSE DURING CRANK (-)
GREEN/WHITE -------- PULSE AFTER SHUTDOWN (-)
LT. BLUE ----------------- PULSE AFTER START (-)
LT.GREEN/BLACK ---- FACTORY DISARM (-)
ORANGE/BLACK ----- PARKING BRAKE INPUT (-)
WHITE/RED ----------- PARKING LIGHT POLARITY (-/+)
WHITE ------------------ PARKING LIGHT OUTPUT (-/+)
BROWN/RED ---------- BRAKE INPUT (+)
ORANGE/RED -------- DEFROST OUTPUT (-)
BLACK/WHITE -------- NEUTRAL SAFETY INPUT (-)
GRAY -------------------- HOOD PIN INPUT (-)
GRAY/BLACK --------- WAIT TO START INPUT (+)
BLUE/BLACK ---------- ACTIVE OUTPUT (-)
RED/WHITE ---------- TRUNK (-)
BLACK ------------------- GROUND
PURPLE/WHITE ------ TACH INPUT
ORANGE ---------------- ARMED OUTPUT (-)
PINK --------------------- IGNITION 1
RED --------------------- 12 VOLTS BATTERY
PINK/WHITE ----------- IGNITION 2
ORANGE --------------- ACCESSORY
RED ---------------------- 12 VOLTS BATTERY
PURPLE ---------------- STARTER
