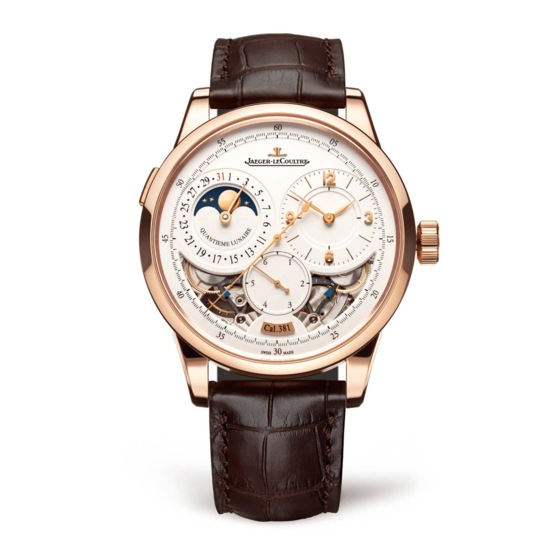

Jaeger-leCoultre DUOMETRE QUANTIEME LUNAIRE Manual
  1. Manuals
  2. Brands
  3. Jaeger-leCoultre Manuals
  4. Watch
  5. DUOMETRE QUANTIEME LUNAIRE
  6. Manual

Jaeger-leCoultre DUOMETRE QUANTIEME LUNAIRE Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

CONTENTS
21
21
22
25
26
27
30
34
38
42
47

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUOMETRE QUANTIEME LUNAIRE and is the answer not in the manual?

Questions and answers

Related Manuals for Jaeger-leCoultre DUOMETRE QUANTIEME LUNAIRE

Summary of Contents for Jaeger-leCoultre DUOMETRE QUANTIEME LUNAIRE

  • Page 1: Table Of Contents

    CONTENTS Introduction Accuracy and precautions for use Water resistance “1000 Hours Control” test Technical specifications Movement International Guarantee Limited Warranty (United States of America and Canada) Guarantee for Australia Customer Service...
  • Page 2 1 Minute hand 2 Hour hand 3 Crown 4 Power reserve of the functions 5 Jumping seconds hand 6 Power reserve of the regulator 7 Seconds hand 8 Date hand 9 Moon phase aperture for the northern hemisphere 10 Date correction push-piece 11 Moon phase corrector in the horn gap...

  • Page 3: Introduction

    INTRODUCTION We would like to thank you for the confi- dence you have placed in Jaeger-LeCoultre. Our Maison has applied all its expertise and exacting standards to the creation of this model. We invite you to consult the operating in- structions and hope your Jaeger-LeCoultre timepiece brings you great joy.

  • Page 4: Water Resistance

    WATER RESISTANCE Your Jaeger-LeCoultre watch is water- resistant to 5 bar. Its water resistance can be identified by the symbol and/or the engraving: “5 bar”...
  • Page 5 - have the watch’s water resistance checked by an authorised Jaeger-LeCoultre retailer at least once every two years. It is essen- tial to have such a check carried out each...
  • Page 6 - avoid using the controls, push-piece, or time-setting crown while under water, or outside the water, if the watch is not yet dry after immersion. - restore the time-setting crown and the push-pieces to their normal positions, (or where applicable, close the compression keys) after every manipulation.

  • Page 7: 1000 Hours Control" Test

    “1000 HOURS CONTROL” TEST The Jaeger-LeCoultre Manufacture pays close attention to the quality and to the final checks of its watches. The 1000 Hours Control is a series of in- ternal qualification tests for each of the models in our collection, as well as inter- nal tests on the production of your watch, which go beyond official timing tests.

  • Page 8: Technical Specifications

    TECHNICAL SPECIFICATIONS - Manually wound mechanical movement, Jaeger-LeCoultre Calibre 381 Dual-Wing - 21,600 vibrations/hour. - Power reserve of the regulator: approximately 50 hours. - Power reserve of the functions:...

  • Page 9: Movement

    MOVEMENT Jaeger-LeCoultre Calibre 381. Important note regarding the power re- serves of the Calibre 381 Dual-Wing. The Dual-Wing movement of the Duo- mètre Quantième Lunaire watch model features two barrels. The first barrel pro- vides the watch’s regulator (regulating or- gan) with 50 hours of power reserve.
  • Page 10 serve is indicated by the blue triangle po- sitioned between 4 and 5 o’clock. In both cases, the power reserve is at its maximum when the triangle is positioned opposite the “50” symbol. As energy is consumed, the triangle will gradually point towards the “0”...
  • Page 11 Important: Although the two power reserves are in- dependent, it is vital that both are wound before the timepiece can be used. If one of the power reserves is depleted, the movement will stop (no damage will be caused to the movement). It will thus be necessary to wind the two power re- serves according to the instructions to restart the calibre.

  • Page 12: Use

    STARTING THE WATCH Crown in position 0. The watch is started by turning the crown clockwise to wind the escapement power reserve and anti-clockwise to wind the functions barrel. The watch is fully wound when the two power reserve hands have reached the “50”...
  • Page 13 sorbed by a slipping spring. This prevents damage to the gear-train. SETTING THE TIME The Duomètre Quantième Lunaire watch fea-tures a unique resetting mechanism for the seconds and jumping seconds hands, called the “jumping stop-seconds”. This enables the two hands to be reset by the crown and for the time to be set on the watch once an hour signal sounds to a precision of 1/6th of a second.
  • Page 14 cated power reserve. Its isochronism is un- disturbed. Release the crown, which returns auto- matically to position 1. The two seconds hands are locked at 0. Note that the esca- pement continues to function thanks to its dedicated power reserve. Proceed to set the hours and minutes and, on the hour si- gnal, push the crown back into position 0.
  • Page 15 In order to correct the moon phases, press the moon phase corrector positioned in the horn gap at 12 o’clock(B) using the corrector tool provided. Each press moves the disc one day forward. In order to correct the moon phases accu- rately, calculate the number of days that have elapsed since the last full moon using the calendar at the end of this user manual...
  • Page 16 Australia, Jaeger-LeCoultre products must be purchased exclusively from authorised Jaeger-LeCoultre retail- ers or from Jaeger-LeCoultre Boutiques. Maintenance and repair work must be en- trusted to an authorised Jaeger-LeCoultre retailer, a Jaeger-LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre. If these conditions are not met, the manufacturer’s guarantee does not...

  • Page 17: International Guarantee

    Any part found by our technical services to be defective as a result of a manufac- turing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or replaced free of charge. The Jaeger-LeCoultre In-...
  • Page 18 Guarantee is valid only if the guarantee certificate enclosed with this booklet has been duly completed, dated, stamped, and signed by the authorised Jaeger-LeCoultre retailer or the Jaeger- LeCoultre Boutique, which sold you your watch. The Jaeger-LeCoultre International Guar-...
  • Page 19 Jaeger-LeCoultre retailer, Jaeger- LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre (for further information please see your User Manual). For quartz watches, this guarantee does not cover the battery life. As a consumer, you may have legal rights under applicable national legislation gov- erning the sale of consumer goods;...

  • Page 20: Limited Warranty (United States Of America And Canada)

    LIMITED WARRANTY (UNITED STATES OF AMERICA AND CANADA) The following Limited Warranty applies to Jaeger-LeCoultre products sold or pre- sented for warranty repairs in the United States of America and Canada only. TERMS AND CONDITIONS OF AEGER-LE OULTRE LIMITED WARRANTY...
  • Page 21 Jaeger-LeCoultre retailer or the Jaeger-LeCoultre Boutique, which sold you your watch. This Jaeger-LeCoultre Limited Warranty does not cover defects resulting from ac- cidents, mishandling, or incorrect, abusive use (for example, knocks, dents, crushing,...
  • Page 22 Jaeger-LeCoultre retailer, a Jaeger- LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre (for fur- ther information please see your User Manual).
  • Page 23 The liability of Jaeger-LeCoultre is limited solely and exclusively to repair or replace- ment under the terms and conditions stat- ed herein. Jaeger-LeCoultre shall not be liable, by virtue of this Limited Warranty...

  • Page 24: Guarantee For Australia

    You are also entitled to have the goods repaired or replaced, if goods fail to be of acceptable quality and the failure does not amount to a major failure. This Jaeger-LeCoultre Guarantee gives you additional rights and remedies un- der the Australian Consumer Law and...
  • Page 25 Every Jaeger-LeCoultre product is made and tested to meet the Jaeger-LeCoultre quality standards. Nevertheless, should your Jaeger-LeCoultre product prove defective, please contact the Jaeger- LeCoultre retailer or Jaeger-LeCoultre Boutique indicated on your guarantee certificate;...
  • Page 26 Jaeger-LeCoultre will remedy these identi- fied defects free of charge for up to two (2) years from the date of purchase. Thereafter, Jaeger-LeCoultre will repair any defective product or part subject to a service charge. The Jaeger-LeCoultre Guarantee does not...
  • Page 27 It is essential to have the water resistance checked by an authorised Jaeger-LeCoultre retailer, a Jaeger-LeCoultre Boutique, or an author- ised Jaeger-LeCoultre Service Centre at least every two years, and in any event, prior to any period of intensive use. Please refer to the operating instructions for fur- ther details.
  • Page 28 In Australia, a claim under the Jaeger- LeCoultre Guarantee may be sent to Richemont Australia Pty Ltd, provider of the guarantee service, at the address be- low or as specified above: Richemont Australia Pty Ltd PO Box 4780 Sydney, NSW 2001 Tel: +1 800 71 0665 Email: client.relations.asia@jaeger- lecoultre.com...

  • Page 29: Customer Service

    CUSTOMER SERVICE A Jaeger-LeCoultre timepiece is a high- precision instrument that operates 24 hours a day, or 8,760 hours a year. There- fore, it is essential to have it serviced reg- ularly in order to guarantee its good work- ing order and its durability. If significant variations occur in the settings, it may be necessary to have the movement serviced.
  • Page 30 Jaeger- LeCoultre watches and clocks. In certain cases, especially for operations requiring special tools and parts, the Ser- vice Centres will send your watch to the Jaeger-LeCoultre Manufacture in Switzer- land to have the necessary work carried out.
