BUNK BED
ASSEMBLY INSTRUCTIONS
MF212155AAB & MF212156AAB
WEIGHT LIMIT
400 LBS
WEIGHT LIMIT
400 LBS
PLEASE DO NOT RETURN PRODUCT TO THE STORE
If you have any problem or concerns, please feel free
to contact our customer service department.
Please send your request to the following contact
details according to the platform you purchased.
Walmart Platform:
E-mail : hd.team@qualfurn.net
Tell: 626-912-8886 Ext. 100
ITEM: 226T
.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Depot MF212155AAB
Summary of Contents for Home Depot MF212155AAB

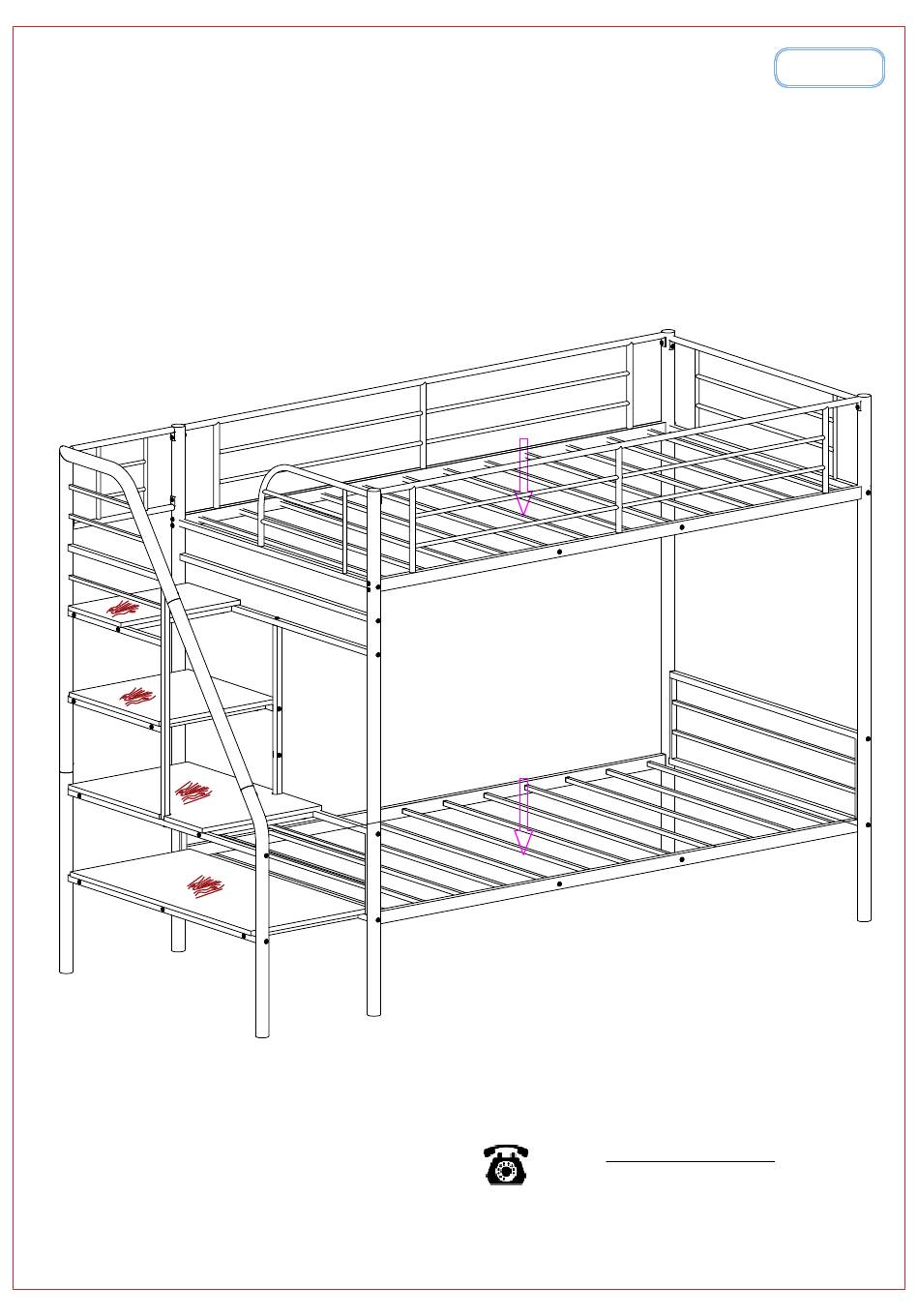

- Page 1 BUNK BED ASSEMBLY INSTRUCTIONS ITEM: 226T MF212155AAB & MF212156AAB WEIGHT LIMIT 400 LBS WEIGHT LIMIT 400 LBS PLEASE DO NOT RETURN PRODUCT TO THE STORE If you have any problem or concerns, please feel free to contact our customer service department.
- Page 2 PART LIST-MF212155AAB vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc horizontal bar - 1pc horizontal bar - 1pc vertical bar - 2pcs horizontal bar - 1pc guard bar - 2pcs...
- Page 3 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB PART LIST vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc hand rail - 1pc vertical bar - 1pc guard bar - 2pcs headboard - 1pc...
- Page 4 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB PART LIST horizontal bar - 1pc horizontal bar - 1pc guard handrail - 1pc horizontal bar - 2pcs wooden shelf panel - 1pc slat - 20pcs slat - 4pcs horizontal bar - 9pcs...
- Page 5 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB STEP 1 Following below illustration Assembly FRAME #1. Using hardware #D connect #1, #2, #4 vertical bar with #3 hard rail to complete FRAME #1 Ø1/4"*15mm -3pcs NOTE In this step, DO NOT tighten any bolt...
- Page 6 STEP 3 Following below illustration Assembly FRAME #3. ASSEMBLY INSTRUCTIONS Using hardware #A, #B, #D connect #14, #15, #16 horizontal bar, MF212155AAB & MF212156AAB #12,#13 footboard and #17 vertical bar with #5,#6 vertical bar to complete FRAME #3 Ø42x10mm - 4pcs Ø1/4"*60mm - 11pcs...
- Page 7 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB STEP 5 Following below illustration Assembly FRAME #5. Using hardware #D connect #9 guard bar with #22,#23 slat to complete FRAME #5 NOTE In this step, DO NOT tighten any bolt until you connect all part together Ø1/4"*15mm - 4pcs...
- Page 8 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB STEP 7 Following below illustration Assembly FRAME #7. Using hardware #A,#D connect FRAME #3, FRAME #4 with FRAME #5, FRAME #6 to complete FRAME #7 (FRAME #5) (FRAME #4) (FRAME #3) Ø1/4"*60mm - 16pcs (FRAME #6) Ø1/4"*15mm - 4pcs...
- Page 9 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB STEP 9 Following below illustration Assembly FRAME #9. Using hardware #C connect #25,#26,#27,#28 wooden shelf panel with FRAME #8 to complete FRAME #9 (FRAME #8) wood NOTE Tighten all step before using. Thank you PAGE 9 OF 10 Ø1/4"*28mm - 18pcs...
- Page 10 BUNK BED ASSEMBLY INSTRUCTIONS MF212155AAB & MF212156AAB COMPLETED BUNK BED PAGE 10 OF 10...
