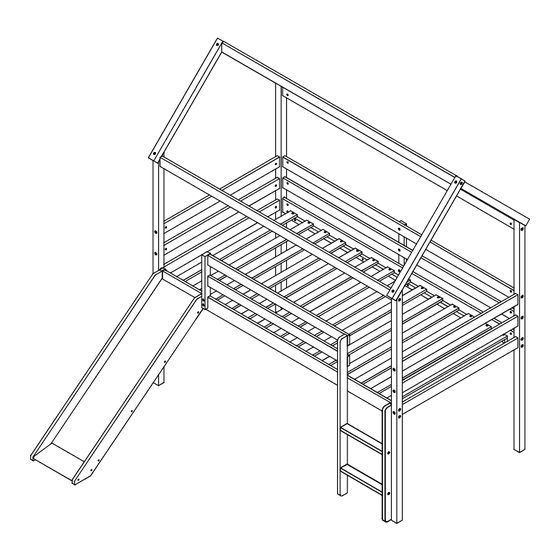

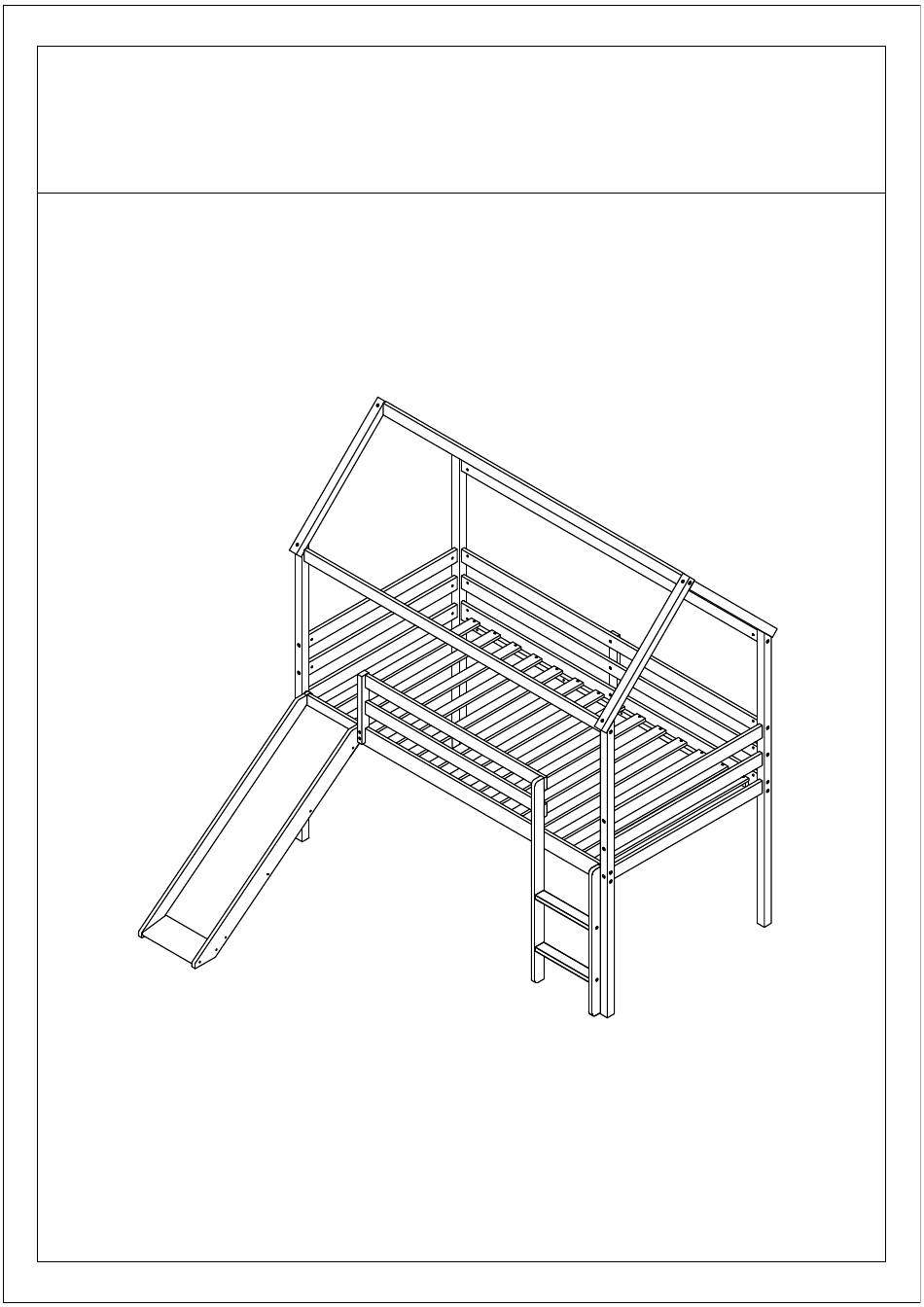

- Page 1 ASSEMBLY INSTRUCTIONS HOUSE BED FRAME WITH SLIDE WF286739...
-
Page 2: Safety Warning
SAFETY WARNING 1. This bed is designed for use only mattress (es) meeting the following specifications on the upper bunk, and lower bunk: Down bed Bed type Length With Thickness 74"-75" 8" max Twin Standard 38 1/2" Up bed (Bunk bed and tribed included) Bed type Length With... -
Page 3: Detail View
Detail View... -
Page 4: Part List
Part List Horizontal bar HB/FB - 6pcs Leg (Left Front ) - 1pc Leg (Right Back )- 1pc Leg (Left Back)- 1pc Leg (Right Front )- 1pc Long guard rail (Back) - 2pcs Short guard rail (Front) - 2pcs Vertical guard rail - 1pc Side rail (Back)- 1pc Side rail (Front)- 1pc Right side ladder - 1pc... -
Page 5: Hardware List
Hardware List 50mm Wood dowel (6pcs) Hex-Head bolts (12pcs) Hex-Head bolts (18pcs) Hex-Head bolts (14pcs) Hex-Head bolts (4pcs) Hex-Head bolts (3pcs) 1/4"*15 (9.5mm) 35mm Hex-Head bolts (8pcs) Metal bracket (1pc) Horizontal-Hole bolts(36pcs) 3.5*19mm (1/4")4.5*58mm Wood screws (12pcs) Wood screws (32pcs) Allen key (1pc) 142*18*2mm 65mm... - Page 6 STEP 1: 6PCS 6PCS Note:Part 7 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 2PCS...
- Page 7 STEP 3: 6PCS 6PCS Note:Part 7 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 4: 2PCS...
- Page 8 STEP 5: Remark: Upper horizontal paste stickers WARNING: DO 4PCS 18PCS NOT HANG ON THIS BAR! 3PCS 18PCS Remark: Upper horizontal (R1) paste stickers WARNING: DO NOT HANG ON THIS BAR! STEP 6: 4PCS 4PCS 1PCS 2PCS...
- Page 9 STEP 7: 2PCS 2PCS STEP 8: 2PCS 4PCS 8PCS 2PCS 2PCS 2PCS...
- Page 10 STEP 9: 12PCS 4PCS 2PCS STEP 10: 2PCS...
- Page 11 STEP 11: 28PCS REMARK : WARNING DO NOT HANG ON THE UPPER HORIZONTAL BAR! 79mm 79mm 66,5mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing ,...
