LOFT BED
ASSEMBLY INSTRUCTIONS
ITEM: 227T
MF212219AAB&MF212220AAB
WEIGHT LIMIT
400 LBS
PLEASE DO NOT RETURN PRODUCT TO THE STORE
.
If you have any problem or concerns, please feel free
to contact our customer service department.
Please send your request to the following contact
details according to the platform you purchased.
Walmart Platform:
E-mail : hd.team@qualfurn.net
Tell: 626-912-8886 Ext. 100
PAGE 1 OF 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Depot MF212219AAB
Summary of Contents for Home Depot MF212219AAB
- Page 1 LOFT BED ASSEMBLY INSTRUCTIONS ITEM: 227T MF212219AAB&MF212220AAB WEIGHT LIMIT 400 LBS PLEASE DO NOT RETURN PRODUCT TO THE STORE If you have any problem or concerns, please feel free to contact our customer service department. Please send your request to the following contact details according to the platform you purchased.
- Page 2 PART LIST-MF212219AAB vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc horizontal bar - 1pc horizontal bar - 1pc vertical bar - 2pcs horizontal bar - 1pc horizontal bar - 1pc...
- Page 3 LOFT BED ASSEMBLY INSTRUCTIONS MF212219AAB&MF212220AAB PART LIST vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc vertical bar - 1pc hand rail - 1pc headboard - 1pc headboard - 1pc vertical bar - 1pc...
- Page 4 - 1pc slat - 2pcs slat - 10pcs wooden shelf panel - 1pc wooden shelf panel - 1pc wooden table panel - 1pc HARDWARE LIST - MF212219AAB Ø1/4"*60mm Ø1/4"*40mm Ø1/4"*28mm Ø1/4"*15mm Bolts - 30pcs Bolts - 33pcs...
- Page 5 LOFT BED ASSEMBLY INSTRUCTIONS MF212219AAB&MF212220AAB STEP 1 Following below illustration Assembly FRAME #1. Using hardware #D connect #1, #2, #4 vertical bar with #3 hard rail to complete FRAME #1 Ø1/4"*15mm -3pcs NOTE In this step, DO NOT tighten any bolt...
- Page 6 STEP 3 Following below illustration Assembly FRAME #3. ASSEMBLY INSTRUCTIONS Using hardware #A, #B, #D connect #14, #15, #16, #17 horizontal MF212219AAB&MF212220AAB bar, #12,#13 footboard and #18 vertical bar with #5,#6 vertical bar to complete FRAME #3 Ø42x10mm - 4pcs Ø1/4"*60mm - 12pcs...
- Page 7 LOFT BED ASSEMBLY INSTRUCTIONS MF212219AAB&MF212220AAB STEP 5 Following below illustration Assembly FRAME #5. Using hardware #D connect #9 guard bar with #25,#26 slat to complete FRAME #5 NOTE In this step, DO NOT tighten any bolt until you connect all part together Ø1/4"*15mm - 4pcs...
- Page 8 LOFT BED ASSEMBLY INSTRUCTIONS MF212219AAB&MF212220AAB STEP 7 Following below illustration Assembly FRAME #7. Using hardware #A, #B, #D connect FRAME #3, FRAME #4 with FRAME #5, FRAME #6 to complete FRAME #7 (FRAME #5) (FRAME #6) Ø1/4"*60mm - 8pcs Ø1/4"*40mm - 4pcs (FRAME #4) Ø1/4"*15mm - 4pcs...
- Page 9 LOFT BED ASSEMBLY INSTRUCTIONS MF212219AAB&MF212220AAB STEP 9 Following below illustration Assembly FRAME #9. Using hardware #C connect #27,#28,#29,#30 wooden shelf panel and #31 wooden table panel with FRAME #8 to complete FRAME #9 (FRAME #8) wood NOTE Tighten all step before using. Thank you PAGE 9 OF 10 Ø1/4"*28mm - 26pcs...

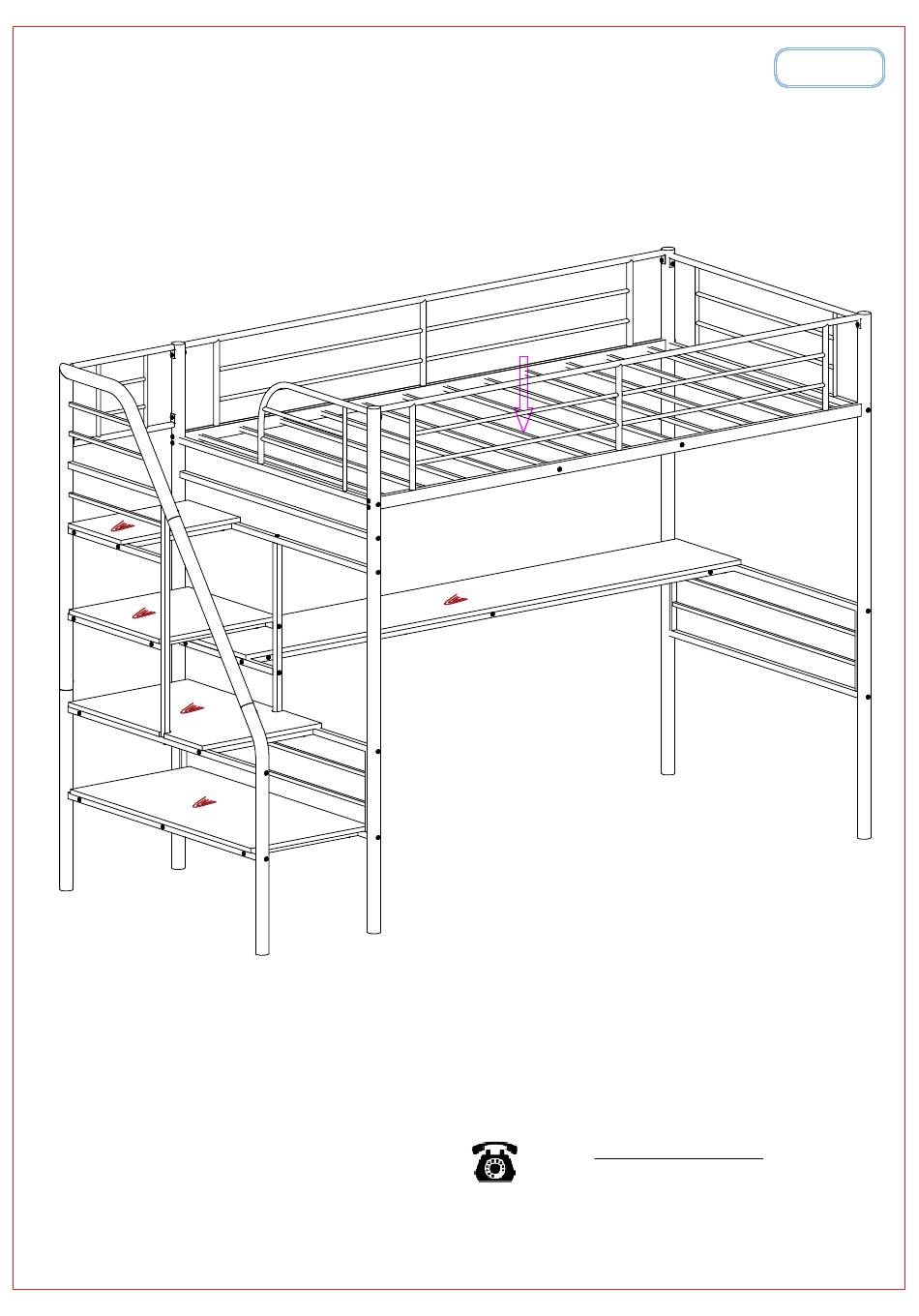

- Page 10 LOFT BED ASSEMBLY INSTRUCTIONS MF212219AAB&MF212220AAB COMPLETED LOFT BED PAGE 10 OF 10...
