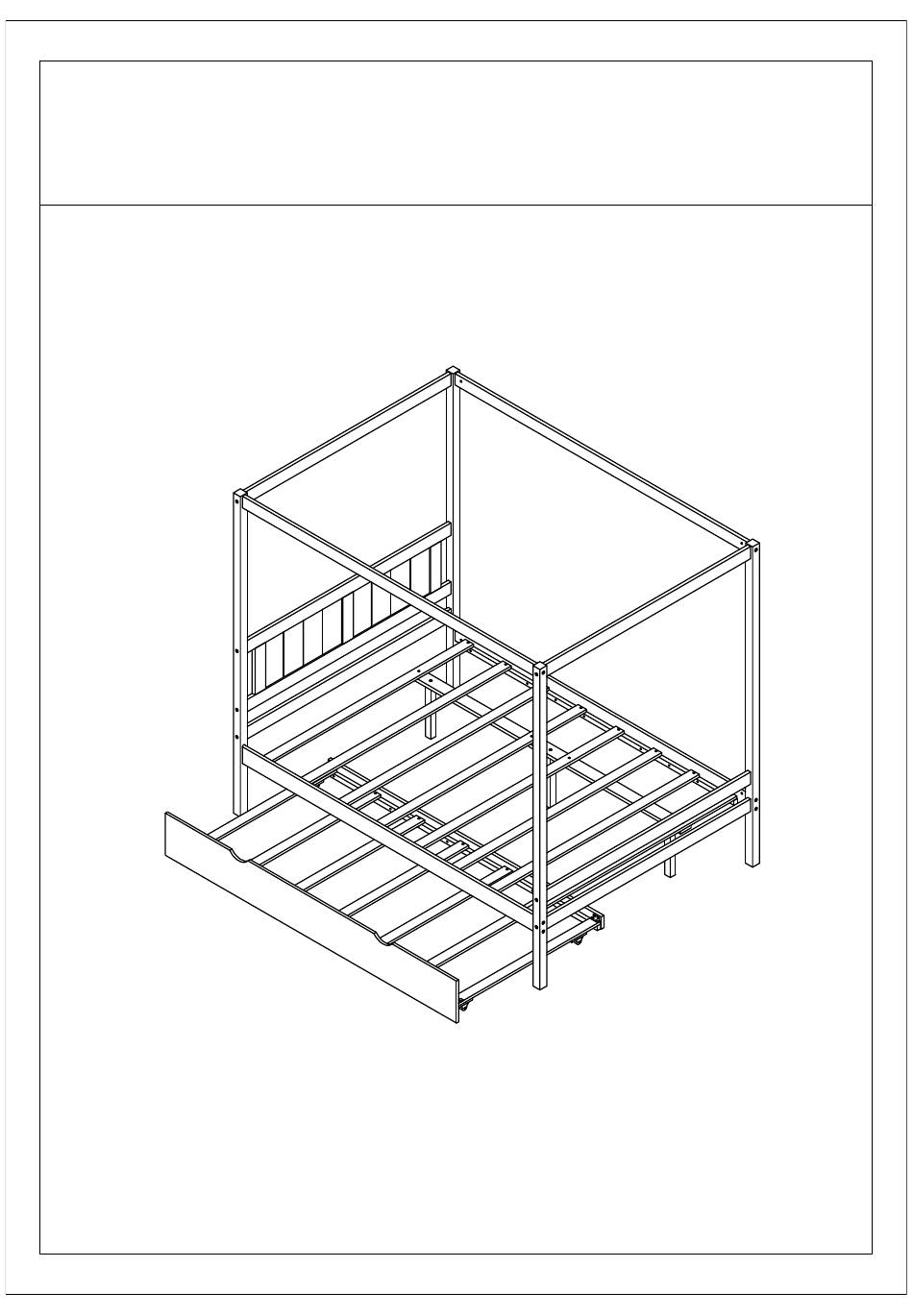

- Page 1 ASSEMBLY INSTRUCTIONS FULL BED WITH TRUNDLE WF287561...
-
Page 2: Detail View
Detail View... -
Page 3: Part List
Part List Horizontal HB/FB - 5pcs HB Frame - 1pc Leg HB (Left) - 1pc Leg HB (Right) - 1pc Leg FB (Left) - 1pc Leg FB (Right) - 1pc Upper Horizontal - 2pcs Side rail - 2pcs Support slat - 1pc Leg support - 3pcs Slats - 4pcs Slats - 4pcs... -
Page 4: Hardware List
Hardware List Hex-Head bolts (12pcs) Hex-Head bolts (14pcs) Wood screws (16pcs) 1/4"*15 (9.5mm) (1/4")4.5*58mm Wood screws (42pcs) Horizontal-Hole bolts(26pcs) Allen key (1pc) 100*63*20mm Wheels (4pcs) Metal bracket (2pcs) Metal bracket (2pcs) ASSEMBLY TOOLS REQUIRED ( NOT INCLUDED ) - Page 5 STEP 1: 8PCS 8PCS Note:Part 4 will face up with the "x" mark on it, otherwise it cannot be tightened STEP 2: 6PCS 6PCS Note:Part 4 will face up with the "x" mark on it, otherwise it cannot be tightened...
- Page 6 STEP 3: 12PCS 12PCS STEP 4: Assembling leg support (K) with lower support slat (J) later rotate, Move support slat inside Full bunkbed.
- Page 7 STEP 5: 20PCS 193mm 66,5mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before STEP 6: 4PCS...
- Page 8 STEP 7: 14PCS 234mm Note: Do not lock the screws of the bed slats to the outermost edge of the bed slats, you need to leave a certain space at the edges, otherwise it will cause the board to break. Do not lock the bed slats on the edge of the wood, please hold firmly before screwing , hold it in STEP 8: 2PCS...
- Page 9 STEP 9: 2PCS 8PCS STEP 10: Push Trundle under the bottom of Full bed.
