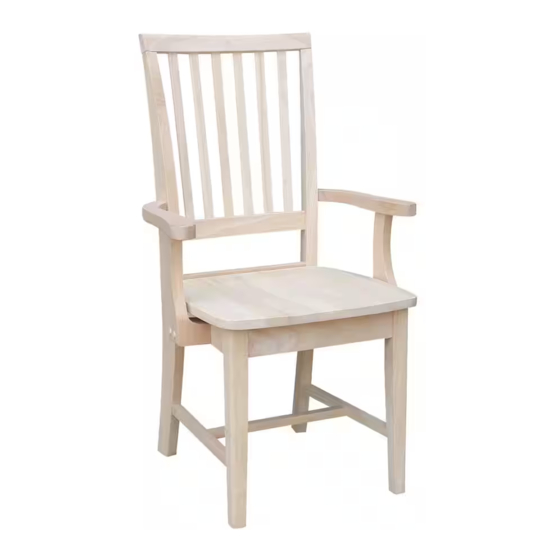

- Page 1 ASSEMBLY INSTRUCTIONS Description : MISSION ARM CHAIR Item No. : 265A ITEM NO.: 265A Printed in Vietnam REVISED APR 24, 2018...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: 265A Printed in Vietnam REVISED APR 24, 2018...
- Page 3 When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Chair back Seat Frame Front Leg Chair Seat (L-R) Side Stretcher Middle (L-R) Stretcher (L-R) ITEM NO.: 265A Printed in Vietnam REVISED APR 24, 2018...
- Page 4 (6.5 x 11mm) (6.5 x 19mm) Allen Key Hexagon nut (M4 x 30mm x110mm) (M6 x 10mm) Wrench Small Flat Washer (10mm) (6.5 x13mm) Wood Plug Long bolt (14.5) (M6 x 90mm) ITEM NO.: 265A Printed in Vietnam REVISED APR 24, 2018...
- Page 5 Attach middle stretcher (F) to side stretchers (E) with screws (4). Then attach side stretchers (E) to front and back legs with screws (6) as shown below. Tighten with a screwdriver. ITEM NO.: 265A Printed in Vietnam REVISED APR 24, 2018...
- Page 6 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver. Then insert wood plugs (13) over bolts to cover them. ITEM NO.: 265A Printed in Vietnam REVISED APR 24, 2018...
