nekos KATO ADV RADIO Instruction Manual

Chain actuator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

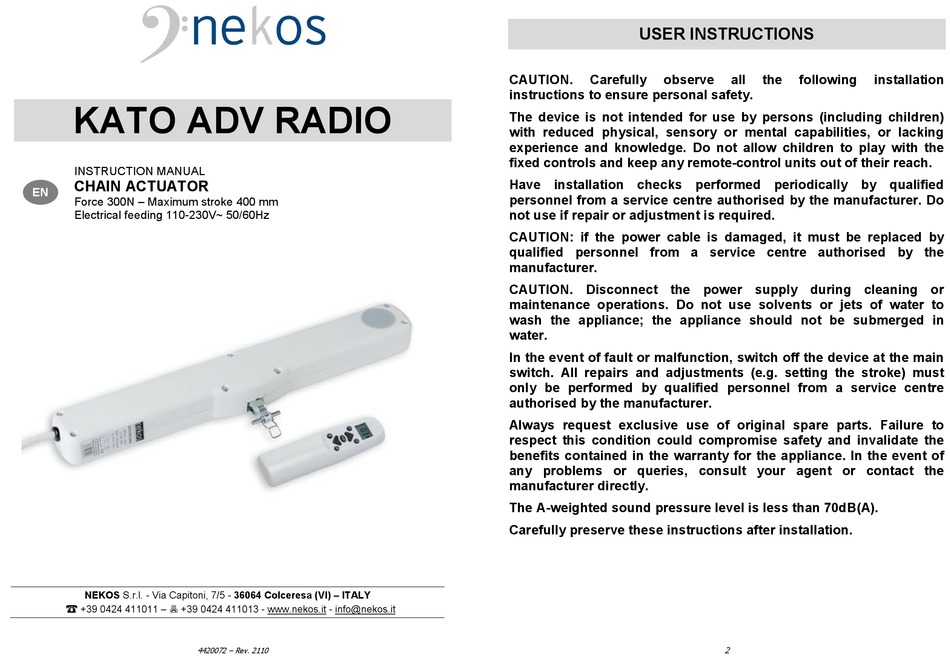

KATO ADV RADIO
INSTRUCTION MANUAL
CHAIN ACTUATOR
EN
Force 300N – Maximum stroke 400 mm
Electrical feeding 110-230V~ 50/60Hz
NEKOS S.r.l. - Via Capitoni, 7/5 - 36064 Colceresa (VI) – ITALY
+39 0424 411011 –  +39 0424 411013 - www.nekos.it - info@nekos.it
4420072 – Rev. 2110
USER INSTRUCTIONS
CAUTION.
Carefully
observe
instructions to ensure personal safety.
The device is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lacking
experience and knowledge. Do not allow children to play with the
fixed controls and keep any remote-control units out of their reach.
Have installation checks performed periodically by qualified
personnel from a service centre authorised by the manufacturer. Do
not use if repair or adjustment is required.
CAUTION: if the power cable is damaged, it must be replaced by
qualified personnel from a service centre authorised by the
manufacturer.
CAUTION. Disconnect the power supply during cleaning or
maintenance operations. Do not use solvents or jets of water to
wash the appliance; the appliance should not be submerged in
water.
In the event of fault or malfunction, switch off the device at the main
switch. All repairs and adjustments (e.g. setting the stroke) must
only be performed by qualified personnel from a service centre
authorised by the manufacturer.
Always request exclusive use of original spare parts. Failure to
respect this condition could compromise safety and invalidate the
benefits contained in the warranty for the appliance. In the event of
any problems or queries, consult your agent or contact the
manufacturer directly.
The A-weighted sound pressure level is less than 70dB(A).
Carefully preserve these instructions after installation.
all
the
following
installation
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KATO ADV RADIO and is the answer not in the manual?

Questions and answers

Related Manuals for nekos KATO ADV RADIO

Summary of Contents for nekos KATO ADV RADIO

  • Page 1 The A-weighted sound pressure level is less than 70dB(A). Carefully preserve these instructions after installation. NEKOS S.r.l. - Via Capitoni, 7/5 - 36064 Colceresa (VI) – ITALY +39 0424 411011 –  +39 0424 411013 - www.nekos.it - info@nekos.it 4420072 – Rev. 2110...

  • Page 2: Table Of Contents

    MPROPER INSTALLATION CAN SERIOUSLY ENDANGER SAFETY MANDATORY RISK ANALYSIS AND PROTECTION MEASURES nekos products have been manufactured in accordance with safety standards and The Nekos electrical actuators comply with the Machinery Directive (2006/42/EC), Standard conforms to the stipulations of current standards in force.

  • Page 3: Formulas And Recommendations For Installation

    5. LABEL DATA AND MARKINGS opening outwards with frontal assembly Top hung windows opening outwards with The KATO ADV RADIO actuators have CE marking and comply with the Standards horizontal assembly listed in the Declaration of Conformity. They also come with a Declaration of Bottom hung windows (motor on frame) Incorporation, due to their classification by the Machinery Directive as “partly completed...

  • Page 4: Technical Data

    The power supply cable is already wired to the actuator. It is used for the electric MODEL KATO ADV RADIO power supply of the system and should be connected to the electricity mains. The Force exerted by thrust and traction (F 300 N power supply cable has two conductors: sky-blue, brown.

  • Page 5: Open And Close Commands

     Select the desired channel on the radio remote control. (Consult the instructions The manual control prevails over radio remote control. manual of the PIK radio remote control).  On the KATO ADV RADIO, briefly press (for about 1 second) the small “ ” 10.3. Ventilation function button located near the terminal block.

  • Page 6: Rain Detection Sensor

    Basic job and safety techniques are therefore not included. As described above in Chapter 9 (Electrical connection), a rain sensor model NRS1 can be connected to the KATO ADV RADIO chain actuator with radio control. All preparatory operations, assembly and electrical connections must be carried out by...
  • Page 7 14.2. Assembly with outward opening window 14.3. Assembly on transom window Aside the drawing of specific application using Aside the drawing of specific application using accessories provided. different mountings, accessories provided. For different mountings, please contact manufacturer. please contact manufacturer. Before starting, check that there are at least two A.

  • Page 8: Meaning Of The Led Flashing Mode

    14.4. Assembly of actuator onto bay or outward opening window The table below summarizes the meaning of the LED flashing mode. Flashing Aside the drawing of specific application using Ref. Flashing Meaning frequency accessories provided. For different mountings, please contact manufacturer. Actuator at rest, no alarm is active Steady-on Function not provided for...

  • Page 9: Troubleshooting

    18. TROUBLESHOOTING The purchaser is not entitled to any reimbursement for eventual direct or indirect damage or other expenses incurred. Attempt to repair by personnel unauthorised by the Please consult the following table for any eventual problems with function during manufacture shall render the warranty null and invalid.

  • Page 10: Declaration Of Incorporation (For A Partly Completed Machine) And Ec Declaration Of Conformity

    Questa dichiarazione è fatta dal costruttore / This is declared by the manufacturer : 36064 Colceresa (VI) – ITALY NEKOS SRL - Via Capitoni 7/5 - 36064 Colceresa (Vicenza) - Italy Rappresentato da / Represented by : +39 0424 411011 –  +39 0424 411013 Giuliano Galliazzo –...
