- Page 1 User Manual 24" Free Standing Bottom Freezer Refrigerator FM4FBM24SS-D...
-
Page 2: Table Of Contents
Content 1. Safety Information 2. Overview 3. Installation 7~12 4. User interface 13~14 5. Daily Use 15~19 6. Warranty... -
Page 3: Safety Information
Safety information SAFETY REQUIREMENTS Risk of fire or explosion. Flammable refrigerant used. Do not puncture DANGER: refrigerant tubing. • Do not use mechanical devices to defrost refrigerator. • To be repaired only by trained service personnel. Fill with potable water only. WARNING: Keep ventilation openings in the appliance enclosure or in the built-... - Page 4 Safety information GROUNDING INSTRUCTIONS This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded.
- Page 5 Safety information Daily use • Do not put anything hot on the plastic parts in the appliance. • Do not place food products directly against the rear wall. • Frozen food must not be re-frozen once it has been thawed out.
- Page 6 Safety information Important! For electrical connection carefully follow the instructions given in specific paragraphs. Unpack the appliance and check if there are damages on it. Do not • connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing. It is advisable to wait at least four hours before connecting the appliance •...
- Page 7 Safety information Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases.The appliance shall be disposed according to the appliance regulations to obtain from your local authorities.
-
Page 8: Overview
Overview Fridge Shelves Fridge Door Bins Crisper Cover Crisper Fresh convertible box Freezer Drawers Leveling Feet Note: Above picture is for reference only. Real appliance may be different. -
Page 9: Installation
Installation Installation of Your Refrigerator Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded. To level your refrigerator, adjust the legs at the front of the refrigerator. Allow 5 inches of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the compressor. - Page 10 Installation Door Reversibility Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag: Left Aid-Closer on Upper Door x 1 Left Door Hinge Cover x 1 0.
- Page 11 Installation Move door switch from right hinge cover to left hinge cover in accessary bag. Detach cover in top of upper door and move harness from right side to left side, then replace the cover. Move top left cover to right side 6.
- Page 12 Installation 7. .Move the hinge hole covers from left side to right side. 8. Unscrew bottom hinge. Then remove the adjustable feet from both side. 9. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. unscrew screw...
- Page 13 Installation Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. Remove aid-closers from bottom of upper and lower doors, then take new aid-closers from accessary bag and install them to left side. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.
- Page 14 Installation 13. Install the lower door, adjust and fix the middle hinge onto the cabinet. Replace upper door, please ensure the door align with the cabinet to make sure door gasket seal the cabinet tightly. Then connect door with cabinet by tightly fixed top hinge. Connect harnesses from door and cabinet.
-
Page 15: User Interface
User interface Using the Control Panel 1.1 BUTTON OPERATION A. Temperature Control of Fridge Compartment B. Temperature Control of Freezer Compartment C. Mode 1.2 LED DISPLAY 1. Temperature of Fridge compartments 2. Temperature of Freezer compartment 3. Super Mode 4. ECO Mode 2.0 OPERATING CONDITION The control panel will be 100% lit up for 3 seconds after power on, and then show previous setting temperature or running mode before power off. - Page 16 User interface 3.0 BUTTONS 3.1 FRIDGE Press FRIDGE button to adjust temperature of fridge compartment in user mode or SUPER mode. Touch the button consecutively, the temperature will change in a circle of “2°C, 3°C, 4°C, 6°C, 8°C, the selection will be confirmed after 5 seconds of flash of fridge temperature icons. In ECO mode, this button is not react.
-
Page 17: Daily Use
Daily Use First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. - Page 18 Daily Use Helpful hints and tips Hints for freezing To help you make the most of the freezing process, here are some important hints: the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate; ...
- Page 19 Daily Use Hints for refrigeration Useful hints: Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
- Page 20 Daily Use Cleaning For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly. Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
- Page 21 Daily Use Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Possible cause Solution Problem Mains plug is not plugged in or...
-
Page 22: Warranty
2. Provide a copy of your original sales receipt along with model number and serial number information for the product. 3. Provide Fulgor Milano reasonable opportunity to investigate the claim before the Product or any component of the Product has been modified and removed. - Page 23 www.fulgormilano.us info@fulgormilano.us...
Need help?
Do you have a question about the FM4FBM24SS-D and is the answer not in the manual?
Questions and answers

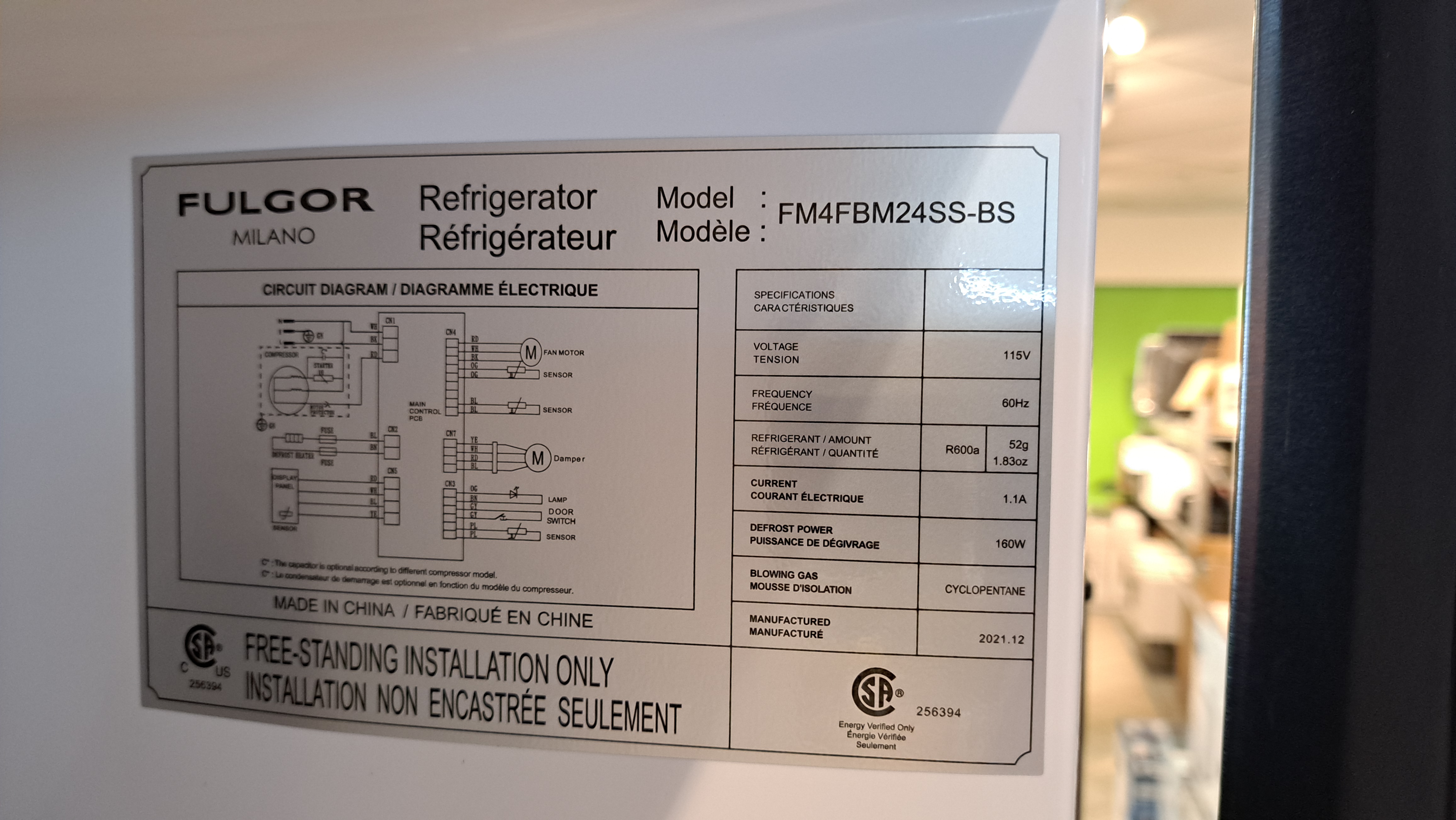

I recently bought a used 24" Fulgor Refrigerator FM4FBM24SS-BS. Where might I find a manual on line? AND I will have to transport it a short distance on its side. If I am facing the door, on which side will it be safest to lay the refrigerator? The left side or the right side.
