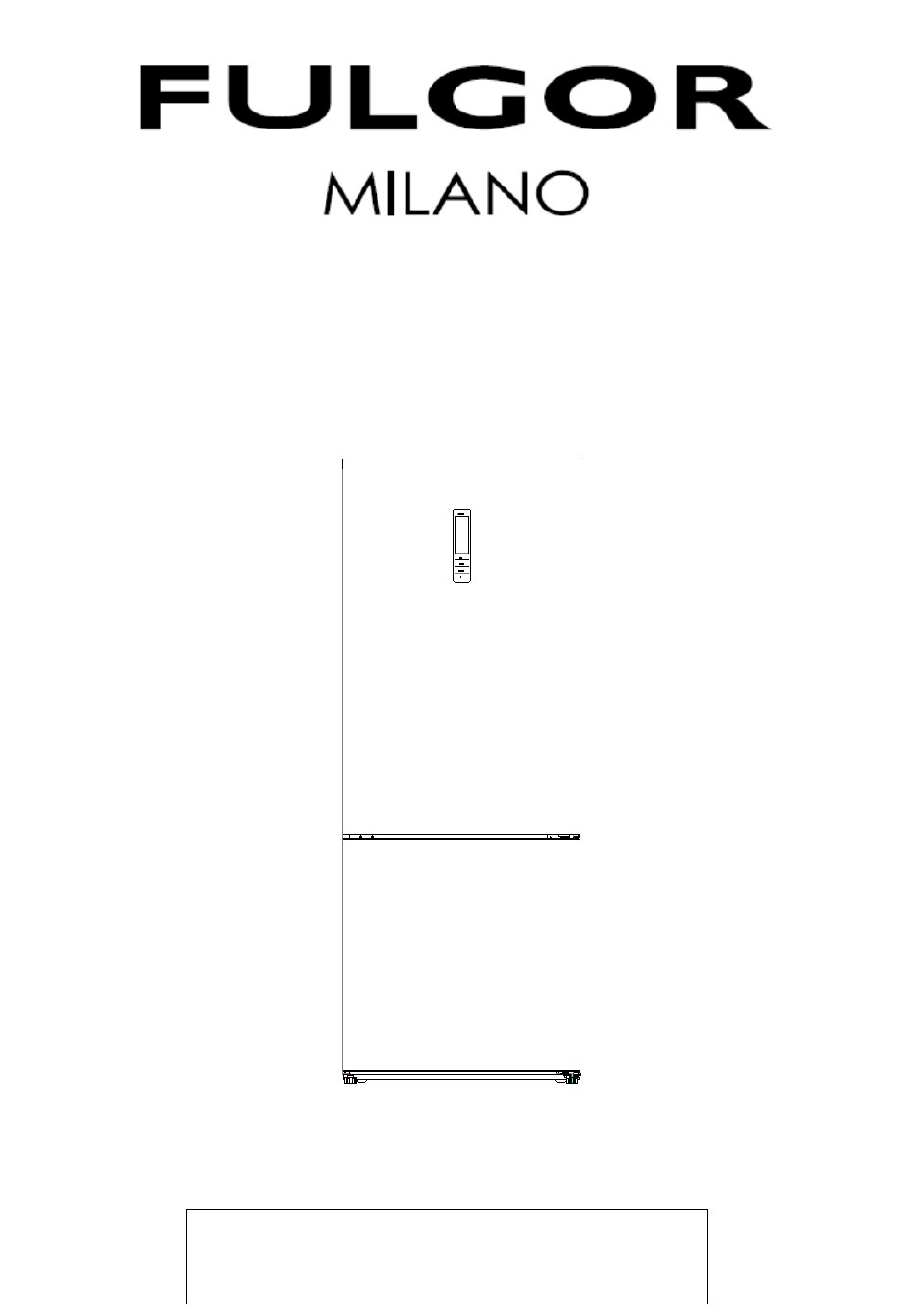

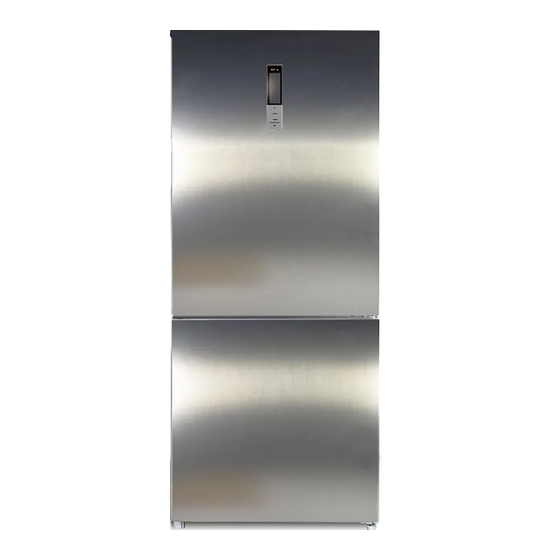

28' Free standing
Bottom freezer Refrigerator
: FM4FBM28SS
Model No.
Dear users, this manual contains the product's basic knowledge, how to use it, fault
1
diagnosis and basic troubleshooting methods. In order to better understand and use
this product, please take good care of this manual and read it carefully.
Advertisement
Table of Contents
Related Manuals for Fulgor Milano FM4FBM28SS
Summary of Contents for Fulgor Milano FM4FBM28SS
- Page 1 28’ Free standing Bottom freezer Refrigerator : FM4FBM28SS Model No. Dear users, this manual contains the product’s basic knowledge, how to use it, fault diagnosis and basic troubleshooting methods. In order to better understand and use this product, please take good care of this manual and read it carefully.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING 1.Read these instructions. 2. Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5. Do not use your refrigerator near water. 6.Clean only with a damp cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. -
Page 3: Grounding Requirement
WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death. 1.WARNING–Keep ventilation openings, in both your refrigerator and the built-in structure, clear of obstruction. 2.WARNING–Do not touch the interior of your refrigerator with wet hands. This could result in frostbite. -
Page 4: Product Features
from +16°C to +43°C Note：Given the limit values of the ambient temperature range for the climate classes for which the refrigerating appliance is designed and the fact that the internal temperatures could be affected by such factors as location of the refrigerating appliance, ambient temperature and the frequency of door opening, the setting of any temperature control device might have to be varied to allow for these factors, if appropriate. - Page 5 from rusting and leaking electricity .The result of the total space of the room in which the refrigerator is installed being divided by the refrigerant charge amount of the refrigerator shall not be less than 8 g/ M Note: The amount of refrigerant charged for the refrigerator can be found on the nameplate. Heat dissipation space When working, the refrigerator gives off heat to surroundings.
- Page 6 Function Setting When the refrigerator system is connected to power supply for the first time, all icons on the display panel gets illuminated for 2s, and the system runs in the Smart mode by default. When all the doors are closed, the display gets extinguished automatically if no key operation within 3 minutes.
- Page 7 After a cumulative running period of 26 hours, the Fast Freeze function will stop automatically. Under the Fast Freeze mode, press the Function key to select Fast Freeze until the corresponding icon gets flickering, and then press the OK/Lock key for confirmation, the Fast Freeze function will be disabled. When the Smart function is enabled, the Fast-Freezing function will be disabled automatically.
- Page 8 long time. Use of the fresh food compartment Set the temperature of the fresh food storage compartment between 2 ℃ ~ 8 ℃, and store the foods that are intended for short-term storage, or to be eaten at any time in the fresh food compartment. Fridge shelf: When removing the shelf, lift it up first, and then pull it out;...
-
Page 9: Maintenance And Cleaning
control knob to the low mode, with the freezer temperature lowered. So, foods can be frozen up in fast manner, with the food freshness well kept. Tips for special needs Moving the refrigerator/freezer •Location Do not place your refrigerator/freezer near a heat source, e.g. cooker, boiler or radiator. Avoid it from direct sunlight in out- buildings or sun lounges. - Page 10 dust. If any abnormality, please unplug the power plug and get in contact with the vendor. How to disassemble the parts. Fridge door bottle rack: Hold two sides of bottle rack with both hands, squeeze inward to make it deform slightly, and then push it up. Fridge shelf: Hold one end of the shelf, and lift it up while pulling it outwards.
- Page 11 Safe recovery instructions Disposal Old appliances still have some surplus value. An environmentally friendly approach will ensure that valuable raw materials are recycled. The refrigerants used in your equipment and insulation materials require special handling procedures. Make sure there is no pipe damage on the back of the equipment before handling.
-
Page 12: Reversing The Door Swing
Reversing the Door Swing How to disassemble the fridge/freezer door. 1. a．Screw off the hinge cover screw, remove the hinge cover, and insert the communication wire into the hole on the cabinet top. e． Insert the door bush into the round hole on the door, and put on the small end cap cover. - Page 13 door. and two stoppers on the lower c．Remove the axle c．Remove the adjustable front feet under the hinge, and assemble them to the position as shown lower hinge, and screw off the 4 screws of the lower below. hinge to disassemble the lower hinge. In this way, the door disassembly is finished.
- Page 14 3. Install the fridge door, assemble the left upper hinge to the other side of the cabinet, The doors are opened form the left side. and use a tool to screw up the 4 screws to fix the upper hinge. Then, connect the door communication wire and the cabinet communication wire, install the left upper hinge cover, and fix it using a...
-
Page 15: Warranty
2. Provide a copy of your original sales receipt along with model number and serial number information for the product. 3. Provide Fulgor Milano reasonable opportunity to investigate the claim before the Product or any component of the Product has been modified and removed. - Page 16 WARRANTY www.fulgormilano.us info@fulgormilano.us...
