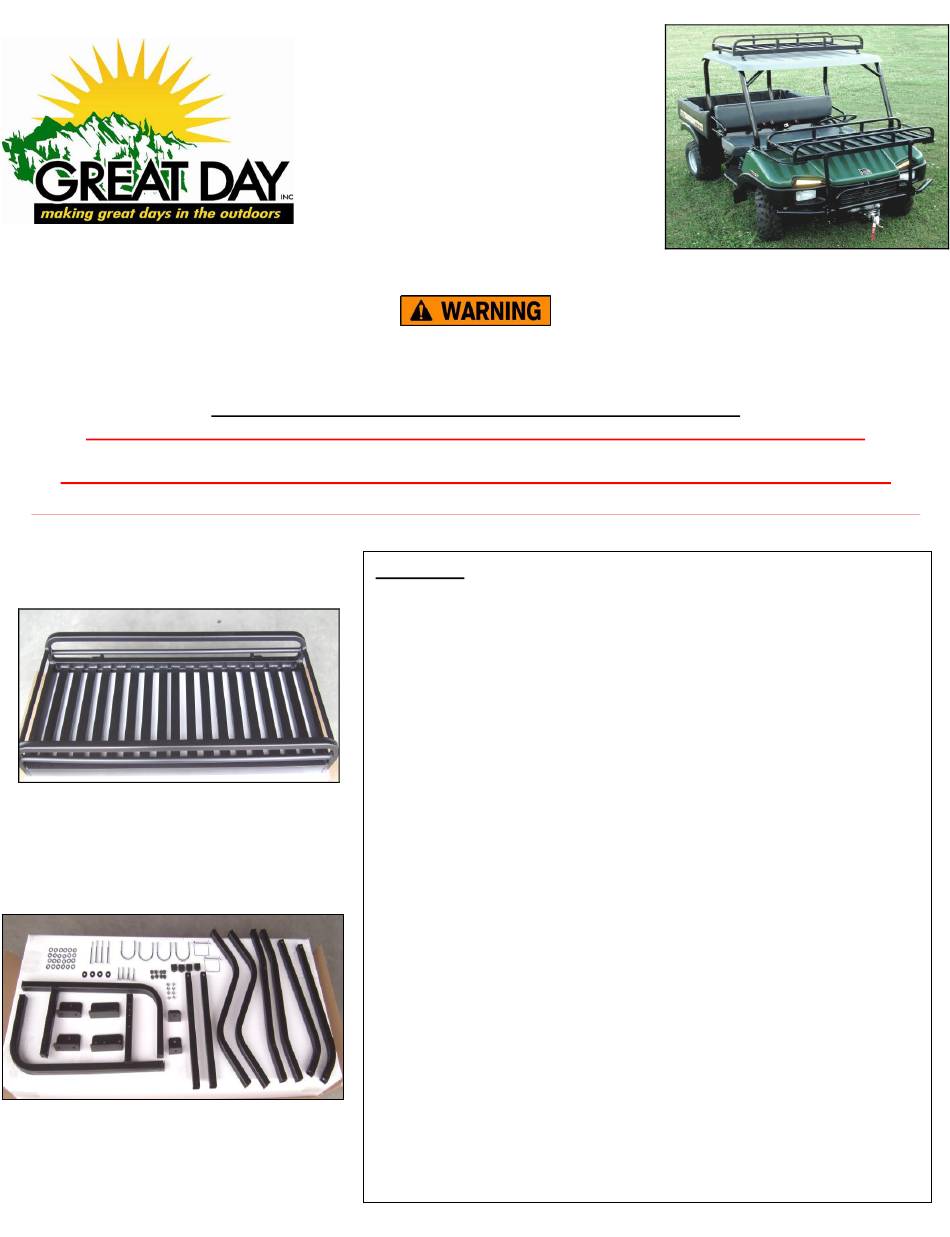

PAGE 1 OF 5
2-5-15
UTV FRONT RACK
MODEL: UVFR751
READ ALL INSTRUCTIONS & WARNINGS BEFORE USING THE UTV FRONT RACK
NOTE: Failure to read instructions before use could result in injury or death.
Instructions for Installation and Use:
*Note: UTV's with Round Roll Bar Cages – Refer to Pages 1-4 of this installation Guide
*Note: UTV Front Rack Will NOT FIT Polaris Ranger 570 Midsized UTV with Pro-Fit Roll Cage
*Note: IF INSTALLING ON POLARIS Ranger 570 Full Sized w/ Pro Fit Cage OR Ranger 900/1000 w/ Pro Fit Cage- REFER TO PAGE 5.
Contents:

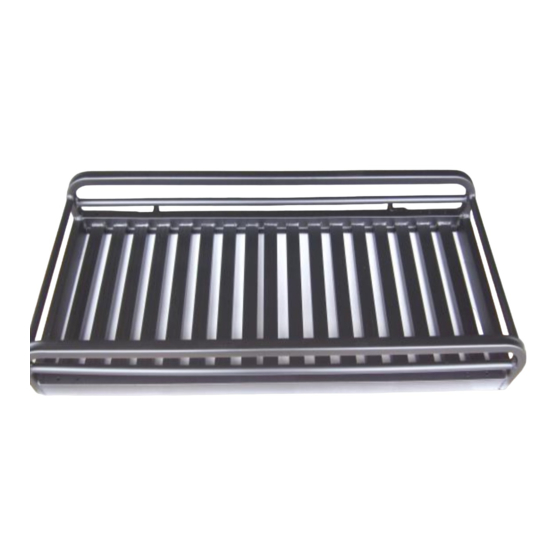

1 – UTV FRONT RACK
2 – F SHAPED HORIZONTAL RACK SUPPORTS
1 SET – ROLL BAR ANGLE BRACKETS *THESE
HAVE 3 HOLES ON 1 SIDE. THERE IS A LEFT AND
A RIGHT BRACKET.
1 SET- ROLL BAR ANGLE BRACKETS FOR
VEHICLES WITH WINDSHIELD. (SEE NOTE #1)
2 SETS – BRUSH GUARD ANGLE BRACKETS *THESE
HAVE 2 HOLES ON 1 SIDE AND 1 HOLE ON THE
OTHER SIDE. CHOOSE WHICH SET WORKS BEST
WITH YOUR VEHICLE.
2 – 5/16" X 2 1/4" BOLTS & 2 – 5/16" WINGKNOBS
4 – 5/16" X 2" U-BOLTS
16 – 5/16" LOCKNUTS
8 – 1/4" LOCKNUTS
4 – 1/4" X 3 1/2" BOLTS
4 – 1/4" X 1 3/4" BOLTS
2- 5/16" X 3 1/2'" BOLTS
2- 5/16" X 1 1/4" BOLTS
4 – THIN NYLON WASHERS
2 – MEDIUM NYLON WASHERS
52 – FLAT WASHERS
4 - PLUGS
CONTENTS
4 – SETS OF VERTICAL SUPPORT BARS (VARIOUS
LENGTHS)
Advertisement
Table of Contents
Related Manuals for Great day UVFR751
Summary of Contents for Great day UVFR751
- Page 1 PAGE 1 OF 5 2-5-15 UTV FRONT RACK MODEL: UVFR751 READ ALL INSTRUCTIONS & WARNINGS BEFORE USING THE UTV FRONT RACK NOTE: Failure to read instructions before use could result in injury or death. Instructions for Installation and Use: *Note: UTV’s with Round Roll Bar Cages – Refer to Pages 1-4 of this installation Guide *Note: UTV Front Rack Will NOT FIT Polaris Ranger 570 Midsized UTV with Pro-Fit Roll Cage *Note: IF INSTALLING ON POLARIS Ranger 570 Full Sized w/ Pro Fit Cage OR Ranger 900/1000 w/ Pro Fit Cage- REFER TO PAGE 5.
- Page 2 PAGE 2 STEP 1: SEE FIG. 1 (PAGE 4) ATTACH HORIZONTAL SUPPORT ANGLES TO UTV ROLL BAR APPROXIMATELY LEVEL WITH THE TOP OF UTV’S HOOD USING 2 – 5/16” X 2” U-BOLTS, WASHERS & LOCKNUTS PROVIDED. (THESE BRACKETS HAVE 3 HOLES ON ONE SIDE.) **NOTE** #1: IF THE UTV HAS A WINDSHIELD, REMOVE BOLT FROM BOTTOM WINDSHIELD CLAMPS, SUBSTITUTE SMALL ANGLE BRACKETS, WHICH HAVE 1 HOLE ON EACH SIDE, AND PLACE CLAMP BOLT...
- Page 3 UTV FRONT RACK. NEVER USE UTV FRONT RACK FOR ANY PURPOSE OTHER THAN INTENDED USE. For more information about this or other products, contact us at: Great Day, Inc. 604 Kimbrough Dr. * Tallulah, LA 71282 * (866) 649-1918 * www.greatdayinc.com...
- Page 4 FIG. 1 FIG. 3 FIG. 2 FIG. 4 FIG. 5...
- Page 5 Page 5 STEP 1: INSTALL 1- 5/16” X 1 ¼” BOLT, 2 FLAT WASHERS AND LOCKNUT INTO MIDDLE HOLE OF THE LEFT AND RIGHT ANGLE BRACKETS (BRACKETS WITH THREE HOLES ON ONE SIDE). TIGHTEN COMPLETELY. . SEE FIG. 1 & 2 NOTE: THIS BOLT WILL ACT AS A HORIZONTAL REST WHEN INSTALLED FIG.
