Great day RAPID RACK RTR 200 Instructions For Installation And Use

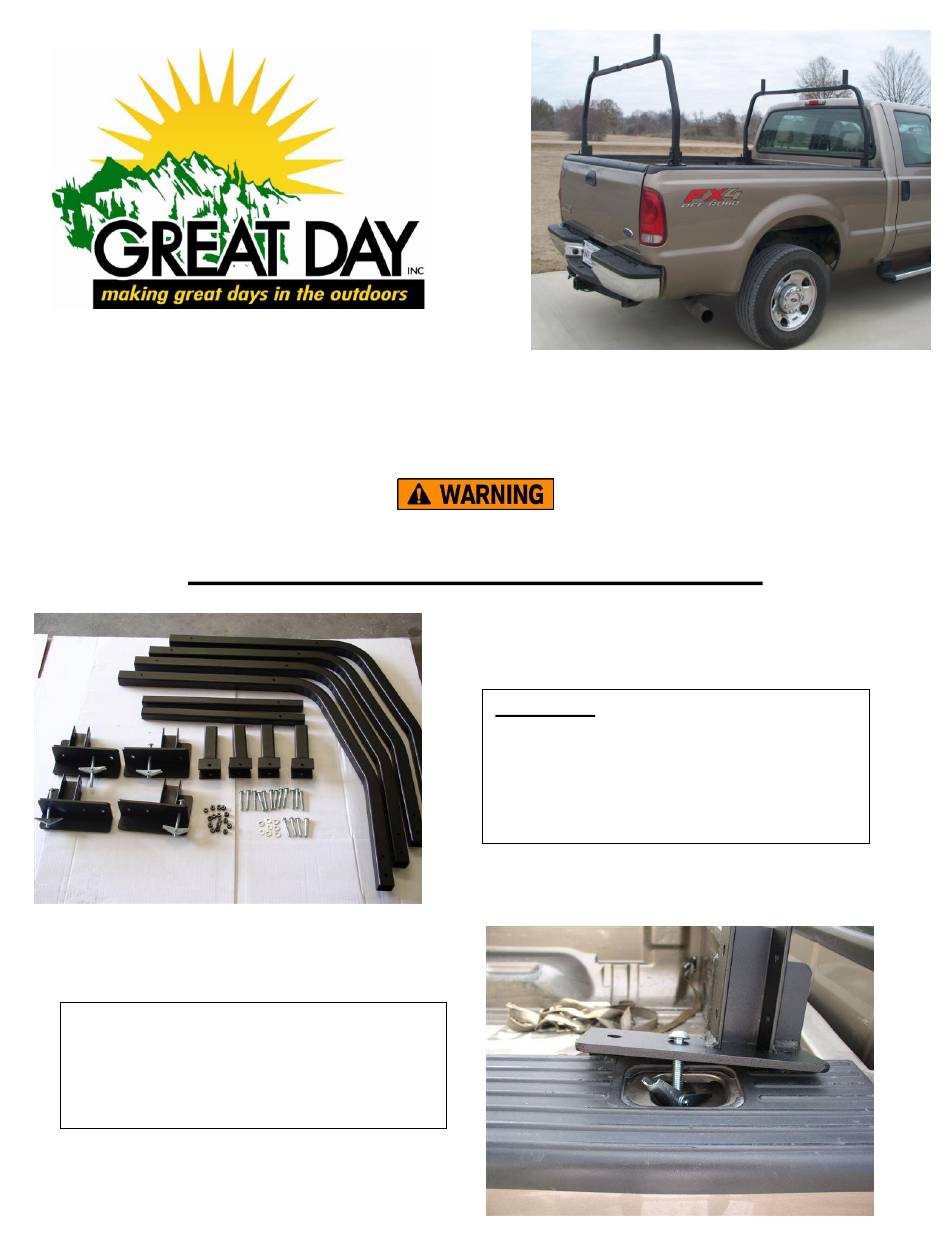

RAPID RACK" Removable Transport Rack

READ ALL INSTRUCTIONS BEFORE INSTALLING RAPID RACK.

Instructions for Installation and Use:

FIG. 1

1) THREAD TOGGLE BOLT THRU

APPROPRIATE HOLE ON MOUNTING

BASES TO ALIGN BASE WITH STAKE

POCKET ON TRUCK BED RAIL. REPLACE

BUTTERFLY NUT. SEE FIG. 2

MODEL: RTR 200

CONTENTS: SEE FIG. 1

RAPID RACK UPRIGHTS, 4-LOAD

STOPS, 2-SPLICES, 4-MOUNTING BASES,

4-3/8" TOGGLE BOLTS, 4-5/16" x 2"

BOLTS, 12- 5/16" x 2-1/4" BOLTS, 8-FLAT

WASHERS, 16-5/16" LOCKNUTS.

FIG. 2

Table of Contents

Need help?

Do you have a question about the RAPID RACK RTR 200 and is the answer not in the manual?

Page 1 RAPID RACK” Removable Transport Rack “ MODEL: RTR 200 READ ALL INSTRUCTIONS BEFORE INSTALLING RAPID RACK. Instructions for Installation and Use: CONTENTS: SEE FIG. 1 RAPID RACK UPRIGHTS, 4-LOAD STOPS, 2-SPLICES, 4-MOUNTING BASES, 4-3/8” TOGGLE BOLTS, 4-5/16” x 2” BOLTS, 12- 5/16” x 2-1/4” BOLTS, 8-FLAT WASHERS, 16-5/16”...
Page 2 2) ALIGN MOUNTING BASES OVER STAKE POCKET HOLES AND PRESS BUTTERFLY NUT INTO HOLE. TIGHTEN BOLTS SECURELY. THIS WILL ENGAGE THE BUTTERFLY NUTS TO GRAB POCKET HOLES AND HOLD RAPID RACK SECURELY IN PLACE. SEE FIG. 3 Fig.3 3) SLIDE SPLICE INTO ONE OF THE RAPID RACK UPRIGHTS AND SECURE WITH 5/16”X 2”...
