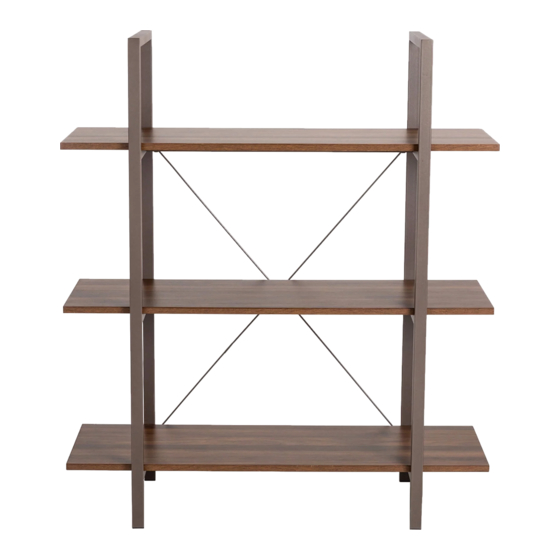

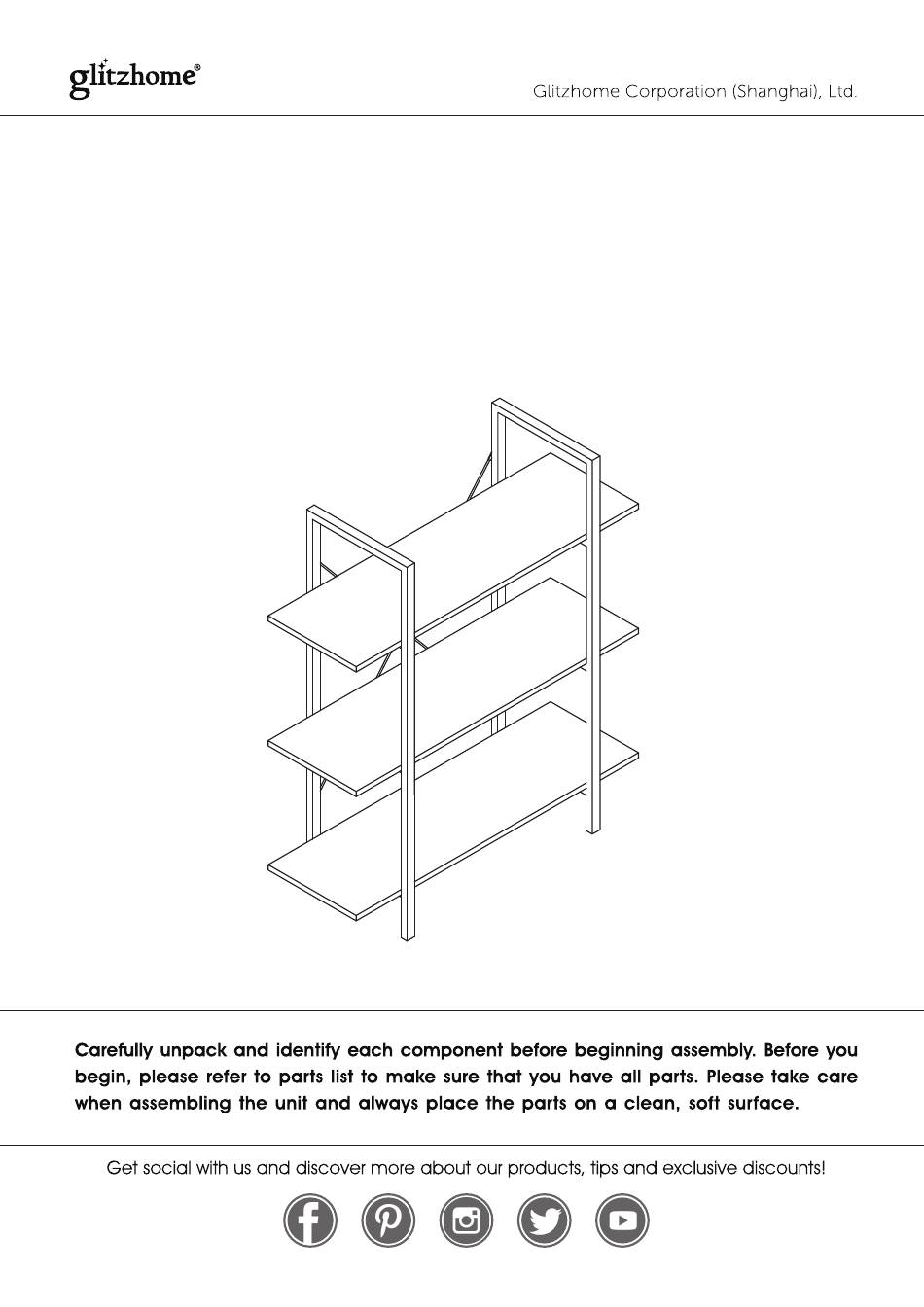

- Page 1 Assembly Instruction 3 SHELF BOOKCASE...
- Page 2 PRE-ASSEMBLY PREPARATION • CAUTION: Assembly will require at least 2 adults. DO NOT use power tools. Please inspect all items BEFORE assembly. If for any reason you need to return this item, please kindly return it in it's original packaging. •...
- Page 3 PARTS LIST SHELF PANEL (A) TOP PANEL (B) SHELF CROSS BAR (C) LEFT METAL FRAME (D) Qty: 2 Qty: 1 Qty: 3 Qty: 1 RIGHT METAL FRAME REAR CROSS BAR (F) Qty: 1 Qty: 4 HARDWARE LIST ALLEN BOLT (1) ALLEN BOLT (2) ALLEN BOLT (3) ALLEN BOLT (4)
- Page 4 REQUIRED HARDWARE IN THIS STEP SKETCH DESCRIPTION 6PCS ALLEN BOLT M6*22mm ALLEN WRENCH STEP 1 Assemble shelf cross bar (C) to right metal frame (E) and left metal frame (D) with allen bolt (2) using allen wrench (7). line up with the inside These 4 holes must be one side REQUIRED HARDWARE IN THIS STEP...
- Page 5 REQUIRED HARDWARE IN THIS STEP SKETCH DESCRIPTION 4PCS PHILLIPS SCREW 4*12mm PHILLIPS SCREW DRIVER STEP 3 included Attach the remaining ends of the rear cross bars to the back side of the assembled shelves with Phillips screws (5) . Fully tighten the screws by screwdriver (not included). REQUIRED HARDWARE IN THIS STEP SKETCH DESCRIPTION...
- Page 6 REQUIRED HARDWARE IN THIS STEP SKETCH DESCRIPTION ALLEN BOLT M6*12MM STEEL PLATE ALLEN WRENCH STEP 5 Assemble steel plate (9) to top panel (B) with allen bolt (1) using Allen wrench (7). REQUIRED HARDWARE IN THIS STEP SKETCH DESCRIPTION STEEL PLATE ANTI-TIPPING STRIP WALL ANCHOR Ø8.5*30MM SCREW M4*25MM...
- Page 7 STEP 7 WALL...
