  • Page 1 OWNER’S MANUAL MANUALE UTENTE HL 6 LINE ARRAY MODULE HL 35 FLYABLE SUBWOOFER...
  • Page 3: Table Of Contents

    INSTALLATION ��������������������������������������������������������������������������������������������������������������������������������������������������������������������16 TRANSPORTATION ��������������������������������������������������������������������������������������������������������������������������������������������������������������27 ITALIANO AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI ������������������������������������������������������������������������������������������������� 28 DESCRIZIONE ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 30 PANNELLO POSTERIORE ����������������������������������������������������������������������������������������������������������������������������������������������������������������� 31 APPENDIMENTO DEL SISTEMA ����������������������������������������������������������������������������������������������������������������������������������������������������� 32 INSTALLAZIONE �����������������������������������������������������������������������������������������������������������������������������������������������������������������49 TRASPORTO ������������������������������������������������������������������������������������������������������������������������������������������������������������������������19 HL 6 DIMENSION2 �����������������������������������������������������������������������������������������������������������������������������������������������������������������������52 HL 35-S DIMENSION2 ������������������������������������������������������������������������������������������������������������������������������������������������������������������53 SPECIFICATION ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������54...
  • Page 4: Safety Precautions And General Information

    RCF S�p�A� will not assume any responsibility for the incorrect installation and / or 10� There are numerous mechanical and electrical factors to be considered when use of this product�...
  • Page 5 WARNING! CAUTION! For powered speakers, do cleaning only when the power is turned off� RCF S�p�A� reserves the right to make changes without prior notice to rectify any errors and / or omissions� Always refer to the latest version of the manual on...
  • Page 6: Description

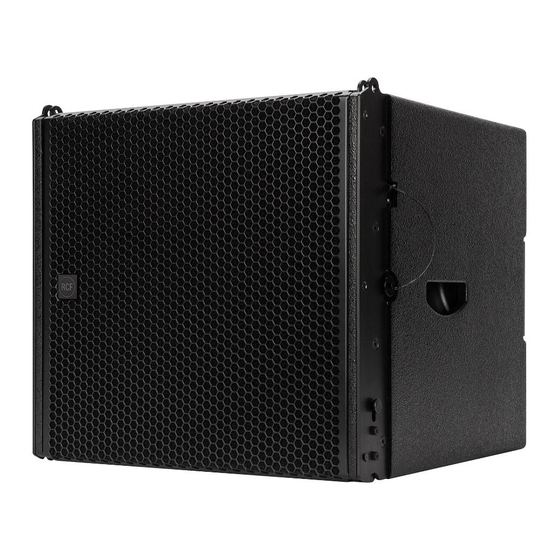

    HL 6 - LINE ARRAY MODULE HL 6 is two-way full range system, ideal when line array performance is needed, and a fast and easy set-up is a must� The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound� HL 6 features state-of-the art RCF transducers, two powerful 6�0”...
  • Page 7: Rear Panel

    3. REAR PANEL Both HL 6 and HL 35-S rear panels display 2 sockets, both for ‘Neutrik Speakon NL4’ (4-pole) plugs: One of the two sockets (indifferentely) receives the signal; the other one becomes the “THROUGH” socket and be used to link another speaker�...
  • Page 8: Rigging The System

    4. RIGGING THE SYSTEM RCF has developed a complete procedure to set up and hang a line array system starting from software data, enclosures, rigging, accessories, cables, until the final installation� WARNING! CAUTION! GENERAL RIGGING WARNINGS AND SAFETY PRECAUTIONS: Suspending loads should be done with extreme caution...
  • Page 9 To better comprehend in which safety range the mechanics are working a simple introduction is needed: HL 6 arrays’ mechanics are built with certified UNI EN 10025 Steel�...
  • Page 10 PREDICTION SOFTWARE – SHAPE DESIGNER RCF Easy Shape Designer is a temporary software, useful for the setup of the array, for mechanics and for proper preset suggestions� The optimal setting of a loudspeaker array cannot ignore the basics of acoustics and the awareness that many factors contribute to a sonic result that matches expectations�...
  • Page 11 4. RIGGING THE SYSTEM You may wait a few seconds after the double click on the installer because the software checks if Matlab Libraries are available� After this step the installation begins� Double-click the last installer (check for the last release in the download section of our website) and follow the next steps�...
  • Page 12 4. RIGGING THE SYSTEM After the choice of folders for the Shape Designer software (Figure 2) and Matlab Libraries Runtime the installer takes a couple of minutes for the installation procedure�...
  • Page 13 4. RIGGING THE SYSTEM...
  • Page 14 DESIGNING THE SYSTEM The RCF Easy Shape Designer software is divided into two macro sections: the left part of the interface is dedicated to project variables and data (size of audiences to cover, height, number of modules, etc�), the right part shows the processing results�...
  • Page 15 4. RIGGING THE SYSTEM RECOMMENDED WORKFLOW Pending the official and definitive simulation software, RCF recommends the use of HL 6 Shape Designer together with Ease Focus 3� Because of the need of interaction between different software, the recommended workflow assumes the following steps for every array in the final project: - Shape Designer: audience and array setup�...
  • Page 16: Installation

    5. INSTALLATION RIGGING COMPONENTS Accessory p/n Description 13360360 BARRA SOSPENSIONE HDL6-A E HDL12-AS - up to 16 HDL6-A - up to 8 HDL12-AS - up to 4 HDL12-AS + 8 HDL6-A 13360022 QUICK LOCK PIN 13360372 FLY BAR PICK UP HDL6-A CONNECTION BRACKET FOR SECURELY LOCKING THE STACKING CLUSTER ON A SUBWOOFER POLE MOUNT BRACKET...
  • Page 17 5. INSTALLATION ACCESSORIES 13360129 HOIST SPACING CHAIN� It allows enough space for the hang of most 2 motor chain containers and avoids any impact on the vertical balance of the array when it is suspended from a single pick-up point� 13360372 FLY BAR PICK UP HDL6-A + 2 QUICK LOCK PIN (SPARE PART P/N 13360022)
  • Page 18 5. INSTALLATION 4�1 - FLYBAR SETUP The HL 6 flybar allows to set the central bar in two different configurations “A” e “B”� This accessory is provided in “A” configuration� “B” configuration allows a better upper inclination of the cluster�...
  • Page 19 5. INSTALLATION 4�2 - SYSTEM SUSPENSION PROCEDURE SINGLE PICK UP POINT Position the flybar pick-up point as shown in the software, respecting the position “A” or “B”� DUAL PICK UP POINT Allows to lift the cluster with two pulleys adding an optional pick up point� PICK UP POINT “B”...
  • Page 20 1� Insert the frontal quick lock pins “F” 2� Rotate the rear bracket and secure it to the flybar with the rear quick lock pin “S” to the HL 6 Link Point hole 4�2�2 - SECURING THE SECOND HL 6 SPEAKER TO THE FIRST (AND CONSECUTIVE) 1�...
  • Page 21 5. INSTALLATION 4�2�3 - SECURING THE FLYBAR TO THE FIRST HL 35-S SPEAKER 1� Insert the frontal quick lock pins “F” 2� Rotate the rear bracket and secure it to the flybar with the rear quick lock pin “S” on the HL 35-S Link Point hole� 4�2�4 - SECURING THE SECOND HL 35-S SPEAKER TO THE FIRST (AND CONSECUTIVE) 1�...
  • Page 22 5. INSTALLATION 4�2�5 - CLUSTER HL 35-S + HL 6 1� Using the quick lock pin “P”, secure the linking bracket to the HL 6 speaker on the “Link point to HL 35-S” hole, on the rear bracket� 2� Rotate the HL 6 rear bracket and block it on the linking bracket between the two metal flaps�...
  • Page 23 1� Secure the flybar to HL 35-S 2� Secure the stacking bar“B” (as shown in the picture) to the flybar using the quick lock pin “S” (follow the indication “stacking point”) 1� Secure HL 6 to the flybar using the frontal quick lock pins “F1”�...
  • Page 24 2� Secure the flybar to the safety bracket using the linchpins “X” and block them with the cotter pins “R”� 3� Adjust the feet to stabilize the flybar on the subwoofer then block them with thieir nuts to avoid unscrewing� 4� Assemble the HL 6 speaker with the same procedure� WARNING! Always verify the system solidity in every configuration�...
  • Page 25 1� Screw all three plastic feet “P”� 2� Adjust the feet to stabilize the flybar on the subwoofer then block them with thieir nuts to avoid unscrewing� 3� Assemble the HL 6 speaker with the same procedure� WARNING! Always verify the system solidity in every configuration�...
  • Page 26 1� Secure the flybar on the pole by screwing the knob “M” 2� Assemble the speakers HL 6 with the same procedure used on stacking on sub HL 35-S WARNING! Always verify the system solidity in every configuration and the pole payload�...
  • Page 27: Transportation

    3� Proceed with the second speaker repeating steps “1” and “2” WARNING! The kart has been designed to carry up to 6 speakers� Do not stack more than six HL 6 on one kart� WARNING! During transportation ensure the rigging components are not stressed or damaged by mechanical forces�...
  • Page 28: Avvertenze Per La Sicurezza E Informazioni Generali

    è ancorato il prodotto (parete, soffitto, struttura, ecc�) a dei componenti utilizzati Informazioni utili e rilevanti sull’argomento NOTE IMPORTANTI per il fissaggio (tasselli, viti, staffe non fornite da RCF ecc�) che devono garantire sicurezza del sistema / installazione nel tempo, anche considerando, ad esempio, le Informazioni riguardanti l’utilizzo di vibrazioni meccaniche normalmente generate dai trasduttori�...
  • Page 29 ATTENZIONE! CAUTELA! Per gli altoparlanti alimentati, eseguire la pulizia solo quando l’alimentazione è spenta� RCF S�p�A� si riserva il diritto di apportare modifiche senza preavviso per rettificare eventuali errori e/o omissioni� Fare sempre riferimento all’ultima versione del...
  • Page 30: Descrizione

    HL 6 - DIFFUSORE LINE ARRAY HL 6 è un sistema full range a due vie, ideale quando sono necessarie prestazioni line array e una configurazione facile e veloce� Il concetto di questo diffusore deriva dal mondo del touring, racchiudendo in un cabinet compatto tutta l’esperienza del suono professionale RCF�...
  • Page 31: Pannello Posteriore

    3. PANNELLO POSTERIORE Entrambi i pannelli posteriori di HL 6 e HL 35-S presentano due prese, entrambe per connettori‘Neutrik Speakon NL4’ (a 4 poli): Una delle due prese (indifferentemente) riceve il segnale; l’altra presa diventa la presa “THROUGH” e può essere usata per rilanciare il segnale a un altro diffusore�...
  • Page 32: Appendimento Del Sistema

    4. APPENDIMENTO DEL SISTEMA RCF ha sviluppato una procedura completa per configurare e sospendere un sistema line array a partire da dati software, custodie, rigging, accessori, cavi, fino all’installazione finale� ATTENZIONE! CAUTELA! AVVERTENZE GENERALI PER L’ATTREZZATURA E PRECAUZIONI DI SICUREZZA:...
  • Page 33 Per comprendere meglio in quale range di sicurezza operano le meccaniche è necessaria una semplice introduzione: le meccaniche degli array HL 6 sono costruite con Acciaio certificato UNI EN 10025� Il software di previsione RCF calcola le forze su ogni singola parte sollecitata dell’assieme e mostra il fattore di sicurezza minimo per ogni collegamento�...
  • Page 34 Sistema molto incurvato PREDICTION SOFTWARE – SHAPE DESIGNER RCF Easy Shape Designer è un software temporaneo, utile per il setup dell’array, per la meccanica e per i corretti suggerimenti di preset� L’impostazione ottimale di un array di diffusori non può prescindere dalle basi dell’acustica e dalla consapevolezza che molti fattori contribuiscono a un risultato sonoro all’altezza delle aspettative�...
  • Page 35 4. APPENDIMENTO DEL SISTEMA È possibile che si debba attendere alcuni secondi dopo il doppio clic sul programma di installazione perché il software deve verificare che le librerie Matlab siano disponibili� Dopo questo passaggio inizia l’installazione� Fare doppio clic sull’ultimo programma di installazione (controllare l’ultima versione nella sezione download del nostro sito Web) e seguire i passaggi successivi�...
  • Page 36 4. APPENDIMENTO DEL SISTEMA Dopo la scelta delle cartelle per il software Shape Designer (Figura 2) e Matlab Libraries Runtime, l’installer impiega un paio di minuti per la procedura di installazione�...
  • Page 37 4. APPENDIMENTO DEL SISTEMA...
  • Page 38 PROGETTARE IL SISTEMA Il software RCF Easy Shape Designer è diviso in due macro sezioni: la parte sinistra dell’interfaccia è dedicata alle variabili e ai dati di progetto (dimensione delle platee da coprire, altezza, numero di moduli, ecc�), la parte destra mostra i risultati dell’elaborazione �...
  • Page 39 FLUSSO DI LAVORO CONSIGLIATO In attesa del software di simulazione ufficiale e definitivo, RCF consiglia l’utilizzo di HL 6 Shape Designer insieme a Ease Focus 3� A causa della necessità di interazione tra diversi software, il flusso di lavoro consigliato presuppone il seguenti passaggi per ogni array nel progetto finale: - Shape Designer: configurazione del pubblico e dell’array�...
  • Page 40 5. INSTALLAZIONE COMPONENTI PER L’APPENDIMENTO Accessory p/n Description 13360360 BARRA SOSPENSIONE HDL6-A E HDL12-AS - up to 16 HDL6-A - up to 8 HDL12-AS - up to 4 HDL12-AS + 8 HDL6-A 13360022 QUICK LOCK PIN 13360372 FLY BAR PICK UP HDL6-A STAFFA DI CONNESSIONE PER BLOCCARE IN MODO SICURO L’ARRAY SU UN SUBWOOFER STAFFA POLE MOUNT...
  • Page 41 5. INSTALLAZIONE ACCESSORIES 13360129 HOIST SPACING CHAIN� Consente di appendere l’array lasciando spazio sufficiente per la catena del motore ed evita qualsiasi impatto sull’equilibrio verticale dell’array quando è sospeso a un unico punto di sospensione� 13360372 FLY BAR PICK UP HDL6-A + 2 QUICK LOCK PIN (SPARE PART P/N 13360022) 13360351 AC 2X AZIMUT PLATE�...
  • Page 42 5. INSTALLAZIONE 4�1 - INSTALLAZIONE DEL FLYBAR Il flybar HL 6 permette di impostare la barra centrale in due diverse configurazioni “A” e “B”� Questo accessorio è fornito in configurazione “A”� La configurazione “B” permette una migliore inclinazione superiore del cluster��...
  • Page 43 5. INSTALLAZIONE 4�2 - PROCEDURA DI SOSPENSIONE DEL SISTEMA SINGOLO PICK UP POINT Posizionare il pick up point del flybar come mostrato nel software, rispettando le posizioni “A” o “B”� DOPPIO PICK UP POINT Permette di sollevare il cluster con due pulegge aggiungendo un pick up point addizionale� PICK UP POINT IN POSIZIONE “A”...
  • Page 44 1� Inserire i quick lock pin frontali “F” 2� Ruotare la staffa posteriore a agganciarla al flybar con i quick lock pin “S” posteriori al foro di fissaggio di HL 6 4�2�2 - AGGANCIARE IL SECONDO DIFFUSORE HL 6 AL PRIMO (E SUCCESSIVI) 1�...
  • Page 45 5. INSTALLATION 4�2�3 - AGGANCIARE IL FLYBAR AL PRIMO SUB HL 35-S 1� Agganciare i quick lock pin frontali “F” 2� Ruotare la staffa posteriore e agganciarla al flybar con i quick lock pin posteriori “S” sui fori di fissaffio dell’HL 35-S� 4�2�4 - AGGANCIARE IL SECONDO SUB HL 35-S AL PRIMO (E SUCCESSIVI) 1�...
  • Page 46 5. INSTALLATION 4�2�5 - CLUSTER HL 35-S + HL 6 1� Usando il quick lock pin “P”, agganciare la staffa di collegamento al diffusore HL 6 sul foro della staffa posteriore indicato come “Link point to HL 35-S”� 2� Ruotare la barra posteriore di HL 6 e bloccarla sulla staffa di collegamento tra le due barre metalliche�...
  • Page 47 1� Fissare il flybar a HL 35-S 2� Fissare la stacking bar “B” (come mostrato nell’immagine) al flybar usando i quick lock pin “S” (seguire l’indicazione “stacking point”) 1� Fissare HL 6 al flybar usando i quick lock pin frontali “F1”�...
  • Page 48 3� Regolare i piedini per stabilizzare il flybar sul subwoofer e bloccarli con i dadi per evitare che si svitino� 4� Montare il diffusore HL 6 con la stessa procedura descritta in precedenza� ATTENZIONE! Verificare sempre la solidità del sistema in ogni configurazione�...
  • Page 49: Installazione

    3� Regolare i piedini per stabilizzare il flybar e bloccarli con i dadi per evitare che si svitino� 4� Montare il diffusore HL 6 con la stessa procedura descritta in precedenza� ATTENZIONE! Verificare sempre la solidità del sistema in ogni configurazione�...
  • Page 50 1� Fissare il flybar sul palo avvitando il pomello “M” 2� Montare il diffusore HL 6 con la stessa procedura descritta per il montaggio su HL 35-S ATTENZIONE! Verificare sempre la solidità del sistema e la portata del palo in ogni configurazione�...
  • Page 51: Trasporto

    Attenzione: il foro da usare è quello indicato con 0° sulla staffa posteriore del diffusore� 3� Procedere con il secondo diffusore ripetendo i punti “1” e “2” ATTENZIONE! Il carrello è stato progettato per trasportare fino a 6 diffusori� Non impilare più di sei HL 6 su un carrello�...
  • Page 52: Hl 6 Dimension2

    HL 6 DIMENSIONS...
  • Page 53: Hl 35-S Dimension2

    HL 35-S DIMENSIONS...
  • Page 54: Specification

    6. SPECIFICATIONS HL 6 HL 35-S Acoustical specifications Frequency Response (-10dB): 65 Hz ÷ 20000 Hz 40 Hz ÷ 140 Hz 134 dB Max SPL @ 1m: 131 dB Horizontal coverage angle: 100° Vertical coverage angle: 10° Directivity index Q:...
  • Page 56 10307717 RevA RCF S�p�A� Via Raffaello Sanzio, 13 - 42124 Reggio Emilia - Italy Tel +39 0522 274 411 - Fax +39 0522 232 428 - e-mail: info@rcf�it - www�rcf�it...
