- Page 1 Taylorcraft 72 Electric Conversion Kit AE-502 Page 1...
- Page 2 Page 2...

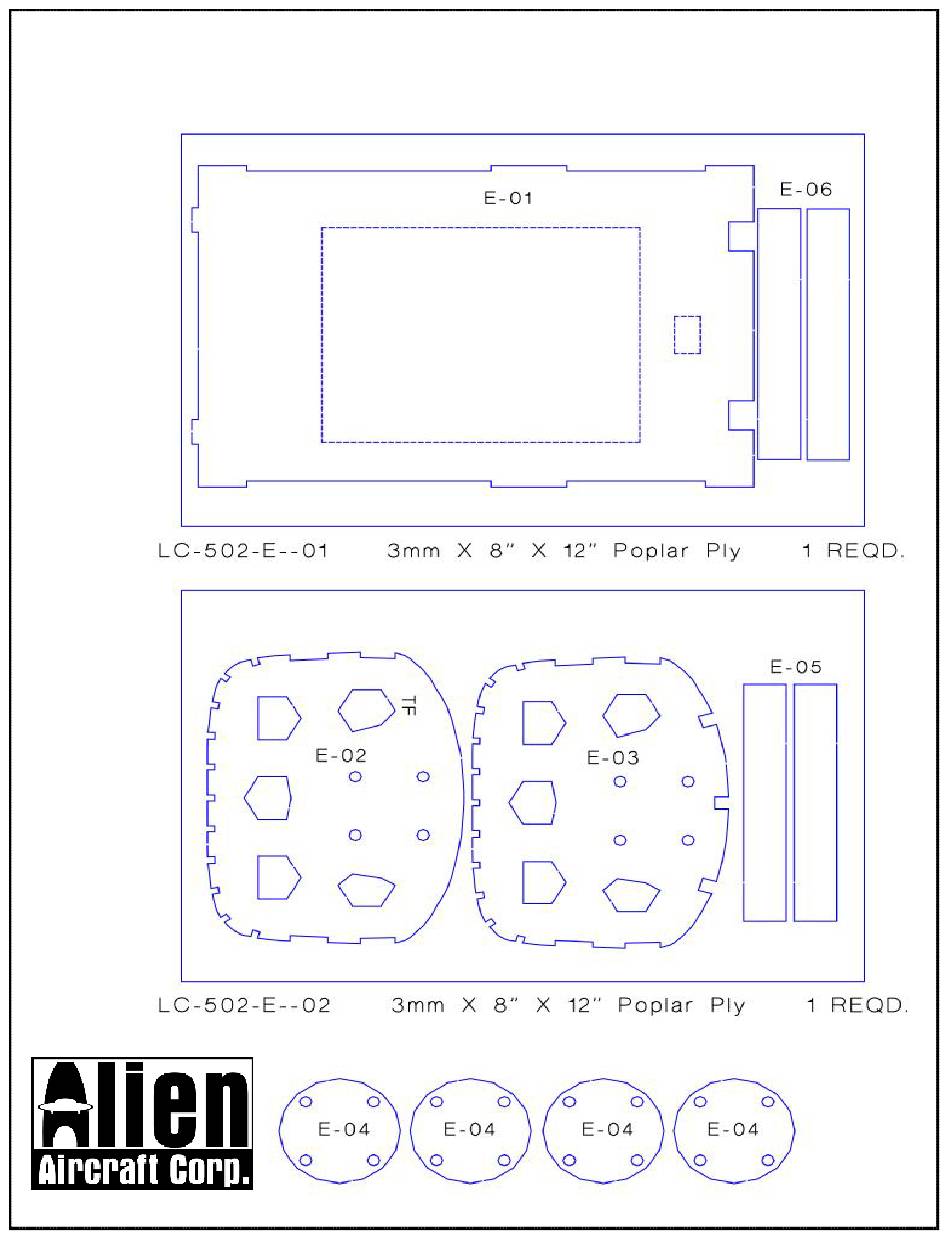

- Page 3 Kit # AE-502 Kit Contents: Laser Cut Sheets Qty. Name ..Description 1 ..LC-501-E-01 ....... . .3mm X 6” X 24” Laser Cut POPLAR PLY 1 .
- Page 4 Building Instructions: Building the electric powered version of the Taylorcraft 72 is almost identical to building the glow powered version. The main difference between the models are the firewall/motor mount and the bottom hatch. As such, you should follow the regular instruction manual to build the model with the following exceptions: Step 14...The fuel tank tray is now the battery tray.
- Page 5 THEN ...Cut out the hatch on the dashed line..Glue the E-05’s and E-06’s to the inside of E-01 to make a frame / ledge for the hatch to sit on. NOTE: We do not include any latch for the hatch because I have found that everyone seems to secure the hatch differently than I do, and I don’t like to sell you parts that you will not use.
- Page 6 NOTES ABOUT THE ARMING SWITCH: *YOU MUST USE THE ARMING SWITCH. THIS IS AN IMPORTANT SAFETY ITEM. *THE PLUG SHOULD ONLY BE INSERTED IN THE ARMING SWITCH IMMEDIATELY PRIOR TO FLIGHT. *ALWAYS REMOVE THE PLUG FROM THE ARMING SWITCH IMMEDIATELY AFTER EVERY FLIGHT. *THE PLUG SHOULD NEVER BE INSERTED IN THE ARMING SWITCH WHILE CHANGING OR INSTALLING THE BAT- TERY IN THE MODEL.
