Alien Aircraft Corp C-310-B Assembly Instructions Manual

42.2 “ wingspan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

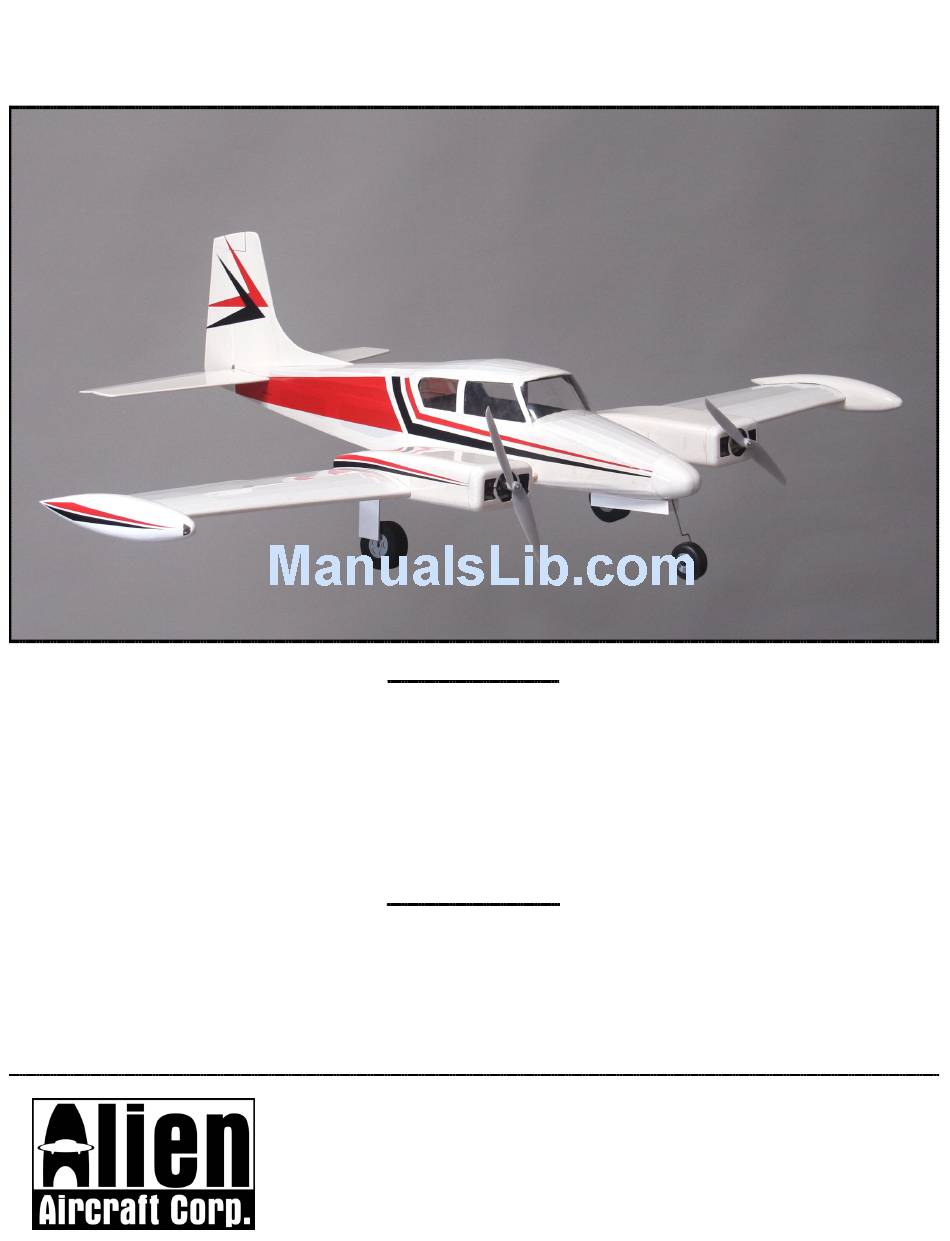

C-310-B
KIT # K-201

Assembly Instructions

WARRANTY
Alien Aircraft Corp. guarantees this kit to be free from defects in both material and workmanship at the date of purchase. This warranty does not
cover any component parts damaged by use or modification. In no case shall Alien Aircraft Corp.s' liability exceed the original cost of the purchased
kit. Further, Alien Aircraft Corp. reserves the right to change or modify this warranty without notice. The quality and flyability of your finished
model depends on how you build it; therefore, we cannot in any way guarantee the performance of your completed model, and no representations are
expressed or implied as to the performance or safety of your completed model.
In that Alien Aircraft Corp. has no control over the final assembly or material used for final assembly, no liability shall be assumed nor accepted for
any damage resulting from the use by the user of the final user-assembled product. By the act of using the user-assembled product, the user accepts
all resulting liability. If the buyer is not prepared to accept the liability associated with the use of this product, the buyer is advised to return this kit
immediately in new and unused condition to the place of purchase.
WARNING!!!
Failure to follow these safety precautions may result in severe injury to yourself and others.
Use safety glasses when running the motor. Do not run the motor in an area of loose gravel or sand; the propeller may throw such material in your
face or eyes. Keep your face and body as well as all spectators away from the plane of rotation of the propeller as you run the motor. Keep these
items away from the prop: loose clothing, shirt sleeves, ties, scarfs, long hair or loose objects such as pencils or screwdrivers that may fall out of
shirt or jacket pockets into the prop. Always remove the LiPo battery from the plane before charging. Always use a charger designed to charge LiPo
batteries for charging the LiPo flight battery. Never leave the LiPo battery unattended while charging. If the battery becomes more than just warm,
discontinue charging.
Alien Aircraft Corp.
TM
403-A Flomich Street
Holly Hill, FL. 32117
(386)676-0074
© Alien Aircraft Corp. 2010
