1 2
Item Description
1 Front mount bracket
2 Outer rail
Ball bearing retainer
3
4 Rear mount bracket
5 Mid rail, slides within outer rail

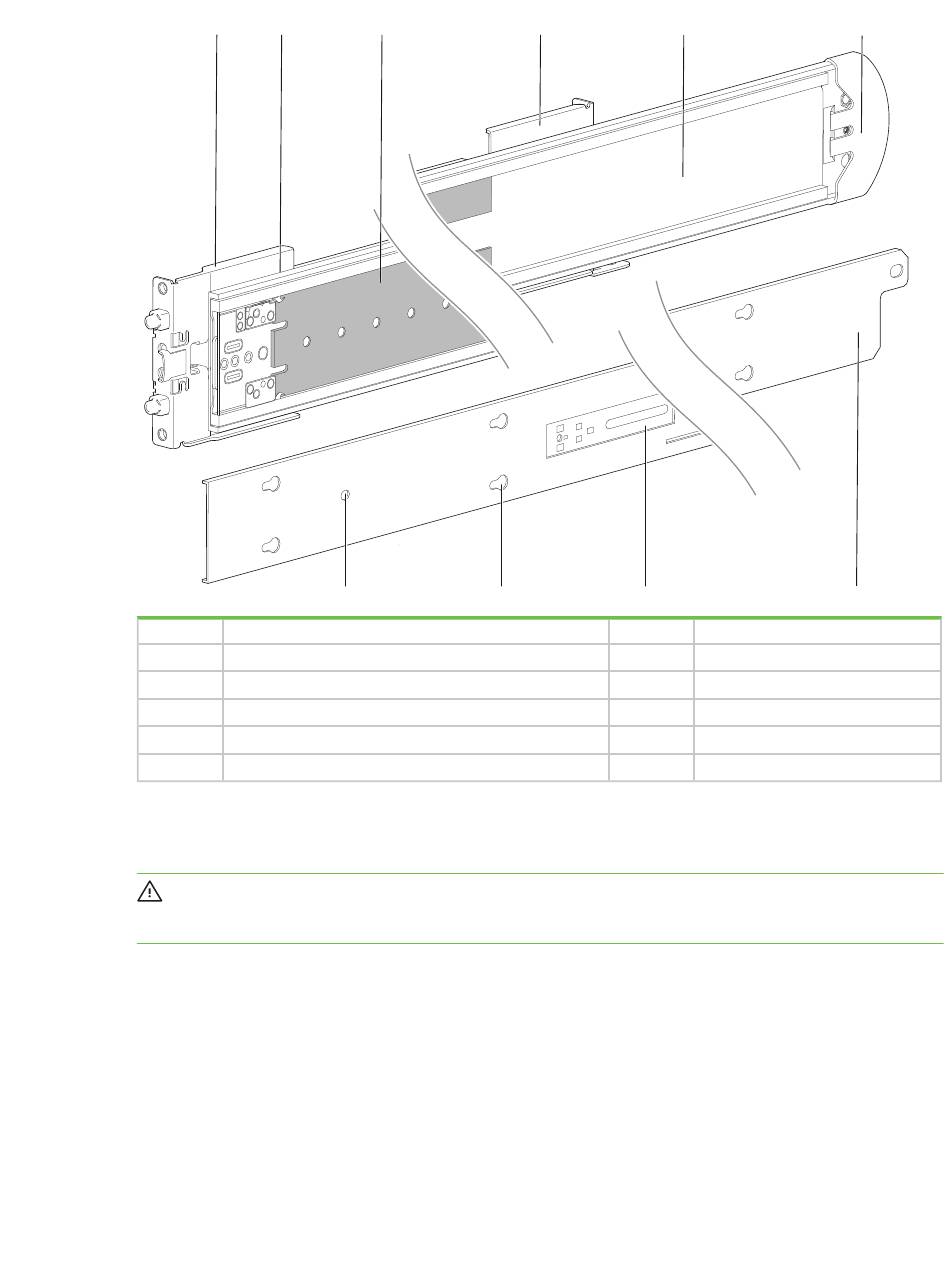

Figure 1 Separated left rail assembly, inner sides facing
2. Examine the rails to distinguish each component, particularly the ball bearing retainer and mid rail.
WARNING! Carefully inspect the rails. Do not use damaged or warped rails. Return them. Rail failure can allow
the storage enclosure to fall and result in serious injury since the load on them can exceed 300 lb (136 kg).
3. (Optional) Clip an end cap into the slots at the rear outer side of each rail, locking it in place.
4. Extend the mid and inner rail on the outer rail of the left rail assembly until the safety lock engages with a click.
3
7 8
P/N 83-00007769-10-01 Rev. A, March 2021 • 3
4 5
9
Item Description
6 End cap
7 Slotted screw holes
8 T-pin keyholes
9 Safety lock
10 Inner rail
6
10
