Wyrestorm NetworkHD NHD-000-CTL Quick Start Manual

Controller for NetworkHD™ Systems
NHD-000-CTL
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the installation
process.
IMPORTANT! Installation Requirements
Download the following items from the product page on WyreStorm.com.
They are essential for accurate configuration and use of the NetworkHD
system.
• Latest NetworkHD Firmware
• Management Suite v1.1.0 or Higher
• NetworkHD Installation Guide
• NetworkHD Switch Recommendations
• NetworkHD Switch Configuration Guides
• NetworkHD Switch Mapping Worksheet
• NetworkHD Touch Installation Guide
• NetworkHD Touch User Guide
• 3rd Party Control System Drivers
Default Settings
IP Address: CTL Port: 192.168.11.243 | AV Port: 169.254.1.1
Default User: admin
Default Password: admin
In the Box
1x NHD-000-CTL Controller
1x Mounting Brackets for Rack Kit
1x Quickstart Guide (This Document)
1x 6-pin Terminal Block
2x Wall Mounting Brackets
1x 12V Power Supply (US/UK/EU/AU)

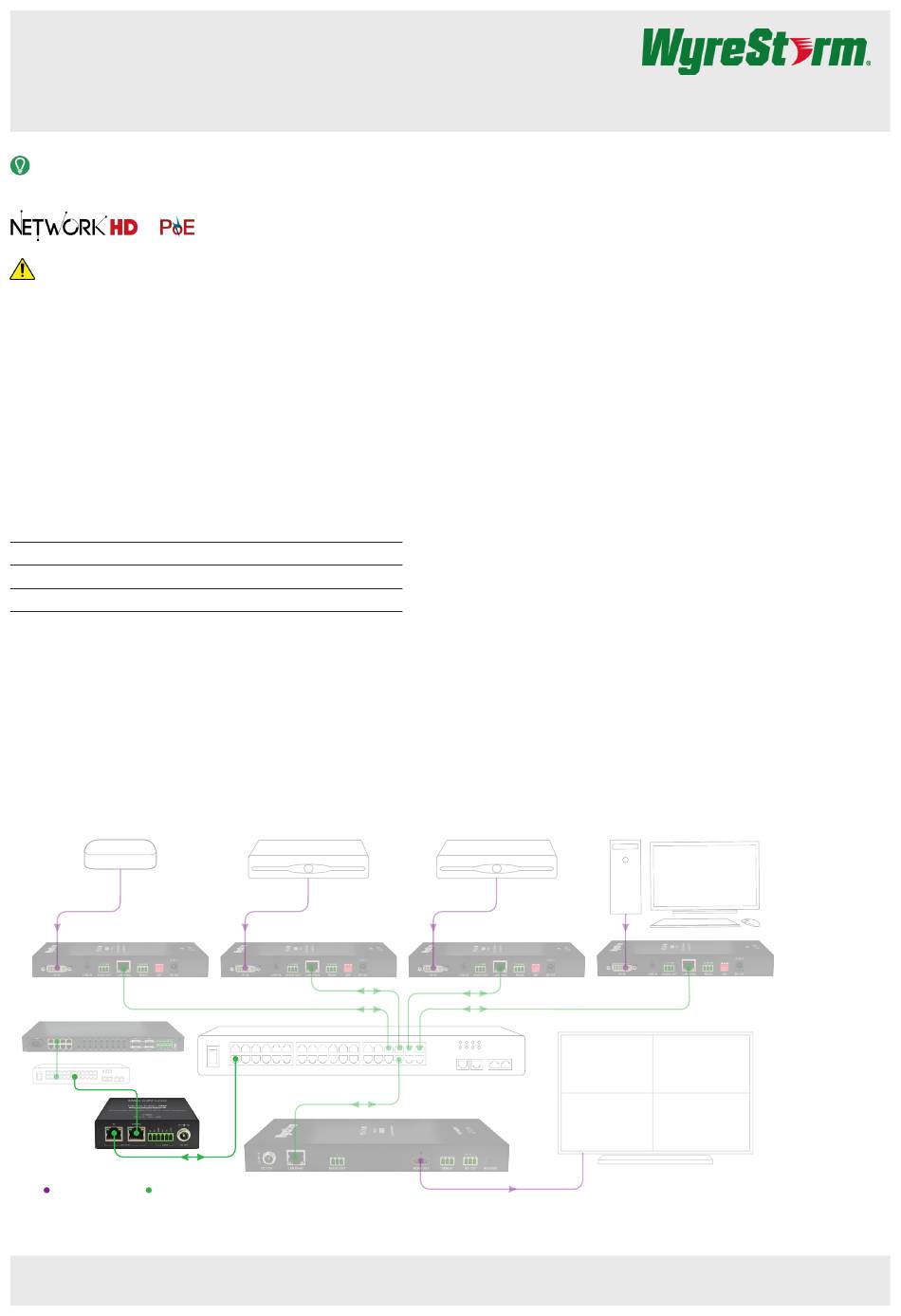

Basic Wiring Diagram
Media Player
Digital Video
NHD-200-TX
NHD-000-CTL
Key
Digital Video/DVI/HDMI Ethernet
Copyright © 2020 WyreStorm Technologies |
NHD-000-CTL Quickstart Guide | 200225
Sattellite Box 1
Digital Video
NHD-200-TX
Ethernet
NHD-220-RX
wyrestorm.com
Network Switch Requirements
• WyreStorm highly recommends the use of switches listed in the
NetworkHD Switch Recommendation Guide.
verified by WyreStorm to meet the requirements of a NetworkHD system.
• NetworkHD requires a Layer 2 managed switch network with support for
Multicast & IGMP snooping enabled. Ensure that the switch being used
supports these features and that they are configured prior to connecting
the NetworkHD system.
• Configure all network switches to the exact specifications contained in
the WyreStorm Switch Configurations Guides prior to connecting the
NetworkHD system. This will ensure proper operation from startup.
Associated Products
The NHD-00-CTL is the controller for the NetworkHD system and the
configuration varies based on the NHD components being used. Refer to the
NetworkHD Installation Guide
NHD-000-CTL.
• 100 Series
• 200 Series
• 400 Series
• 600 Series
Sattellite Box 2
Digital Video
Digital Video
NHD-200-TX
Satellite Box 1
Network Switch
Media Player
Digital Video
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 2
Quickstart Guide
These switches have been
for details on installing and configuring the
PC
NHD-200-TX
Satellite Box 2
PC
