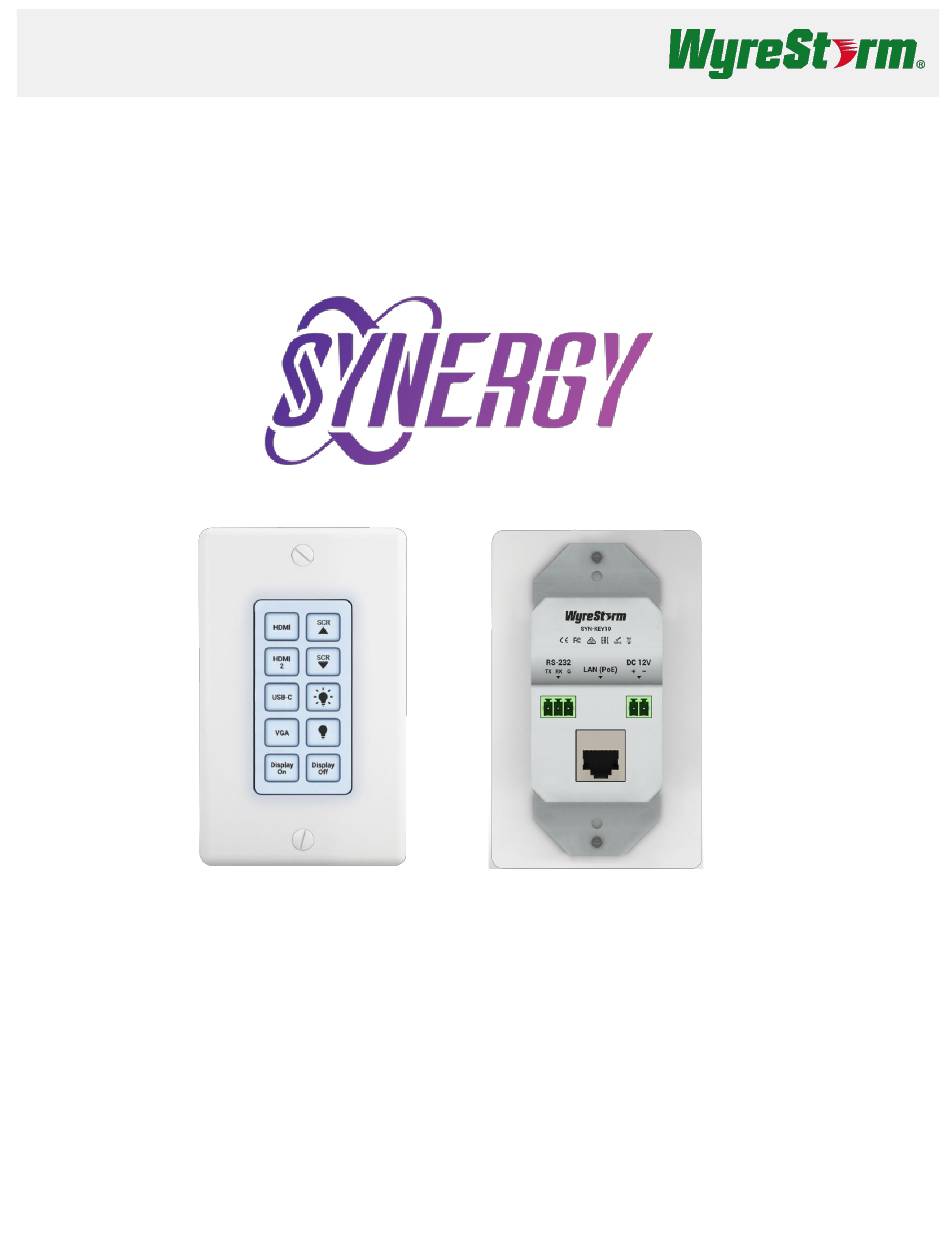

- Page 1 SYN-KEY10 SYN-KEY10 User Manual v1.0...
-
Page 2: Table Of Contents
Button Configuration .................................... 9 Edit/Test Keys ..................................... 13 LED Settings ......................................15 Network Settings ....................................17 System Settings ....................................18 Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 2 of 20 SYN-KEY10 User Manual | 230502 Support@WyreStorm.com... -
Page 3: Introduction

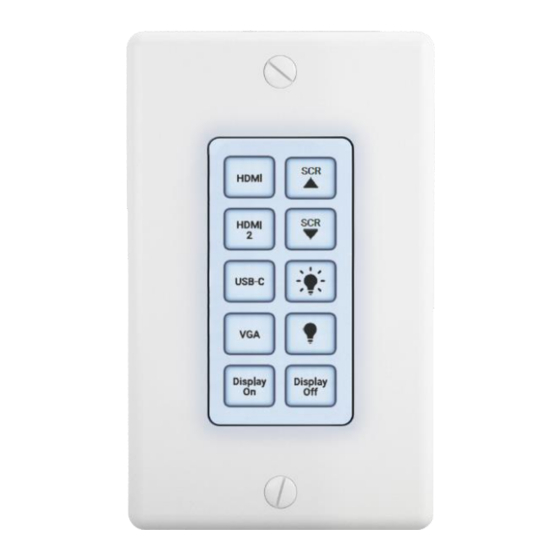

Introduction The SYN-KEY10 is a 10-button IP enabled keypad controller is a solution designed to provide a simple and easy way to control devices and specific actions. Devices including WyreStorm Synergy and Apollo products, as well as most 3 party devices over TCP/IP or RS232 and can be powered via PoE or universal PSU (sold separately). -
Page 4: Device Layout
Connect to DC 12V PSU (not included) DC 12V LAN (PoE) Connect to an Ethernet switch or Ethernet enabled device to control Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 4 of 20 SYN-KEY10 User Manual | 230502... - Page 5 Please refer to the labeled +/- indicators printed on the SYN-KEY10 and the power supply’s manufacture pinout polarity. Insulate where needed and check continuity for proper connections before use. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
-
Page 6: Connections, Operation And Application
3. Install the SYN-KEY10 into a wallbox or table configured to accept a 1-gang device. Note: Power on and test all devices before final installation TCP/IP Application Controlling over TCP/IP means multiple devices can be controlled over the network, see below application example. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 6 of 20 SYN-KEY10 User Manual | 230502 Support@WyreStorm.com... - Page 7 Controlling over RS232 means only a single device can be connected and controlled. See below application example: Note: While it is uncommon, it is possible to control a single device over RS232 while controlling multiple devices over TCP/IP at the same time. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
-
Page 8: Accessing The Web Ui
4. Type the IP address in your browser and hit enter. The following will be shown below. 5. Input the default username and password: “admin” 6. Upon logging in, you will be prompted to change your username and password. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) -
Page 9: Button Configuration
Devices page. 3. Edit/Test Keys: This is where you set the commands to each button using the configurations made in the Add/Edit Devices and Commands Settings menus. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 9 of 20 SYN-KEY10 User Manual | 230502 Support@WyreStorm.com... - Page 10 Username/Password: If the device to be controlled requires a username and password to be accessed, enter it here. After saving the settings above, the first indicator in the “active” portion of the table will slide to “Enable” Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
- Page 11 Data Bits: Select the data bits from the drop-down menu, such as “8”. Stop Bits: Select the Stop Bits from the drop-down menu, such as “1” Once saved, the device added previously will display as shown in the image below Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
- Page 12 Command: input the command that controls the device. End Flag: Select the appropriate end flag according to the device’s API Save/Cancel: save or cancel the configuration Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 12 of 20 SYN-KEY10 User Manual | 230502 Support@WyreStorm.com...
-
Page 13: Edit/Test Keys
To start, click the edit button located in the lower right hand corner. Key alias edit: This changes the button’s name (up to 24 characters), click “save” to take effect. Command: Click “Edit” in the table, opens the following page: Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) - Page 14 Command: Select one of the commands made in the previous tab “Command Settings” Trigger Mode: Select “Send by pressing” the button or “Send by releasing” the button in this menu. Save or cancel edits. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
-
Page 15: Led Settings
LED Settings allows the user to configure how the button(s) behave with LED feedback indicating the button(s) status. See below for steps on grouping buttons: 1. Click the Add to add a single group line to the table. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) - Page 16 • Buttons can be divided up to 6 groups maximum. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) 16 of 20 SYN-KEY10 User Manual | 230502 Support@WyreStorm.com...
-
Page 17: Network Settings
Note: The default setting is DHCP. If the device fails to obtain an IP address from the network, or is set as “Static”, ensure your PC is in the same network arrangement as the device. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) -
Page 18: System Settings
500ms. Once button press time exceeds configured value, the keypad enters “Long-press mode” and will repeat sending commands out at intervals of configured delays that have been configured in the Edit/Test Keys section. See example below: Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973) - Page 19 Select Logo (.png): Click to select logo file Upload: Click to upload the selected file Note: The new logo used should be in PNG format and no greater than 300x60 pixels Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
- Page 20 Note: The SYN-KEY10 can also be rest to factory default by pressing and holding the bottom 2 buttons on the keypad for 3 seconds. Reboot: Click to reboot the SYN-KEY10. After confirming the webpage will refresh automatically. Copyright © 2023 WyreStorm Technologies | WyreStorm.com Technical Support: 844.280.WYRE (9973)
