Summary of Contents for Wyrestorm NHD-100-RX

Page 1 100, 200 & 400 Series Components Installation Guide Document Revision: v2.0 Document Date: Supported Firmware: Thank you for choosing this WyreStorm product. Please read these instructions carefully before installing to avoid complications later. Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 2: Important! Safety Information
Do Not Hot swap HDMI or LAN connections - Please insert and extract cables carefully with the power SWITCHED OFF. Power is passed along transmissions so connecting and disconnecting cables while powered can result in damage to circuitry or possible injury. 2 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 3: Table Of Contents
Audio Adjustments ........................................36 Preview Streams........................................36 Troubleshooting ................................37 Contacting Technical Support .....................................38 Warranty and Service ..............................39 Warranty Limits & Exclusions ....................................39 Obtaining Warranty Service ....................................39 3 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 5: Introduction
Before Beginning WyreStorm recommends visiting the product page before installing this product for updates to this Installation Guide as well as other information about this product. Read through this document in its entirety.
Page 6: In The Box

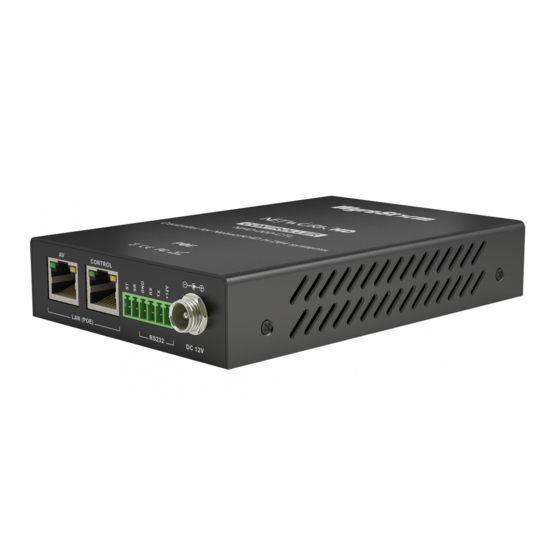

Flashing Blue: Unit does not have an active sync to a source. Solid Red: Unit is powered on Power LED Indicator Press down for 5 seconds to reset the NHD-000-CTL back to factory default settings. Reset Button 10/100Mbps LAN port. Default IP configuration set to 169.254.1.1 with a subnet mask of AV/POE LAN Port 255.255.0.0.
Page 7: Nhd-100/200/400-Tx Front Panel
Flashing Blue: Unit does not have an active sync to a source. When pressed OSD (On Screen Display) information such as IP address, Remote and Local ID Button hostnames. 7 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 8: Nhd-100/200/210/220-Rx Rear Panels
Flashing Blue: Unit does not have an active sync to a source. Solid Red: Unit is powered on. Power LED Indicator NHD-SW-0501 Rear Panel Connects to a 100~240V AC 50/60Hz AC mains outlet. AC Power 8 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 9 8-Pin RJ-45 female | 10/100Mbps auto-negotiating. Connect to a supported Layer 2 network switch to Ethernet Port transmit audio/video to a supported NetworkHD decoder. 9 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 10: Nhd-400-Tx Rear Panel
Loop out for HDMI In. Can be connected to a local HDMI display. HDMI Out Connects to an IR Receiver. IR RX Connect to an IR Emitter. IR TX 10 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 11: Installation
This product should be installed on a solid, flat, level surface. The location should be dry, well ventilated, and out of direct sunlight. It is not acceptable to stack multiple products one atop of the other without a ventilation space between the units. WyreStorm recommends that if using more than two of this product, an empty space at least 1 rack unit (1.75 in) in height is used between every...
Page 12: Basic Wiring Diagrams
Basic Wiring Diagrams NetworkHD 100 Series with Control System NetworkHD 200 Series with NetworkHD Touch Control 12 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 13: Specifications
Voltage ±1 kV Product Dimensions 200mm x 25 mm x 94mm / 7.9’’ x 1.0’’ x 3.7’’ Weight 0.48 Kg Certification CE, FCC, RoHS compliant 13 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 14: Nhd-Sw-0501
48V DC 100mA Product Dimensions 220mm x 50 mm x 270mm / 8.6’’ x 1.9’’ x 10.6’’ Weight 2.0 Kg / 4.4lbs Certification CE, FCC 14 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 15: Nhd-100-Rx / Nhd-200-Rx / Nhd-210-Rx
Voltage ±1 kV Product Dimensions 200mm x 25 mm x 94mm / 7.9’’ x 1.0’’ x 3.7’’ Weight 0.6 Kg Certification CE, FCC, RoHS compliant 15 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 16: Nhd-220-Rx
1080p and under: 24, 30, 36 bit | 2160p: 24 bit Maximum Pixel Clock Up to 300MHz HDR (High Dynamic Range) 10bit HDMI 1.4b 3D: TnB, SbS, F.P 16 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 17 Wall box - 6U when rack mounted Height 220mm/8.66in Width 130mm/5.11in Depth 25mm/0.98in Weight 0.75kg/1.65lbs (Unpackaged) Safety and Emission CE | FCC | RoHS 17 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 18: Configuration
WyreStorm NetworkHD is built to run over a standard network infrastructure, however the quality of this infrastructure is critical. We have tested many brands of switches all of which perform well in small system configurations of around 10 Encoders and Decoders.
Page 19: Networkhd Touch
In order for the app to have the ability to both matrix switch A/V and provide preview streams from the encoders, ALL devices on the LAN need to exist in the same IP subnet range. This includes the wireless router, NHD-000-CTL and both encoders and decoders. The below diagram represents a NetworkHD Touch installation.
Page 20: Wyrestorm Management Suite
√ Preview Streams The NHD-000-CTL also features a WebUI for simple control of a NetworkHD 100 or 200 series system. To access the WebUI of the NHD-000-CTL perform the following. Connect either the AV or Control port of the CTL to an approved network switch.
Page 21: Networkhd Maintenance Tool
From the Management Suite Menu select the Maintenance Tool. When prompted, select Network and the connection method. Firmware updates for NetworkHD can always be found at WyreStorm.com in the Downloads tab of any NetworkHD product. Once any applicable firmware updates have been downloaded perform the following.
Page 22 In the Upgrade Module section select the Open button next to IP_MAIN. Select the appropriate .bin firmware file for the device(s) being upgraded. 22 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 23: Networkhd 000 Console Software
The progress of the upgrade can be seen as it is performed. Repeat this process for any other devices. To update the firmware on the NHD-000-CTL perform the steps below. Open a web browser and log into the WebUI of the CTL. The default IP addresses are 192.168.11.243 (Control Port) or 169.254.1.1 (AV Port).
Page 24: Configuring Ip Addresses
2 minutes to complete. A solid blue status light on the CTL indicates it is fully booted and operational. 24 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 25: Creating Aliases
Creating Aliases Aliases can be set to encoders and decoders. If using a third-party control system driver from WyreStorm alias names should start with “INX” or “OUTX” where X is a number 1 or higher. The alias names can also include a “ - “ followed by display or source information. For example, a complete alias could look like IN1-AppleTV or OUT1-ConferenceTV.
Page 26: Creating Groups
Video walls are only possible with NetworkHD 200 encoders and 210 decoders or 400 series. Up to a 16x16 video wall can be created and the video wall must be a member of a group. 26 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 27 Note: Video walls must be a complete shape – ie. 2x1 or 2x2, 3x3 etc – They cannot be L or T shaped etc. It is recommended that walls have the same number of columns as rows so that video stretching does not occur. 27 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 28 Each section of a video wall allows for the video image to be independently adjusted. To do this select the Advanced Settings tab. 10. Select a decoder and enter a value in the appropriate field. All values entered will be multiplied by 8 28 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 29: Configuring The Nhd-220-Rx
To adjust which layouts are accessible in the NetworkHD Touch app or to create default source assignments perform the following. Right click a NHD-220-RX and choose Layout Settings 29 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 30 To assign default encoders to multi-view layouts perform the following. Select a layout from the drop down menu. Select a source for each location in the multi-view layout. Click the Save button. 30 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 31: Configuring The Nhd-Sw-0501
Right Click the NHD-SW-0501 again to adjust Video Settings. The following adjustments can be made:  Video Input Selection  Local HDMI Output Resolution  HDCP Enable/Disable  VGA Output Resolution 31 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 32: Configuring Cec & Rs-232 Control
For RS-232 control adjust the RS-232 Settings for the displays and enter in the serial commands in the Power on and Standby boxes respectively. It is important to note the format of the display’s serial command Click Apply for the settings to take effect. 32 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 33 Bulk encoder and decoder video and latency settings can be adjusted by selecting the Video tab. Ensure the proper device format is selected prior to adjusting settings. NHD-IP products use the JPEG 2000 options and the NHD-100 or 200 series products use H.264. 33 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 34: Uploading Configurations To The Nhd-000-Ctl
Check the Low delay settings box Select the drop down menu next to Video mode and select High Quality video or Low Delay. Click Apply. 34 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 35 Click the Video tab and select H.264 for 100 & 200 series or JPEG 2000 for 400 series. From the device list check any appropriate devices. Adjust any suitable settings and click Apply. H.264 Settings JPEG 2000 Settings 35 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 36: Audio Adjustments
Hit the search button located at the top left of the Console. All available NetworkHD components along with their IP addresses will populate. NetworkHD encoders appear at the right of the Console in the Other Devices section. 36 of 40 NetworkHD 100/200/400 Series Installation Guide | Copyright © 2017 WyreStorm Technologies | wyrestorm.com...
Page 37: Troubleshooting
Note: The WyreStorm Management Suite is only available on Windows OS. If using a Mac computer, network scanning software can be used to find encoders and their IP addresses. The NetworkHD Console is required if adjusting IP addresses. Choose an encoder from the list and note its IP address.
Page 38: Contacting Technical Support
X in the CTL matrix to remove its record from the CTL. Contacting Technical Support Should further clarification of the content of this manual or assistance on troubleshooting be required, please contact WyreStorm technical support.
Page 39: Warranty And Service
Obtaining Warranty Service Prior to returning a WyreStorm product for factory service, a service authorization must be obtained from a WyreStorm technical support representative. At the time of contact an address for shipping and an authorization number will be supplied. Refer to...
Page 40: Networkhd 100/200/400 Series Installation Guide | Copyright © 2017 Wyrestorm Technologies | Wyrestorm.com 3 Of
WyreStorm reserves the right to change software, control codes and specifications without notice. WyreStorm will not be liable for any use of this information or any changes it may make to those products. The use of this information constitutes an agreement by the user to these limitations and exclusions.
