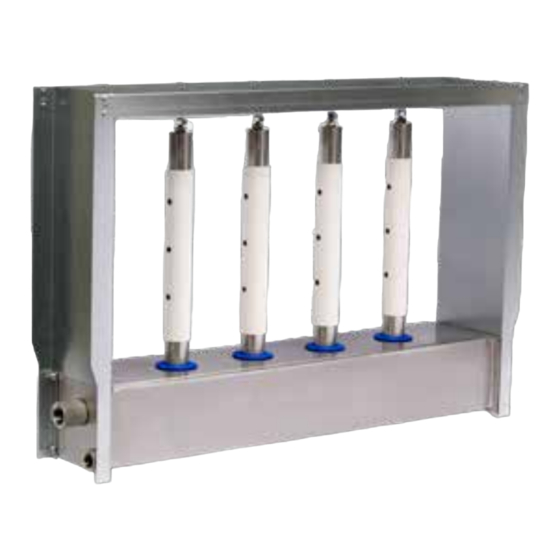

- Page 1 ULTRA-SORB MODEL MP DISPERSION PANELS Model MP Steam Dispersion Panels Installation, Operation, and Maintenance Manual Read and save these instructions...
-
Page 2: Table Of Contents
High-Efficiency Tubes ........24 Replacing Ultra-sorb Model MP dispersion tubes ....25 Troubleshooting . - Page 3 PVDF is resistant to UV light. UV-C light from germicidal lamps will not cause the insulating material to degrade. • Do not tighten mounting clamps or fasteners to any part of the dispersion tube. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL...
-
Page 4: Installation
INSTALLATION Field assembly Note: These assembly instructions are for Ultra-sorb Model MP panels shipped unassembled by request or as required. Panels with unit height more than 93" (2360 mm) are shipped unassembled. LAY OUT THE PANEL COMPONENTS Place the panel components on a large, flat working surface. - Page 5 Field assembly INSERT DISPERSION TUBES INTO AN UNASSEMBLED ULTRA-SORB PANEL If the Ultra-sorb Model MP panel was shipped unassembled, the dispersion tubes need to be inserted into the panel. Note: Use soapy water to lubricate end of tubes where inserted into rubber grommet.
-
Page 6: Mechanical Specifications
Ultra-sorb Model MP tube capacity* Tubes lbs/hr kg/hr Uninsulated 18.1 1.5" Insulated 19.5 Uninsulated 34.9 2.0" Insulated 36.3 * If face height (B') is <17" (432 mm), consult DriSteem or see DriCalc for the correct calculation. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... - Page 7 * Panels with unit height more than 120" (3048 mm) have two-piece side flanges and are shipped with brackets for easy field assembly. Panels with unit height more than 93" (2360 mm) are shipped unassembled. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL...
-
Page 8: Supply And Drain Connections And Dimensions
Supply and drain connections and dimensions SUPPLY AND DRAIN CONNECTIONS AND DIMENSIONS FIGURE 6-1: P-TRAP WATER SEAL DIMENSIONS Table 6-1: Ultra-sorb condensate outlet Condensate piping for Ultra-sorb MP steam dispersion panel 3/4” (20 mm) minimum copper Evaporative steam Pressurized steam 1” (25 mm) -
Page 9: Connections And Dispersion Tube Detail
INSTALLATION Connections and dispersion tube detail CONNECTIONS AND DISPERSION TUBE DETAIL FIGURE 7-3: ULTRA-SORB MODEL MP STEAM INLET TYPES FIGURE 7-1: ULTRA-SORB MODEL MP STEAM INLET AND CONDENSATE OUTLET POSITIONS Flange Airflow OM-607-1b Hose OM-607-1a Steam inlet Coupling OM-7841 location ¾"... -
Page 10: Selecting The Location
The filter will remove visible moisture and become waterlogged. See the Caution "Installing the Ultra-sorb panel upstream from filter media" on page 21. • Do not place the Ultra-sorb panel where discharged visible mist will impinge directly on a metal surface. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 11: Air Handling Unit
• Location B is the second-best choice. However, conditions when both cooling and humidification is needed, the cooling coil will eliminate some moisture for humidification. • Calculated absorption distances assume even airflow across entire dispersion device. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 12: Mounting And Support
6" (150 mm). On larger Ultra-sorb installations, vertical channels may be required on both the inlet and outlet ends of the humidifier to provide proper support. See Figure 10-2. FIGURE 10-1: ULTRA-SORB MODEL MP INSTALLED INSIDE AN AIR HANDLER Air handler overall width Ultra-sorb overall width... -
Page 13: Horizontal Duct
Location C is the best choice. Air leaving a fan is usually very turbulent and can cause vapor to not absorb at the expected non-wetting distance. Allow for more distance if installing downstream from a fan. Calculated absorption distances assume even airflow across entire dispersion device. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 14: Mounting And Support
2" (50 mm) Pipe to drain size as required Ceiling line * This length of duct should have sealed seams and should be at least three times the height of the Ultra-sorb panel. OM-198 ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 15: Mounting In A Horizontal Duct
12" (305 mm). Do not puncture Header enclosure the header Note: To ensure proper drainage mount the panel level or slightly pitched towards the OM-7864 piping end of the panel. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... - Page 16 Seal all places where the Ultra-sorb installation hardware and fittings penetrate the wall of the duct. See Figure 14-1 below. FIGURE 14-1: ULTRA-SORB MODEL MP IN A HORIZONTAL AIRFLOW WITH ELECTRODE-TYPE HUMIDIFIER Sealant at joints...
-
Page 17: Pressurized Steam Application
2. Dashed lines indicate provided by installer. 3. Steam supply line to unit and piping are not included. 4. Mount the Ultra-sorb Model MP vertically (for horizontal airflow only). 5. For pressurized steam applications provide a 10" (255 mm) minimum water seal. See Table 6-1. -
Page 18: Piping From A Pressurized Steam Application
DRIEST STEAM (65 mm) To ensure driest steam, take humidifier steam off the top of the steam main (not Note: Pipe thread and flange tubing adapters the side or bottom). are available from DriSteem. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 19: Nonpressurized Steam Application
2. When mounting an Ultra-sorb in a duct, headers and flanges are mounted outside the duct. 3. Mount the Ultra-sorb Model MP vertically (for horizontal airflow only). 4. For nonpressurized steam applications provide a 5" (130 mm) minimum water seal. See Table 6-1. -
Page 20: Piping From A Non-Electrode-Type Evaporative Humidifier
OM-7855 to the tubing connection on the evaporative humidifier and to the Ultra-sorb DriSteem non-electrode- (see Figure 18-2). DriSteem can also provide threaded connections on the type evaporative evaporative humidifier and on the Ultra-sorb. For threading pipe connection humidifiers options, see DriSteem’s DriCalc sizing and selection software, available at FIGURE 18-2: HOSE CUFF INSTALLATION www. -
Page 21: Steam From An Electrode-Type Evaporative Humidifier
Hose cuffs are also available for connecting tubing. If specified when To prevent steam from escaping down the drain ordered, DriSteem can provide a threaded connection on the Ultra-sorb steam line, install a water seal or steam trap in the inlet. - Page 22 1400 2300 1043 1. Use DriSteem steam hose for best results. Other hose may have shorter 3. Insulate tubing to minimize loss of capacity and efficiency. life and may cause foaming in the evaporating chamber resulting in 4. Developed length of tubing equals measured length plus 50% of condensate discharge at the dispersion assembly.
-
Page 23: Operation
DriSteem’s DriCalc sizing and selection application, available media. If you must install upstream from filter media, consult DriSteem or at www. dristeem.com. Note that your current design conditions may vary from your local DriSteem representative for conditions used for system design. -
Page 24: Controls
(duct mounted) humidistat (Figure 15-1). Mount it 10' to 15' (3 to 4.5 m) downstream from the Ultra-sorb panel, and set it at 80 to 90% RH. FIGURE 22-1: ULTRA-SORB MODEL MP TYPICAL CONTROL WIRING 2-10 VDC REVERSE ACTING... -
Page 25: Startup
2. If steam is blowing out of the P-trap, it needs to be primed. 3. Verify the P-trap is tall enough to contain panel operating pressure (see page 15 or 17). 4. Duct static pressure > 2.5" ( 63.5 mm) wc may require a taller P-trap. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 26: Maintenance
• PVDF is inherently resistant to UV light. Indirect, low-intensity UV-C light from germicidal lamps will not cause the insulating material to degrade. • Do not tighten mounting clamps or fasteners to any part of the dispersion tube. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 27: Replacing Ultra-Sorb Model Mp Dispersion Tubes
5. Pull the tube out from the rubber grommet. 6. If the grommet shows any sign of wear or damage, replace it before reinstalling the dispersion tube. See Table 29-1 for replacement parts. Note: Grommets are provided with replacement tubes. ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 28: Troubleshooting
• See above. discharged • Air temperature in duct too low for steam • Raise duct air temperature. quantity being emitted Humidifier is noisy • Steam pressure too high • Reduce pressure. Continued ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... - Page 29 (dampers, turning vanes, etc.) in internal devices. duct • Add more dispersion tubes for shorter non-wetting distance. Consult DriSteem to determine the total number of tubes required. • Non-insulated duct passing through • Insulate ductwork. unheated area (duct surface temperature too...
-
Page 30: Replacement Parts
MAINTENANCE Replacement parts FIGURE 28-1: ULTRA-SORB MODEL MP REPLACEMENT PARTS OM-7890 OM-7854_rightside ULTRA-SORB MP INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... - Page 31 Grommet for 1½" (38 mm) dispersion tube 405895-150 Grommet for 2" (50 mm) dispersion tube 405895-200 Frame top, Ultra-sorb Model MP, split over, 144" (3658 mm) width Consult factory Frame top, Ultra-sorb Model MP, to 144" (3658 mm) width Consult factory Tubelet...
-
Page 32: Warranty
PROPERTY IN ANY WAY RELATED TO THE MANUFACTURE OR THE USE OF ITS PRODUCTS. The exclusion applies regardless of whether such damages are sought based on breach of warranty, breach of contract, negligence, strict liability in tort, or any other legal theory, even if DriSteem has notice of the possibility of such damages.
