3. Slide the receiver into the bracket with the 6-Pin in
circuit programing pins located vertically in the open end
of the bracket. Secure the receiver with a ¼" x 6" hex
head cap screw and a ¼" lock nut (See Figure 1-4).
TO
VIBRATOR
(Optional)
TO
PROGRAMMING
SPINNER

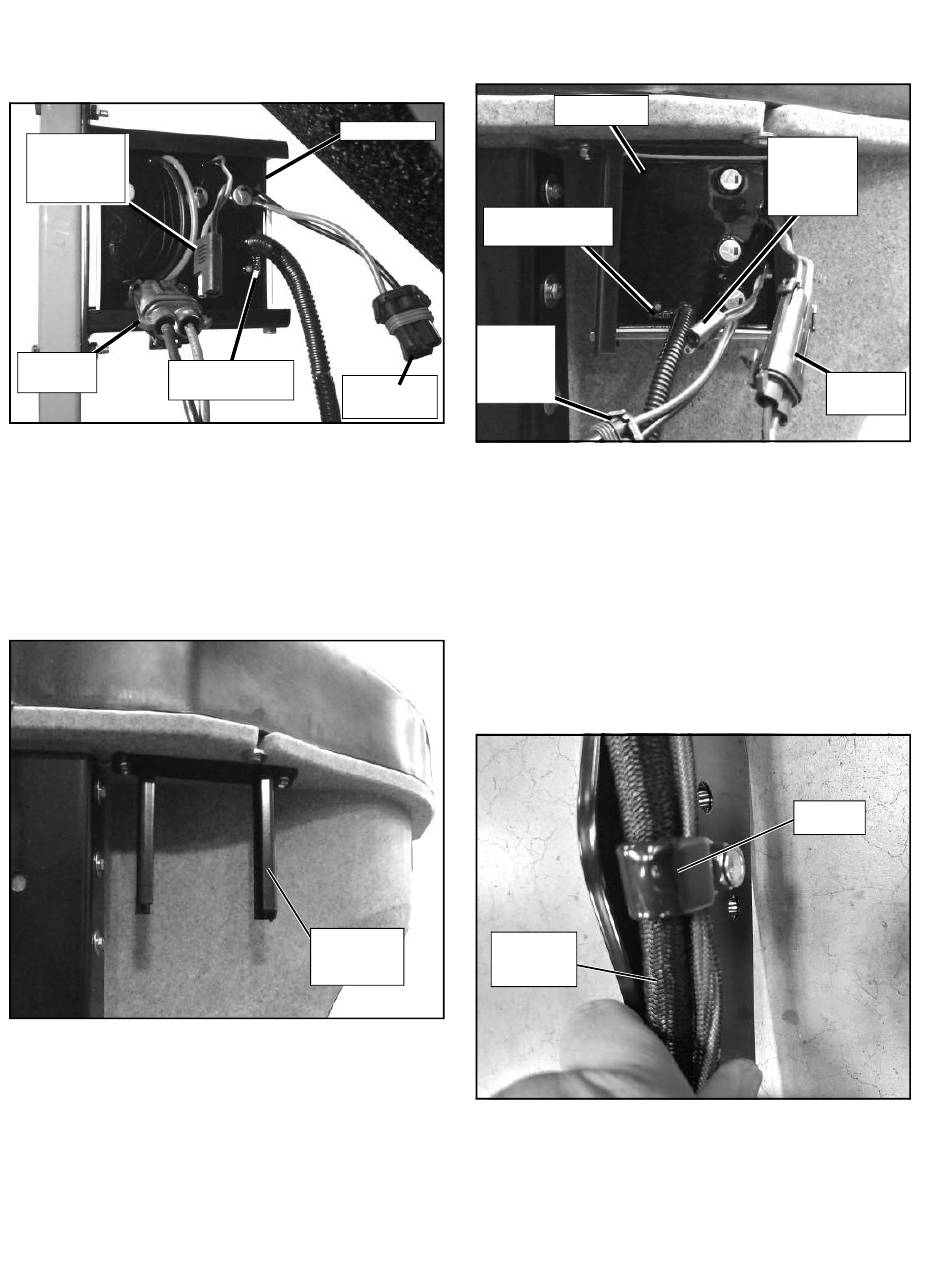

Figure 1-4
4. Plug the spreader spinner motor harness and vibrator
harness (optional) into the mating plugs on the receiver.

4 Cubic Foot Spreader

1. Remove the receiver bracket from the package and
place it under the top lip of the spreader hoper on the
driver's side (See Figure 1-5).
Figure 1-5
2. Secure the receiver by driving (2) 5/16" self-drilling
screws thru the holes in the bracket and into the hopper.
3. Slide the receiver into the bracket with the 6-Pin in
circuit programing pins located on the bottom. Secure the
receiver with (1) 1/4" x 6" hex head cap screw and (1)
1/4" lock nut (See Figure 1-6).
6
RECEIVER
PINS
TO TRUCK
- POWER IN
RECEIVER
BRACKET
4. Plug the spreader spinner motor harness and vibrator
harness (optional) into the mating plugs on the receiver
(See Figure 1-6).
RECEIVER
PROGRAMMING
PINS
TO
TRUCK -
POWER
IN
Figure 1-6

Control Harness Installation On Plow

1. Run the 10 pin connector harness on the receiver
unit over to the main power harness. Cable tie where
necessary to the main power harness. Ensure the control
wire harness is routed in the power harness clamp and
continue running with the main power harness. Leave
enough room to connect harness to vehicle harness.
Ensure the cable is clear of pinch points and latching
mechanism. Any excess cabling should be kept and tied
under the pump cover (See Figure 1-7).
MAIN
HARNESS
Figure 1-7
2. Attach the 10 pin dust cap from the control kit to the
end of the plow harness.
3. After all harnesses are in place and all electrical
connections have been made. replace the pump cover
and tighten the hardware which holds the cover in place.
TO
VIBRATOR
(Optional)
TO
SPINNER
CLAMP
