VEHICLE RECEIVER
LIGHT
INDICATION
GREEN FLASHING
LED
SOLID GREEN LED
SOLID RED LED
RED FLASHING LED
ProControl 2 Plus™ Transmitter
Mounting Instructions
Your ProControl 2 Plus™ transmitter comes with a cradle
for mounting the transmitter on the dash.

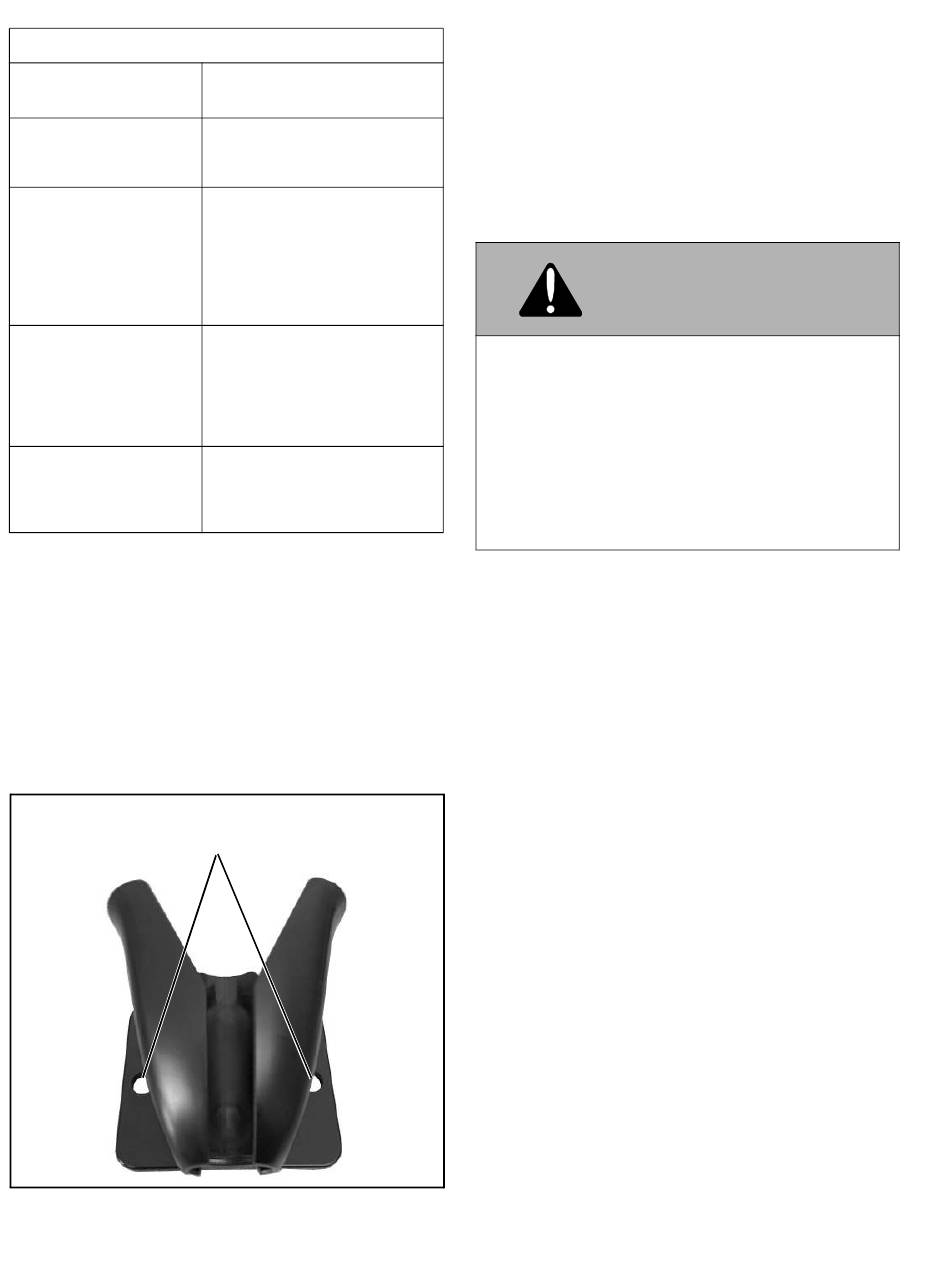

Fasten the cradle in the desired location using the 2 screw
holes. (See Figure 1-17).
NOTE: Be certain control mounting does not obstruct
items that are critical to safely operating your vehicle.
MOUNTING
LOCATIONS
Figure 1-17
14
DESCRIPTION
PLOW TRANSMITTER ON
AND CONNECTED WITH
PLOW RECEIVER
SENSING A MARKER,
TURN, LOW BEAM, HIGH
BEAM, OR DRL SIGNAL,
AND PLOW RECEIVER
ATTACHED AND
POWERED, BUT PLOW
TRANSMITTER IS OFF
SENSING A MARKER,
TURN, LOW BEAM, HIGH
BEAM, OR DRL SIGNAL,
BUT NO PLOW RECEIVER
ATTACHED AND
POWERED
PLOW TRANSMITTER IS
OFF AND NO MARKER,
TURN, LOW BEAM, HIGH
BEAM, OR DRL IS SENSED
SCREW
Using the ProControl 2 Plus™ to Aid in
Mounting and Removing the Snow Plow
The ProControl 2 Plus™ transmitter can be used near the
snow plow when mounting or removing the plow with the
aid of the power jackstand.
NOTE: For proper procedure in mounting and removal of
the snow plow, refer to your Sno-Way Plow Owner's Man-
ual.
WARNING
When using the ProControl 2 Plus™ transmitter
near the plow, be especially careful of the
movement of any plow components when any
switch on the transmitter is actuated. Stand
clear of the snow plow at all times to avoid
being struck by any plow parts.
INDICATES A HAZARDOUS SITUATION WHICH,
IF NOT AVOIDED, COULD RESULT IN DEATH
OR SERIOUS INJURY.
Disconnect the cable for the ProControl 2 Plus™
transmitter at the harness connection inside the vehicle
cab and take the controller to the front of the vehicle.
Disconnect the plow control harness from the vehicle
control harness at the connector at the front of the vehicle.
Connect the ProControl 2 Plus™ transmitter to the plow
control harness. The ProControl 2 Plus™ transmitter can
now be used just as it is normally used in the cab of the
vehicle.
When plow mounting or removal is completed, reconnect
the ProControl 2 Plus™ transmitter to the vehicle harness
connector in the cab. Connect plow harness to truck
harness or place protective caps on truck and plow
harnesses.

Storage

Your receiver module is equipped with male and female
connectors. When power is no longer connected to the
plow, plug the male into the female connector for storage.
Your vehicle harness is also equipped with male and
female connectors. Once the plow is disconnected, plug
the male into the female connector for storage.

Wiring Schematics

ProControl 2 Plus™ system schematic diagrams are
located in your products Installation & Owner's Manual.
